TRANSAXLE TA6300 AMT
35

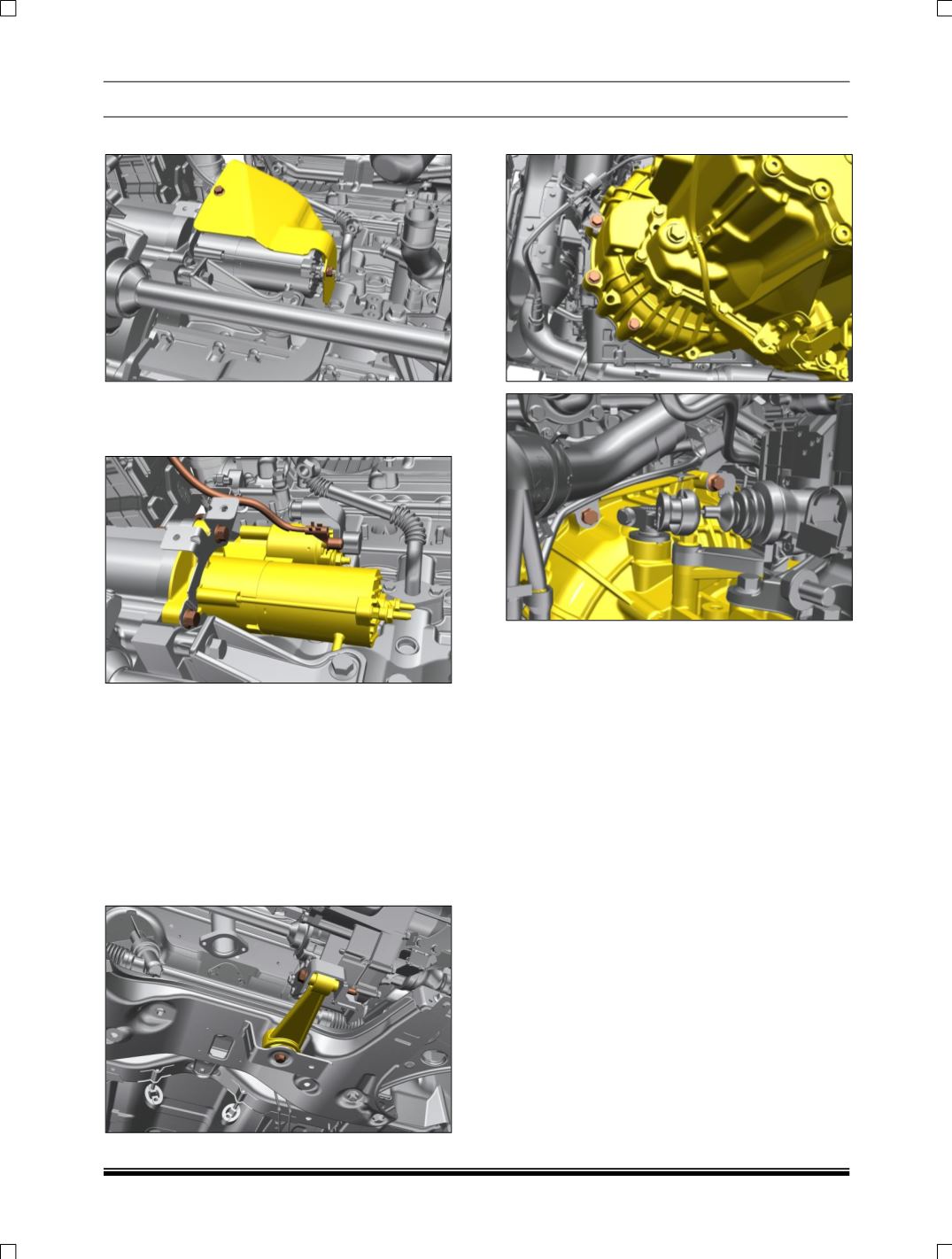

22. Remove heat shield of starter motor.
23. Remove electrical connection & its three
mountings from starter motor & take out the
same.
24. Give support from bottom side of Engine
Assembly.
25. Loosen mounting bolts of clutch housing.
26. Remove fuel line supporting bracket from
clutch housing.
27. Disconnect high-pressure hose assy. from
clutch release lever.
28. Remove
C-Bracket
mountings
from
Subframe assembly & Gear box also take
out C-mounting bracket.
29. Remove hex flange bolt on gear box housing.
30. Finally take out Gear box Assembly with
AMT Kit from vehicle.
INSTALLATION:
Follow the reverse procedure of Assembly of
Transaxle on Vehicle.
