TRANSAXLE TA6300 AMT

44

INPUT SHAFT ASSEMBLY

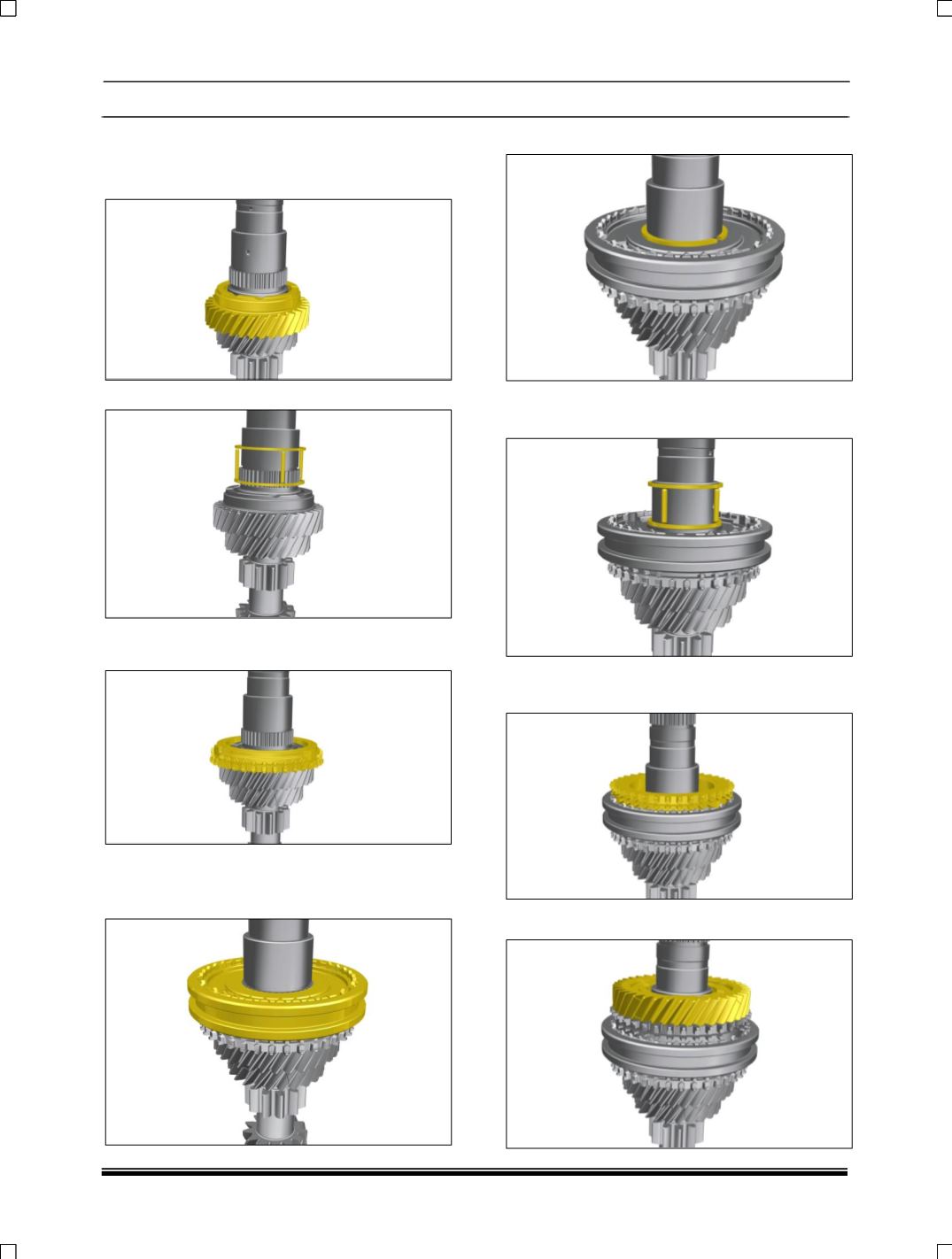

3rd / 4th SYNCHROPACK ASSEMBLY:

1. Place the 3rd gear on input shaft.

2. Place the needle cage 3rd gear on input shaft.

3. Place the synchro cone (3rd /4th /5th /6th) on

3rd gear.

4. Place the engaging gear 3rd/ 4

th

Assy.such

that the smaller groove is upwards and

assemble.

5. Assemble the snap ring on Engaging gear.

6. Place the needle cage 4

th

gear on shifter

sleeve.

7. Place the synchro cone (3rd /4th /5th /6th) on

input shaft.

8. Place the 4th gear on input shaft.
