TRANSAXLE TA6300 AMT
42

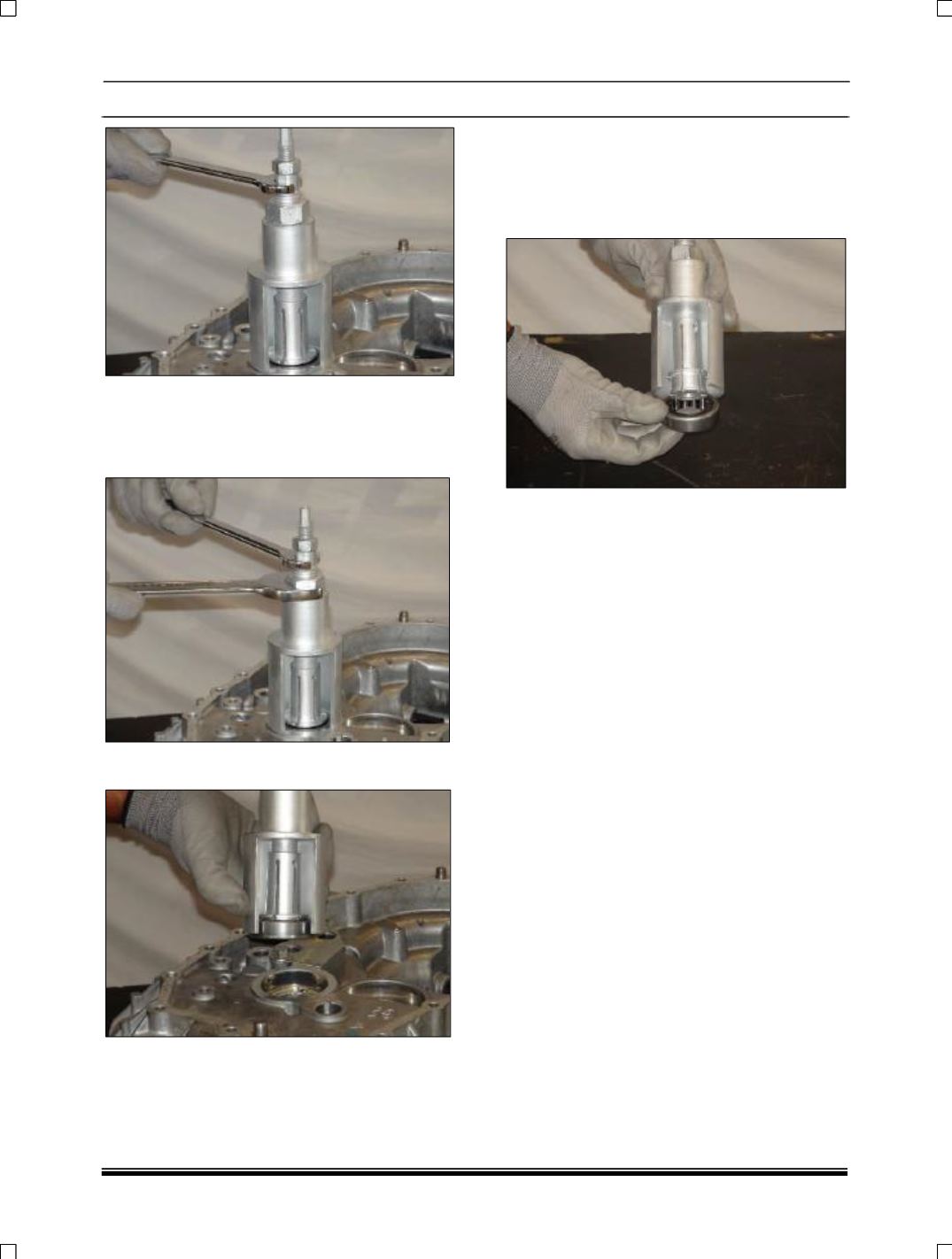

Use the open-end spanner 30 mm and turn the
pulling nut clockwise, do not allow anchoring
shaft to turn along with pulling nut.
It will start to pull the bearing out from the
casing.
Turn the pulling nut (30 mm) till the bearing
comes out completely from the casing.
Once the bearing comes out, unlock the
anchoring shaft by turning the locking nut
anticlockwise on the top and slowly tap on the
locking stud down to unlock the bearing from
anchoring body and to remove bearing from
the tool.
NOTE: SHIMS SHOULD NOT BE REUSED.
NOTE:
1. Apply anabond 112 on threads of all fasteners
2. Apply silicon liquid gasket anabond 690 on
housing interface.
3. The chips collected by magnetic drain plug,
are to be removed at the time of every oil
change.
4. Keep inner and outer races of taper roller
bearing in sets.
5. Use sealing anaerobic compound for all oil
seals outer diameter.
6. For oil seals of input drive shaft and bellows
use anabond 112.
