TRANSAXLE TA6300 AMT
34

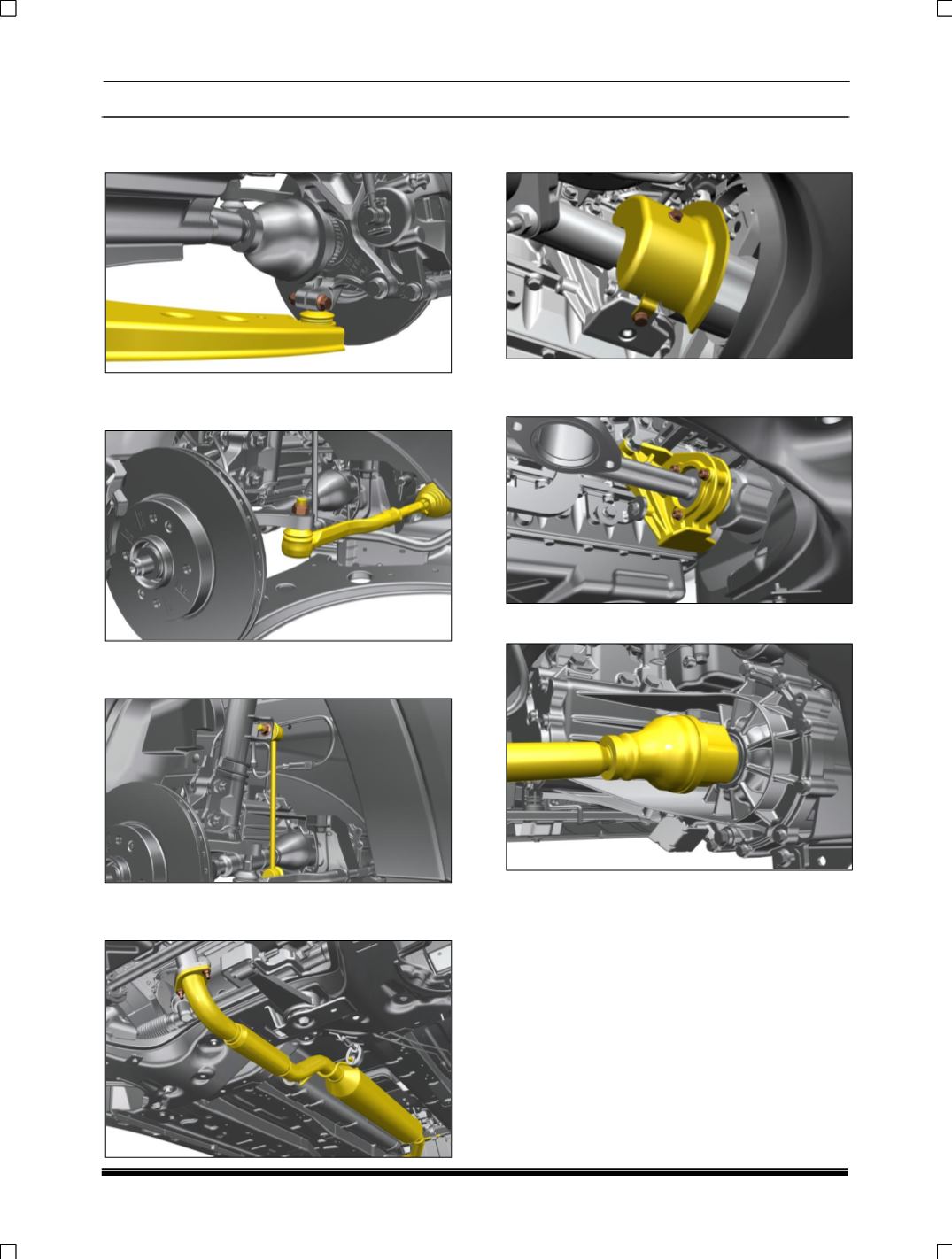

15. Remove stub axle ball joint Mounting &
Loosen Lower Control Arm on LH & RH side.
16. Remove ball joint (steering rack) from
steering knuckle from both sides.
17. Remove vertical link mountings on
suspension rod for both RH & LH sides.
18. Remove pre silencer Assy with pipe, front &
outlet pipe.
19. Remove 2 mtg bolt of intermediate shaft heat
shield & take out heat shield.
20. Remove 3 allen bolt of intermediate shaft &
take out Drive shaft from driver side.
21. Remove Drive shaft from co-driver side.
NOTE:
C
are should be taken not to damage driveshaft
oil seal and its boots (do not use hammer)
.
CAUTION:
Do not pull drive shaft excessively as the
plunge joint will come out of housing and
damage the boot Pry. Plunge joint housing for
taking out joint out of splines. Do not place the
CV drive shaft on rough / uncleaned surfaces.
This might damage the drive shaft boot.
