NEXON BS VI - SERVICE MANUAL

TRANSAXLE TA6300 AMT

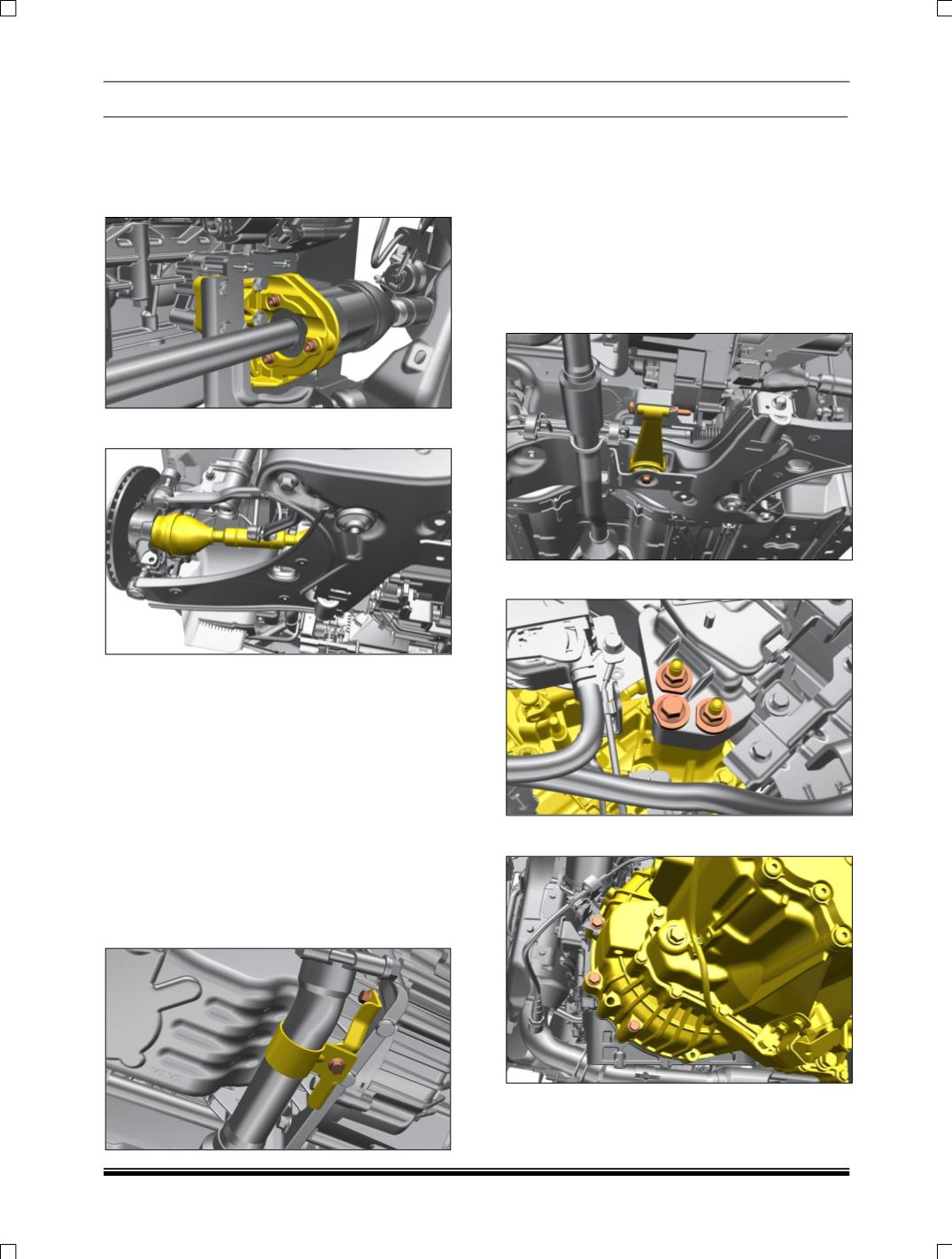

20. Disconnect gear shifter cables.

21. Remove 3 allen bolt of intermediate shaft &

take out Drive shaft from driver side/Engine

side.

22. Remove Drive shaft from co-driver side.

NOTE:

are should be taken not to damage driveshaft

oil seal and its boots (do not use hammer)

CAUTION:

Do not pull drive shaft excessively as the

plunge joint will come out of housing and

damage the boot Pry. Plunge joint housing for

taking out joint out of splines. Do not place the

CV drive shaft on rough / uncleaned surfaces.

This might damage the drive shaft boot.

23. Remove Exhaust Front pipe mounting

Bracket on silencer support assembly to

make accessibility for Hex Flange bolt on

gear box.

24. Give support from bottom side of Engine

Assembly.

25. Loosen mounting bolts of clutch housing.

26. Remove fuel line supporting bracket from

clutch housing.

27. Disconnect high-pressure hose assy. from

clutch release lever.

28. Remove

C-Bracket

mountings

from

Subframe assembly & Gear box also take out

C-mounting bracket.

29. Loosen the B- mountings

30. Remove hex flange bolt on gear box housing.
