1.5L REVOTORQ BS VI ENGINE

166

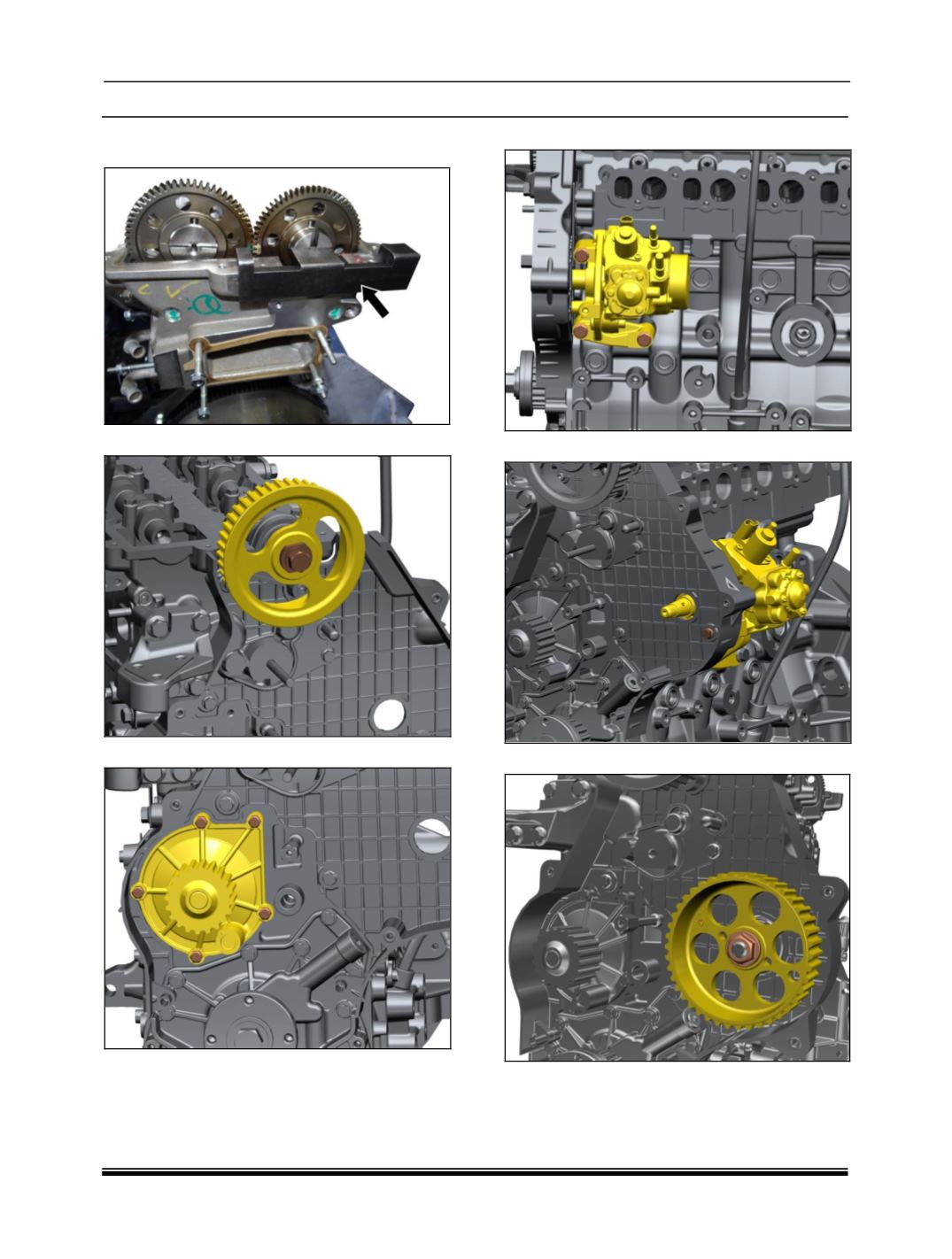

7. Lock the exhaust camshaft rotation using the

special tool.

8. Install the timing gear camshaft pulley.

9. Install the water pump assembly.

10. Install the H.P. pump assembly.

11. Install the front mounting bolt of H.P. pump.

12. Install the timing gear on the H.P. pump.
