1.5L REVOTORQ BS VI ENGINE
172

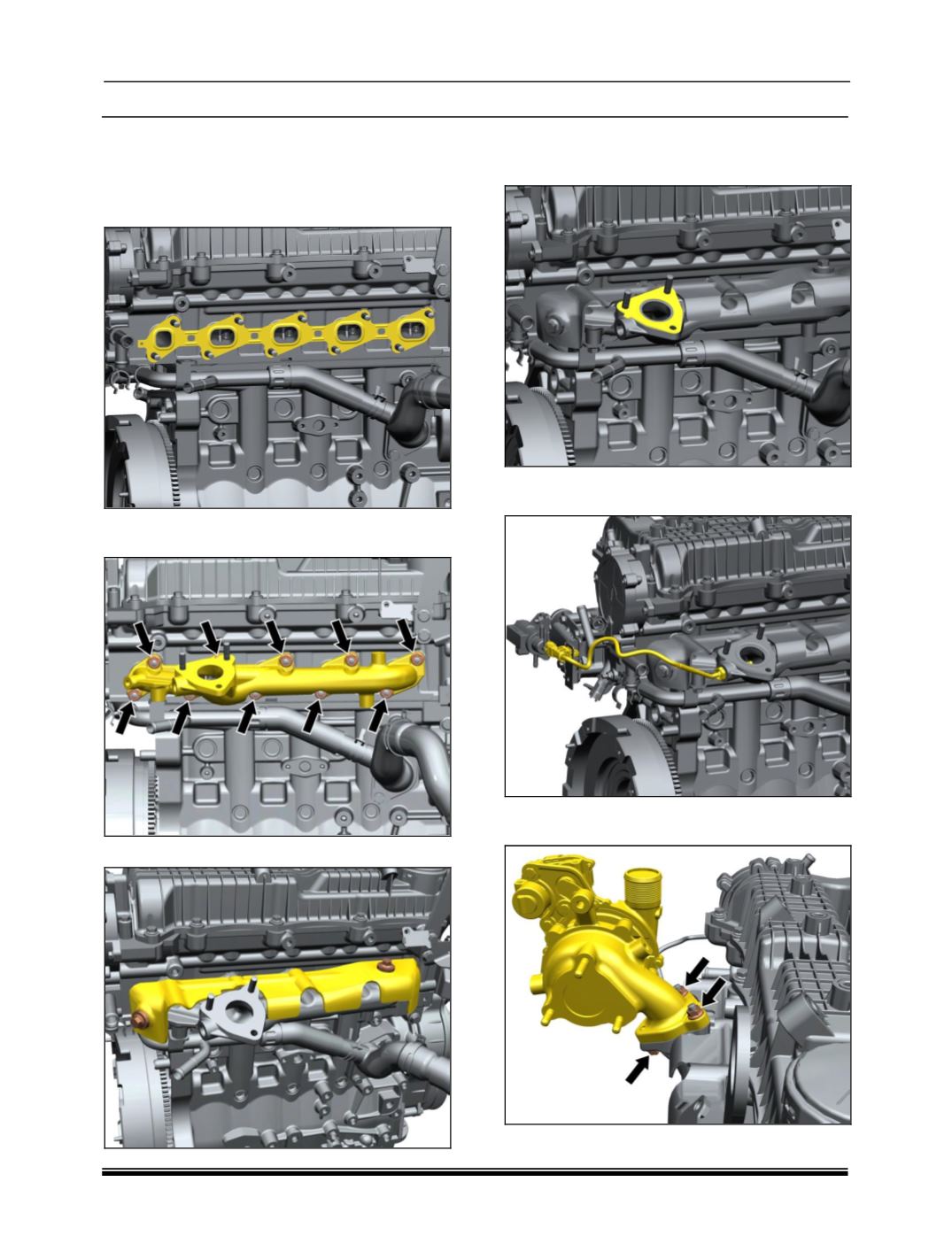

x. FITMENT OF EXHAUST MANIFOLD AND
OTHER COMPONENTS
1. Fit the exhaust manifold gasket. Make sure to
use new gasket when installing exhaust
manifold.
2. Install the exhaust manifold fasten the
mounting fasteners to the specified torque.
3. Install the exhaust manifold heat shield.
4. Place the gasket on the mounting stud of
turbocharger. Make sure to use new gasket
when installing.
5. Install the temperature sensor exhaust
manifold.
6. Install the turbo charger assembly along with
the mounting fatners.
