1.5L REVOTORQ BS VI ENGINE
138

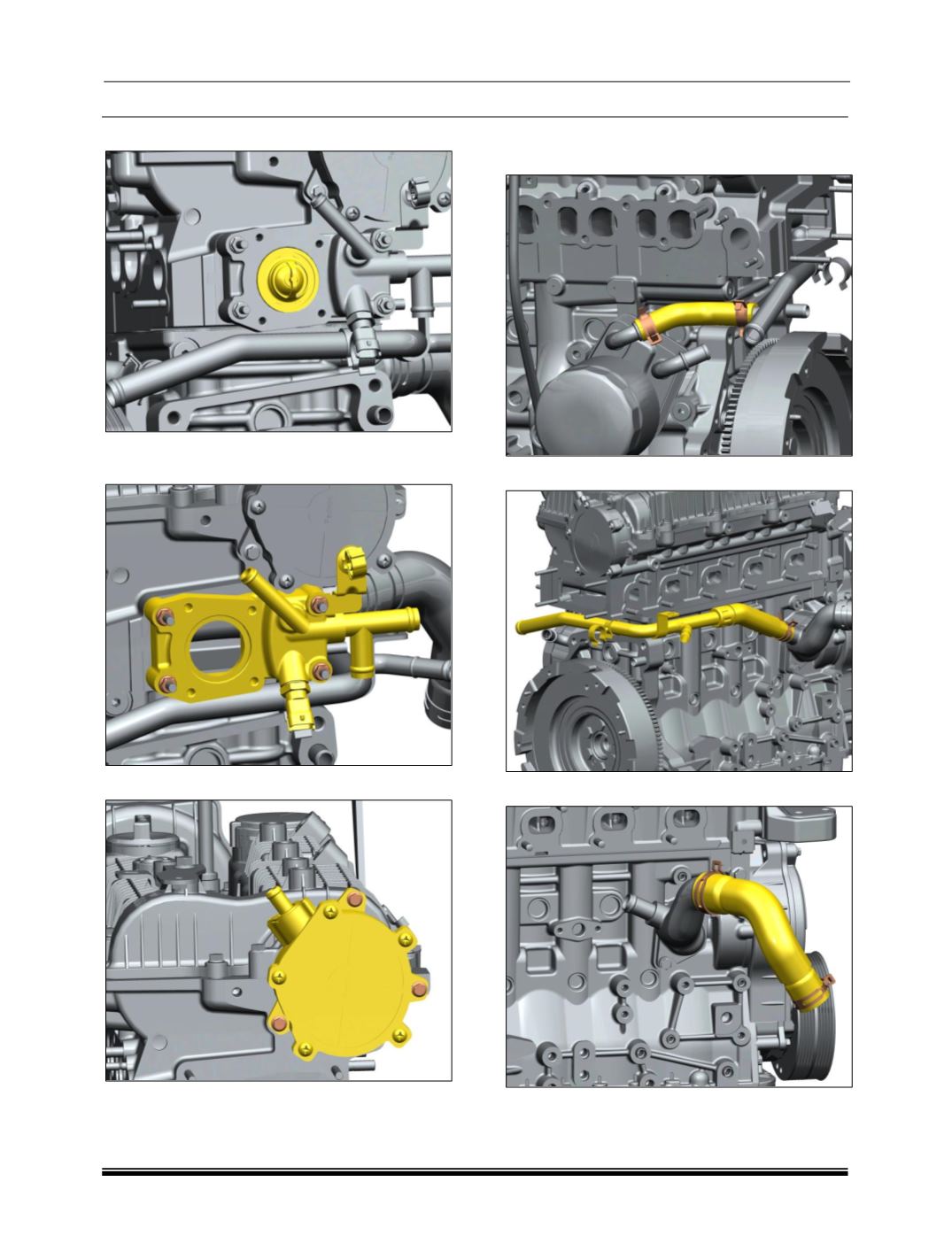

3. Remove the thermostat.
4. Remove the water box along with coolant
temperature sensor.
5. Remove the vacuum pump.
v. REMOVAL OF OIL COOLER AND HOSES
1. Remove the oil cooler outlet hose.
2. Remove the coolant return line.
3. Remove the water intake elbow hose.
