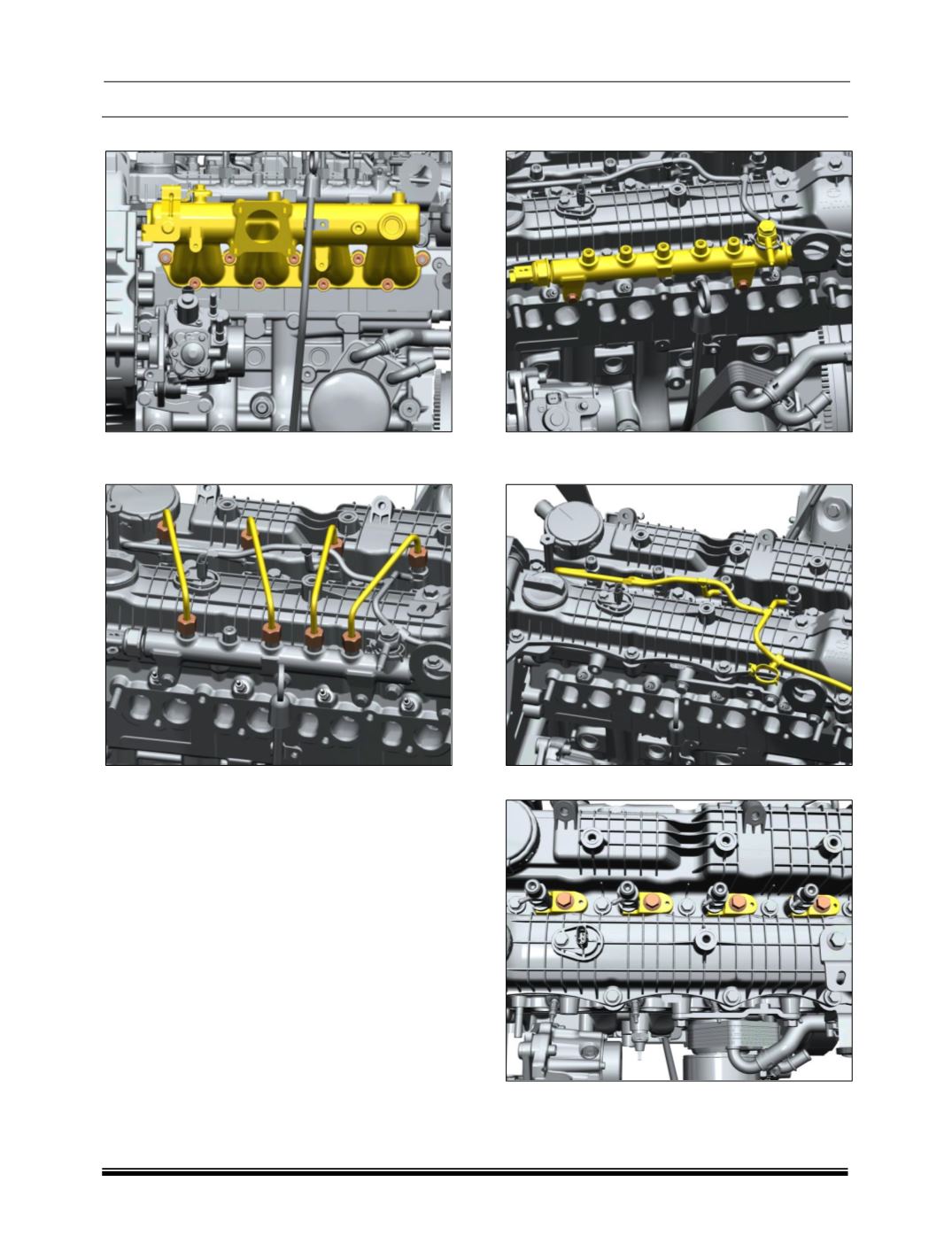

9. Remove the intake manifold.
10.Remove the high pressure fuel lines connecting
the fuel injectors.
NOTE
Cover the opening of the fuel rail with suitable
plugs.
After removing the HP pipes cover the injectors
and fuel lines opening with suitable caps.
Do not reuse the HP pipes once removed; use
new HP pipes at the time of assembly.
11.Remove fuel rail.
12.Remove the back leak hose connected to the
fuel injector.
13.Remove the fuel injector claws.
