D. COOLING SYSTEM
ON VEHICLE REPAIRS
A. INTERCOOLER

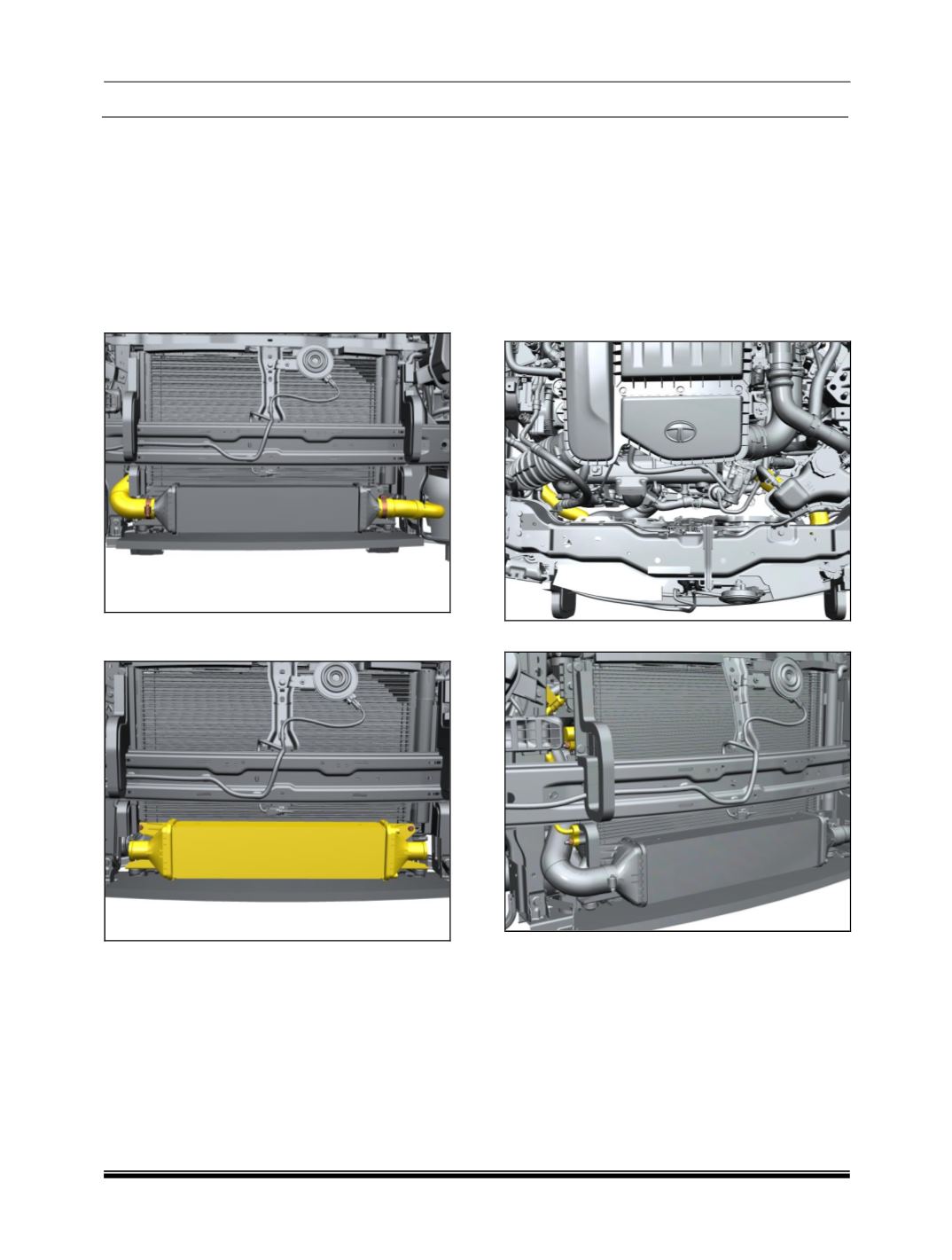

REMOVAL
1. Remove the front bumper.
(Refer front
bumper removal procedure from Body
section).
2. Loosen spring clamp and disconnect the
intercooler inlet and outlet hoses.
3. Loosen and remove the 2 bolts and take out
the intercooler assembly.
FITMENT
For fitment follow removal procedure in reverse.
B. RADIATOR
REMOVAL
1. Drain the coolant and remove the coolant tank.
(For procedure refer "Coolant replacement" in
Engine Maintenance section)
2. Remove the front bumper.
(Refer front bumper
removal procedure from Body section).
3. Disconnect the electrical connections of the
cooling fan shroud.
4. Remove radiator inlet and outlet hoses.
5. Disconnect the refrigerant inlet and return lines
CAUTION
Never leave the condenser lines open
immediately cover them with caps, otherwise the
desiccant which is in-built in the condenser may
absorb the moisture from surrounding air and get
contaminated
