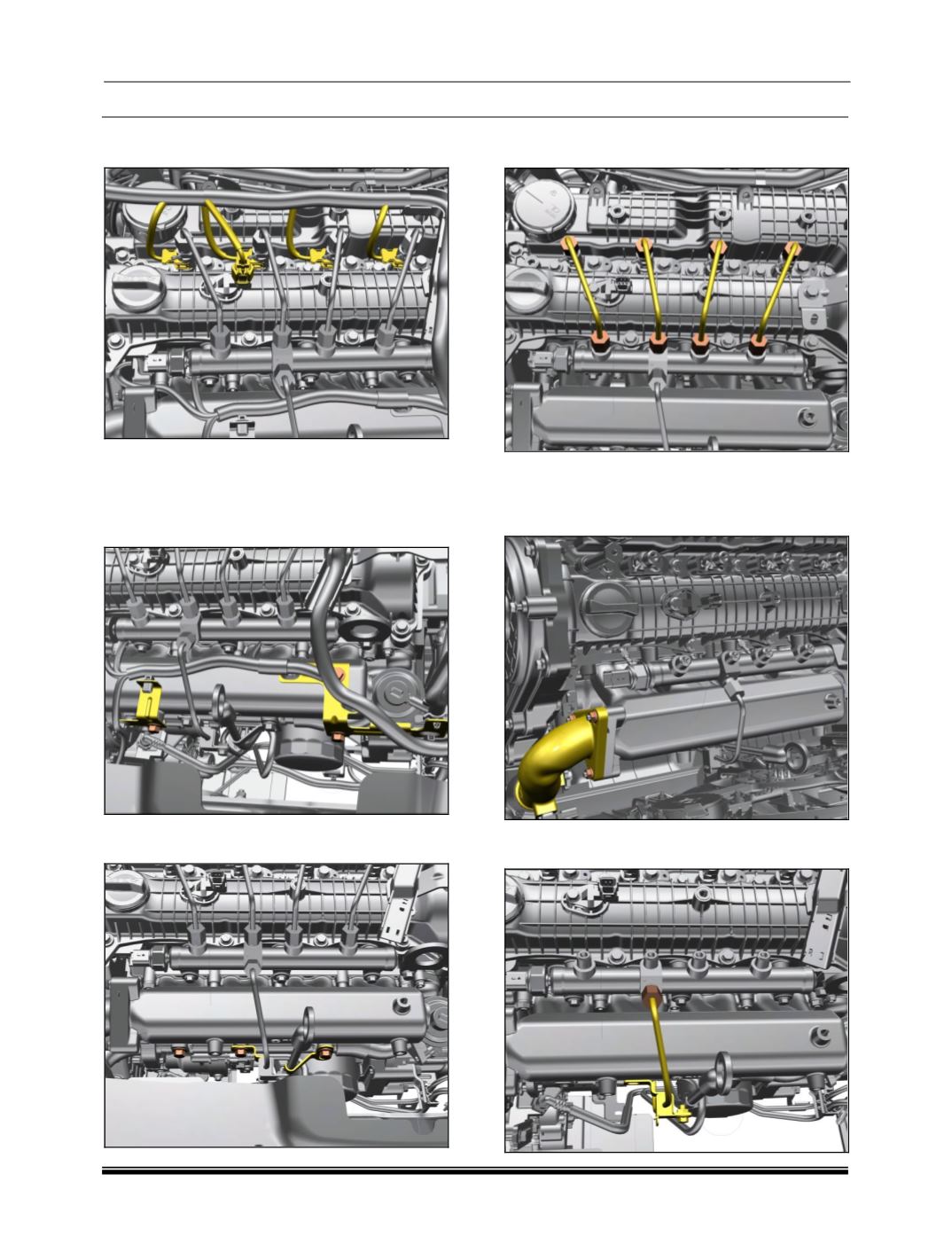

4. Disconnect the electrical connection of the
injector and the cam angle sensor.
5. Remove the back leak hose connected of the
fuel injectors.
6. Remove the mounting bolts of the harness
support bracket on the intake manifold and
take out the harness.
7. Remove the mounting bolts of the support
brackets mounted on the intake manifold.
8. Loosen and remove the H.P. fuel lines
connecting fuel rail and the fuel injectors.
9. Loosen and remove the mounting fasteners of
the air intake elbow connected to the air
intake manifold. Disconnect the air intake
elbow.
10. Disconnect the fuel pressure line of the fuel
rail.
