1.5L REVOTORQ BS VI ENGINE
106

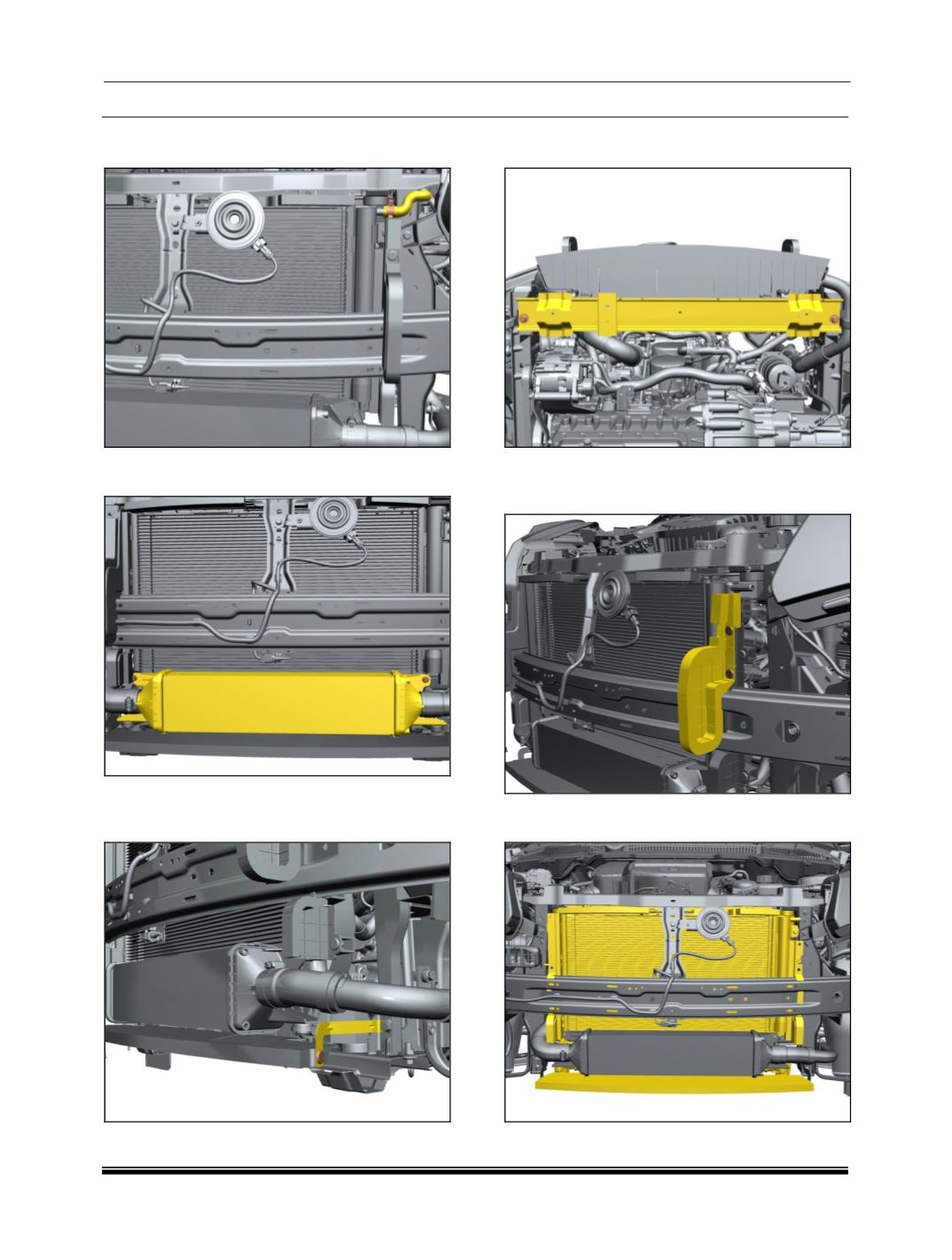

6. Disconnect the overflow tube from radiator to
auxiliary tank.
7. Remove mounting bolts and set the intercooler
aside.
8. Remove the sealing rivets of the bottom seal
support bracket
(LH side illustrated follow
procedure similarly for RH side)
9. Remove the bottom member of radiator
support.
10.Remove the front condenser sealing.
(LH side
illustrated
follow procedure similarly for RH
side)
11.Tilt the radiator inwards and slide down the
radiator assembly along with the condenser.
