1.2L REVOTRON ENGINE
150

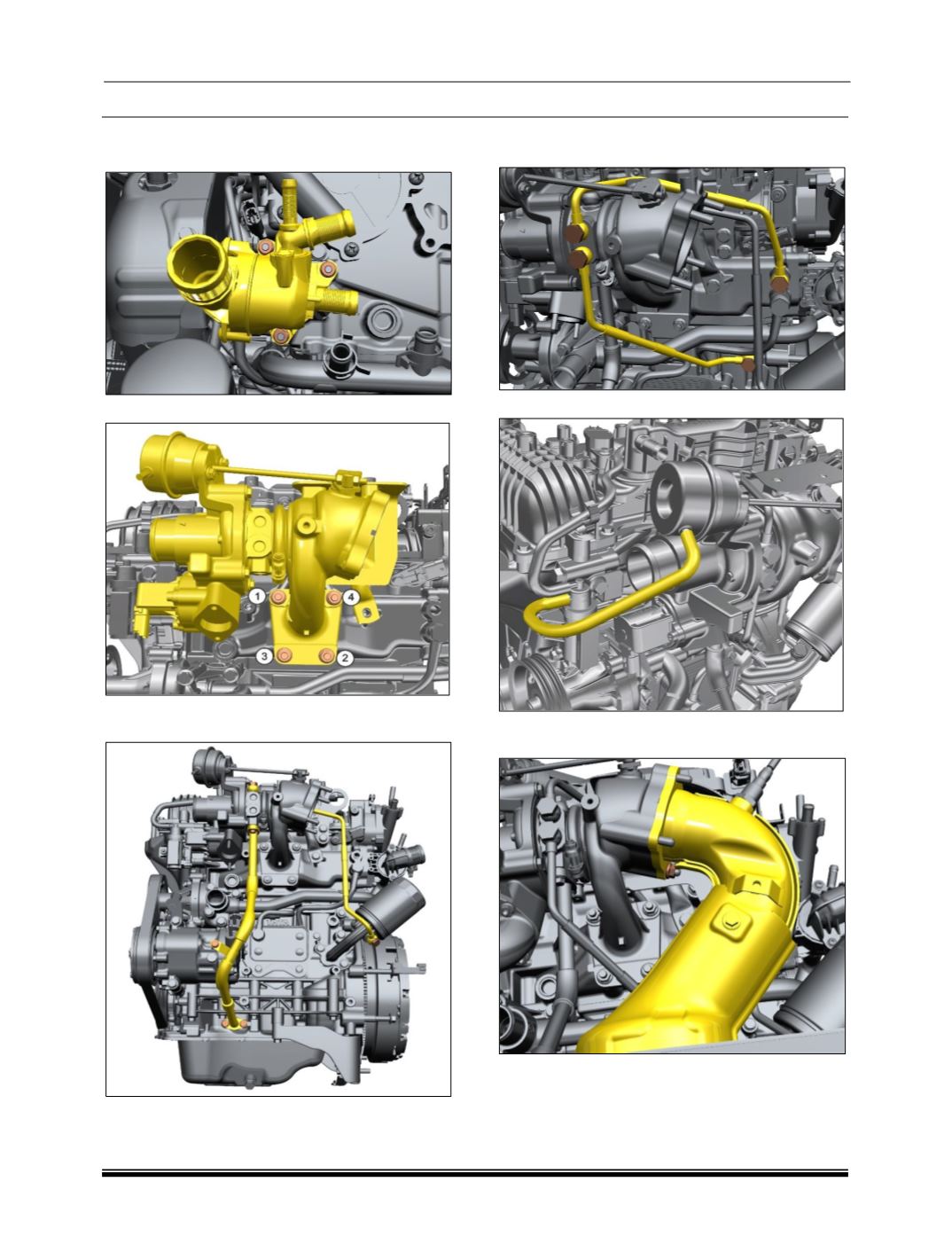

3. Install the thermostat and tighten nuts on
housing.
4. Install the turbocharger assembly in sequence.
5. Connect and install the turbocharger oil intake
and return lines.
6. Connect and install the turbocharger coolant
intake and return lines.
7. Fit the hose connecting turbocharger to EVRV.
8. Locate the CCC to the turbocharger outlet then
mount the upper mounting bolts of the CCC.
