1.2L REVOTRON ENGINE

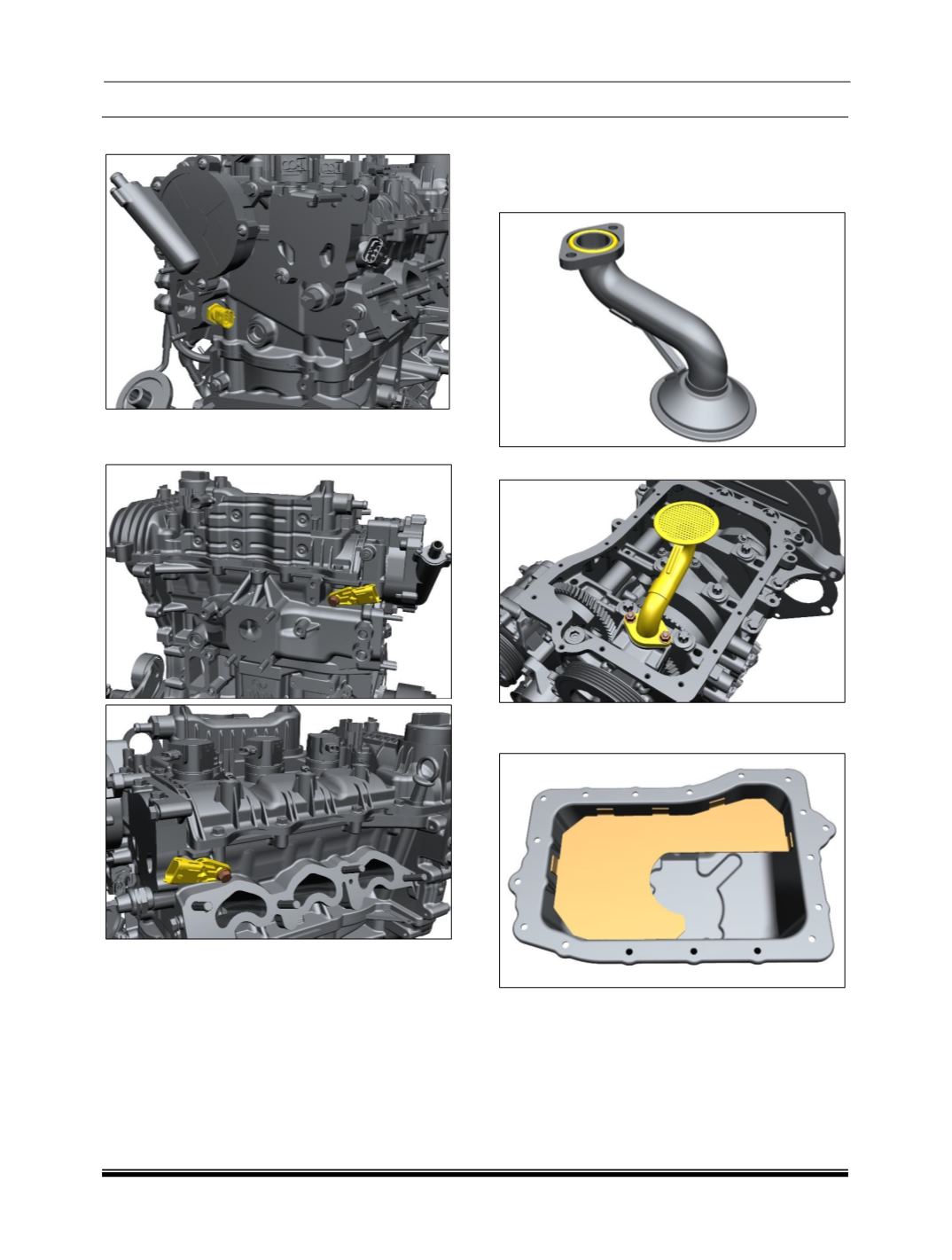

148
4. Install the coolant temperature sensor.
5. Install cam phase angle sensor from both
sides.
VIII. Assembly of Oil Sump
1. Rotate the engine at 1800 for fitment of oil
sump.
2. Fit the O-ring inside the oil strainer assembly.
3. Refit the Lube Oil Strainer along with O-Ring.
4. Spread the liquid sealant on oil sump without
spilling the sealant in holes.
