ELECTRICAL
131
E. FUSE AND RELAY REPLACEMENT
Removal

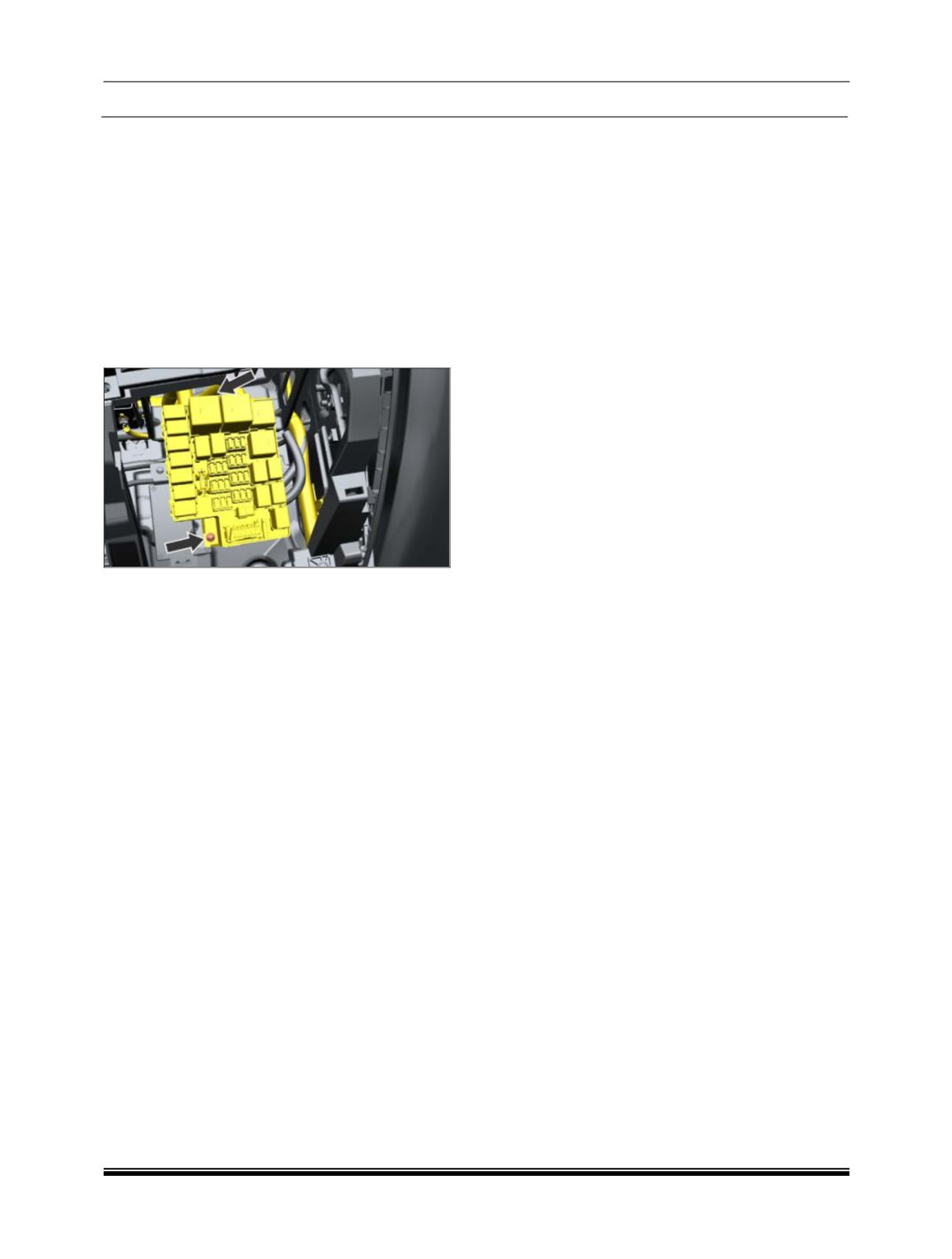

Fuse box is located behind the glove box. To
access the fuse box, Cover Steering Column
needs to be removed first.
Remove
1. Remove the Cover Steering Column (refer for
body draft for removal)
2. Remove the mounting screw and Pull out the
fuse from fuse box modules from available
cutout as shown below.
3. If fuse is blown, replace with same rating fuse
from spare fuses provided in engine
compartment fuse box
4. Fit back the glove box by following reverse
procedure.
REPLACEMENT PROCEDURE FOR RELAYS
1. Turn the ignition key to lock position.
2. Check each relay, if faulty replace with same
rating relay.
3. If replaced relay of same rating is not working
properly, there is probably a serious electrical
problem.
REPLACEMENT PROCEDURE FOR FUSES
1. Turn the ignition key to lock position.
2. Check each fuse and look for broken/open
controls link wire inside the fuse. If it is burnt,
replace it with one of the spare fuses of same
rating.
3. If replaced fuse of same rating burns out
then, there is probably a serious electrical
problem.
Note: Use designated fuses only
.
CIRCUIT SCHMATICS
Refer Book 3
DTCs
Refer Book 2
