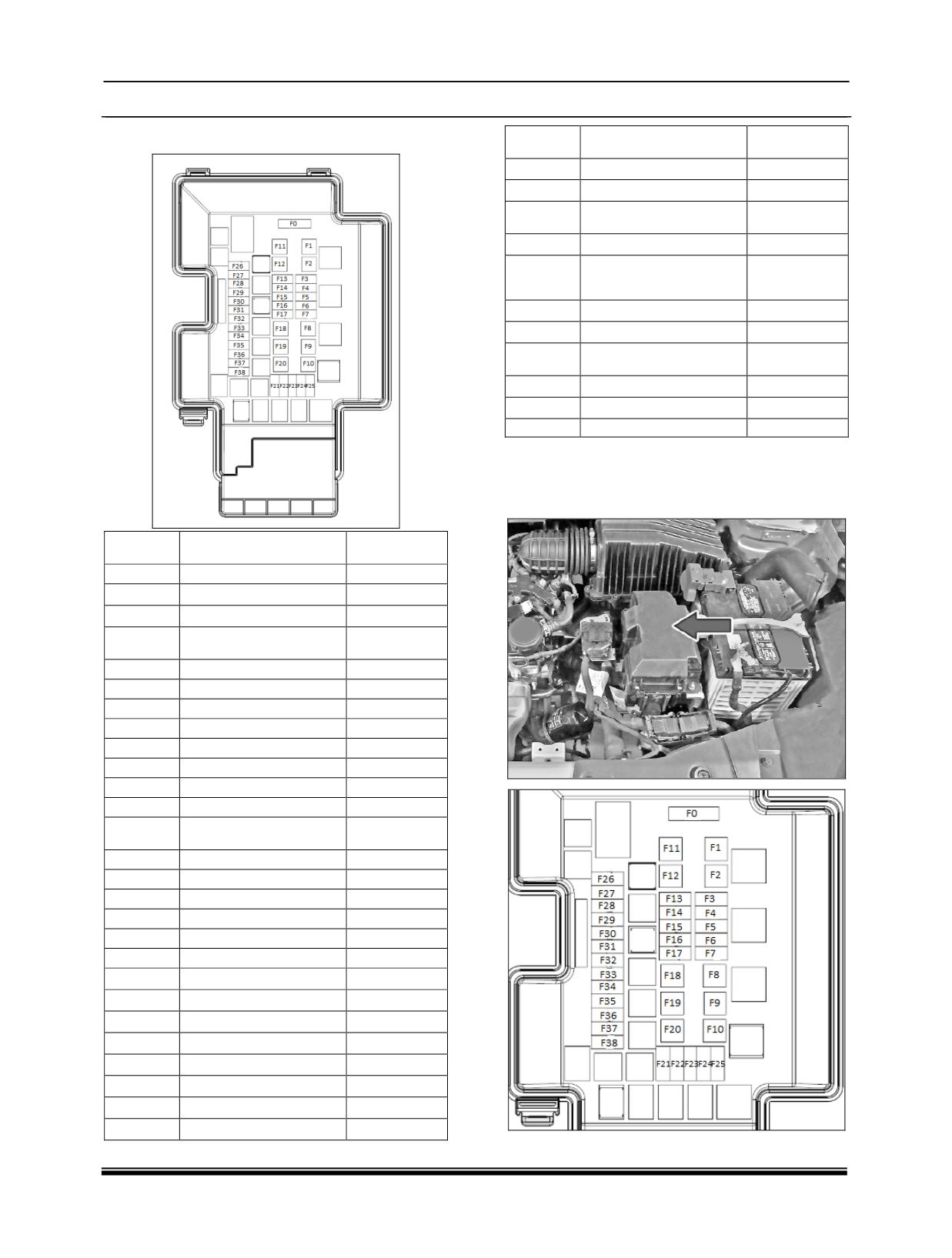

Fuses - Engine Compartment (Diesel)
Fuse
No.
Function
Fuse Rating
F0
-
-
F1
COCKPIT F/B SUPPLY
60A
F2
RADIATOR FAN-1
40A
F3
STARTER SOLENOID
BATT
25A
F4
-
-
F5
-
-
F6
-
-
F7
-
-
F8
HEAD LAMP/TCU
60A
*
F9
GLOW PLUG
60A
F10
EPAS
60A
*
F11
RADIATOR FAN-2
40A
F12
UNDER BONNET F/R
BOX
60A
F13
EMS BATT
10A
F14
COMPRESSOR
10A
F15
ABS ECU BATT
25A
F16
HORN BATT
15A
F17
BRAKE LAMP BATT
10A
F18
ABS PUMP
40A
F19
INTERIOR F/B BATT
60A
F20
IGNITION LOAD
60A
F21
-
-
F22
H/L HIGH RH
10A
F23
H/L HIGH LH
10A
F24
ABS ECU IGNITION
5A
*
F25
GLOW PLUG FB
5A
F26
-
-
F27
EMS RELAY COILS &
SENSORS
15A
F28
EMS ECU SUPPLY
20A
F29
-
-
F30
FRONT WIPER
MOTOR
20A
*
F31
RR WIPER
10A
*
F32
STARTER MOTOR
FEEDBACK
5A
F33
RELAY COILS*
5A
F34
-
-
F35
REVERSE
LAMPS/BRAKE SWITCH
10A
F36
H/L LOW LH
10A
F37
H/L LOW RH
10A
F38
-
-
Note:
*
- if equipped
Fuses - Engine Compartment (Petrol)
