ELECTRICAL
130

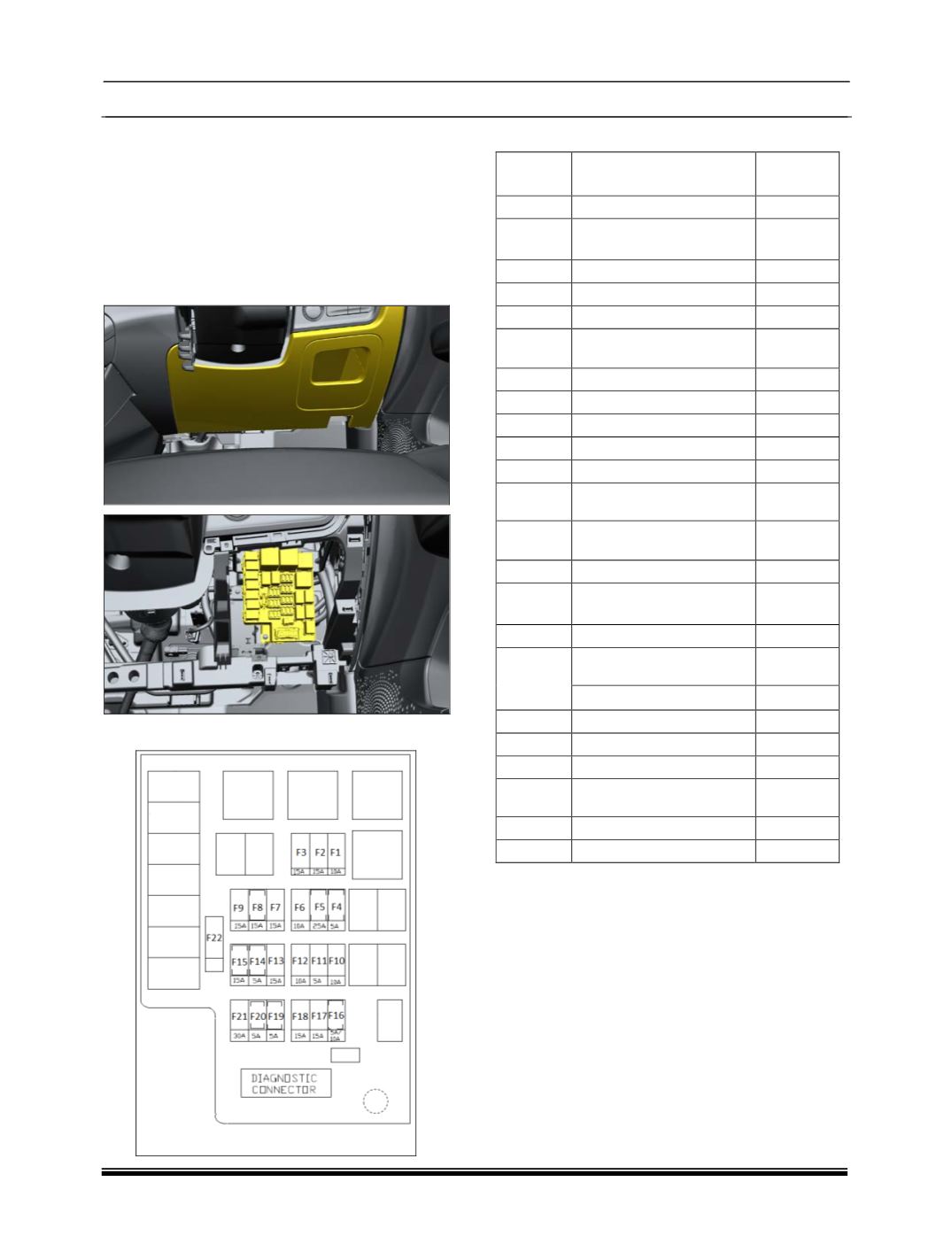

D. CABIN FUSE AND RELAY BOX
This fuse box is part of Cabin wiring harness. For
details refer the below fuse box sticker fitted on
dashboard inside the Cover Steering Column. For
other pin out details of fuse box refer the power
distribution II circuit schematics.
LOCATION
Behind Cover Steering Column
CABIN FUSE AND RELAY BOX DETAILS
Fuse
No.
Function
Fuse
Rating
F1
TAILGATE RELEASE
10A
F2
TRANSIST/INFOTAINM
ENT
20A
F3
ACC BATT
15A
*
F4
ACCESSORIES FUSE
5A
*
F4
PEPS/BLOWER RLY
5A
*
F5
HEATED REAR
SCREEN BCM
25A
F6
HVAC/ FATC BATT
10A
F7
BCM2- BASE/MID BCM
15A
*
F8
BCM3-MID BCM
15A
F9
BCM1-BASE/MID BCM
15A
F10
IGN FUSE-2
10A
F11
IMMOB/EPAS/PEPS-
IGN
5A
F12
RESTRAINTS
CONTROL MODULE
10A
F13
POWER SOCKET1
15A
*
F14
MIRROR ADJUST
MOTOR
5A
*
F15
POWER SKT
15A
*
F16
PEPS/ESCL ECU-
BATT
10A
RELAY COILS
5A
F17
CLUSTER / OBD/IMMO
15A
F18
CDL
15A
*
F19
KEY IN
5A
*
F20
AC BLOWER
POSITION
5A
F21
BLOWER MOTOR
30A
*
F22 RPAS
5A
