ELECTRICAL
129
Fuse
No.
Function
Fuse Rating
F0
-
-
F1
COCKPIT F/B
SUPPLY
60A
F2
RADIATOR FAN-1
40A
F3
STARTER SOLENOID BATT
25A
F4
-
-
*
F5
FUEL PUMP BATT
15A
F6
-
-
F7
-
-
F8
HEAD LAMP/TCU
60A
F9
-
-
F10
EPAS
60A
*
F11
RADIATOR FAN
40A
F12
UNDER BONNET F/R BOX
60A
F13
EMS BATT
10A
F14
COMPRESSOR
10A
F15
ABS ECU BATT
25A
F16
HORN BATT
15A
F17
BRAKE LAMP BATT
10A
F18
ABS PUMP
40A
F19
INTERIOR F/B BATT
60A
F20
IGNITION LOAD
60A
*
F21
IGNITION COIL
15A
F22
H/L HIGH RH
10A
F23
H/L HIGH LH
10A
F24
ABS ECU IGNITION
5A
F25
-
-
F26
-
-
F27
EMS RELAY COILS &
SENSORS
15A
F28
EMS ECU SUPPLY
20A
F29
EMS INJECTOR
10A
F30
FRONT WIPER MOTOR
20A
*
F31
RR WIPER
10A
F32
STARTER MOTOR
FEEDBACK
5A
*
F33
RELAY COILS
5A
*
F34
IBS BATT
5A
F35
REVERSE LAMPS/BRAKE
SWITCH
10A
F36
H/L LOW LH
10A
F37
H/L LOW RH
10A
F38
-
-
Note:
*
- if equipped

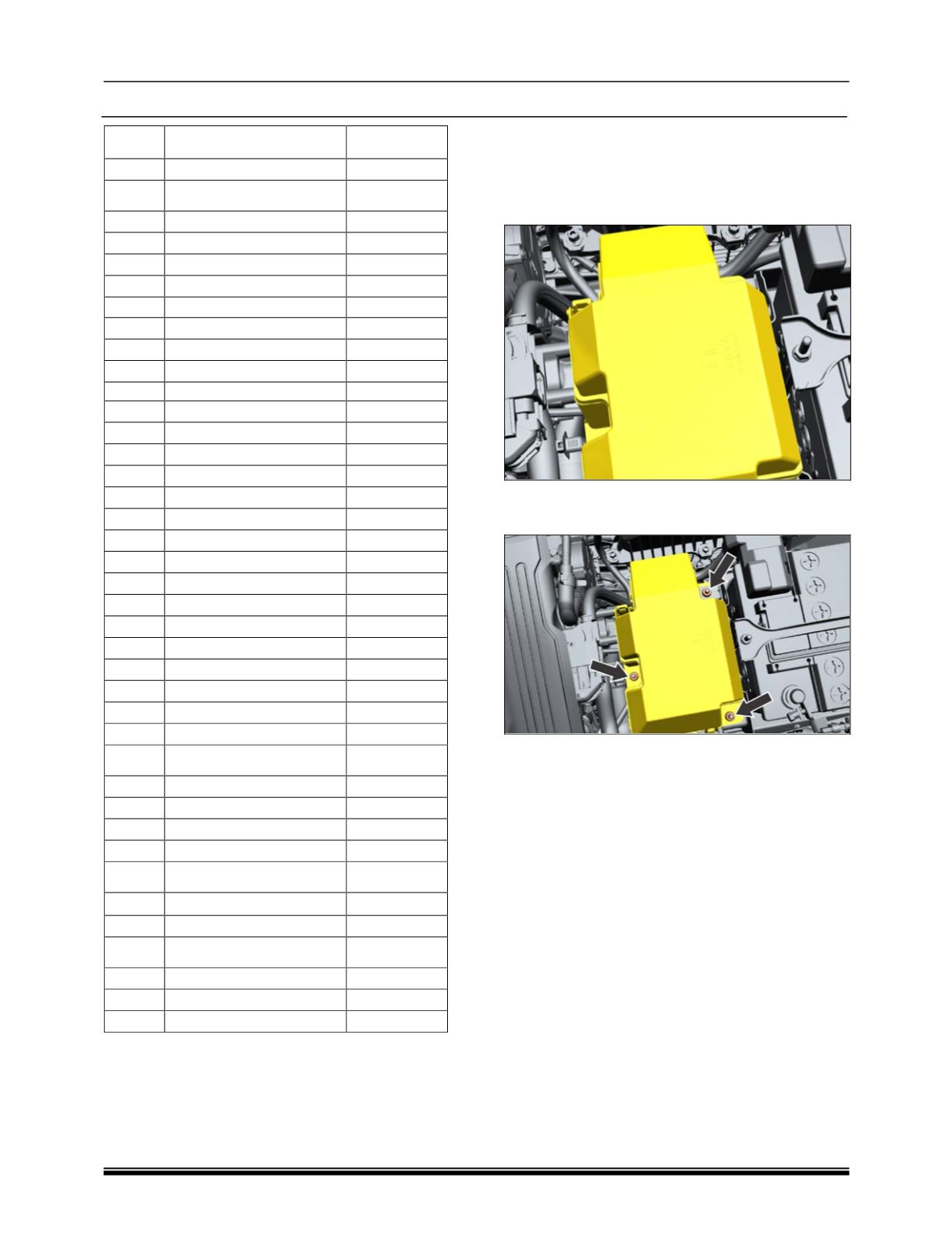

REMOVAL
1. Remove the Battery. (For procedure, refer
Battery removal process in Electrical section.)
2. Remove the top cover of fuse box.
3.Remove the mounting bolt of the fuse frame
assembly.
4.Gently pull out the fuse frame and disconnect all
the electrical connections.
FUSE AND RELAY REPLACEMNET:
1.Remove the cover of the fuse box.
2.Take out the fuse or relay from its base.
3.Check the Fuse/relay.
4.Iffaulty, replace with same ratting of fuse and
relay.
FITMENT
For fitment follow reverse procedure of the
removal.
