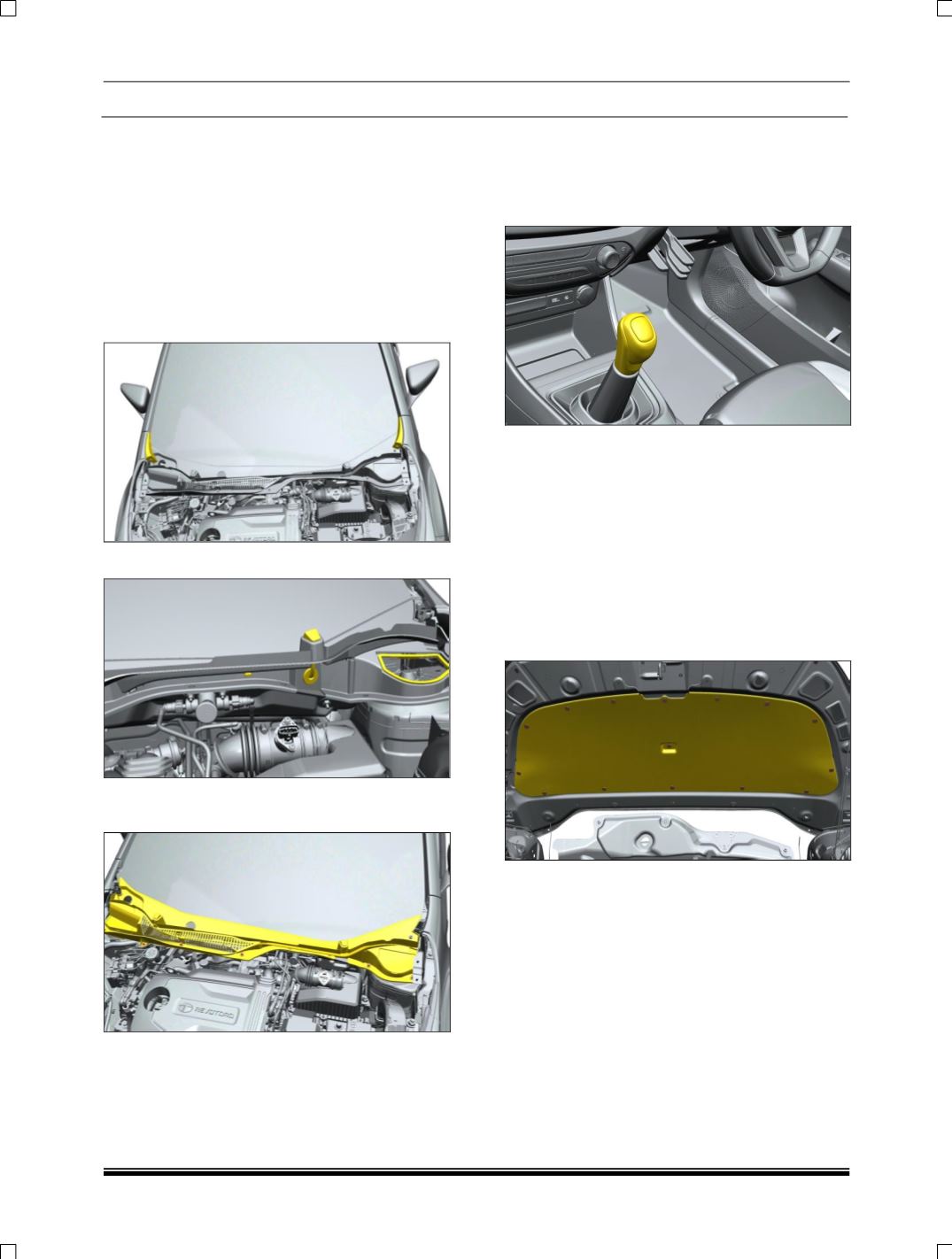

2.34 PLENUM COVER:
REMOVAL
1. Open the Bonnet.
2. Disconnect the negative terminal of battery.
3. Remove both front wiper arm and blade
assembly. (R
efer wiper arm and blade
assembly removal process).
4. Pull out Grommet pin on both LH, RH side and
pull out side plenum cover LH, RH.
5. Disconnect washer tube.
6. Pull out seven Grommet pin and pull out
plenum cover.
FITMENT
For fitment follow reverse procedure of removal.
2.35 GEAR LEVER BOOT
REMOVAL
1. Pull out the rubber knob from GEAR SHIFT
UNIT
2. Remove the Lather boot from the gear shifter
lever.
FITMENT
For fitment follow reverse procedure of removal.
2.36 BONNET INSULATION
REMOVAL
1. Open the bonnet.
2. Pull out the insulation from the bonnet
assembly.
FITMENT
For fitment follow reverse procedure of removal.
NOTE
While pulling out the Bonnet insulation, care
should be taken such that clips do not get damage
if found damaged replace the same with the new
one
