2.26 REAR SEAT BELT
REMOVAL

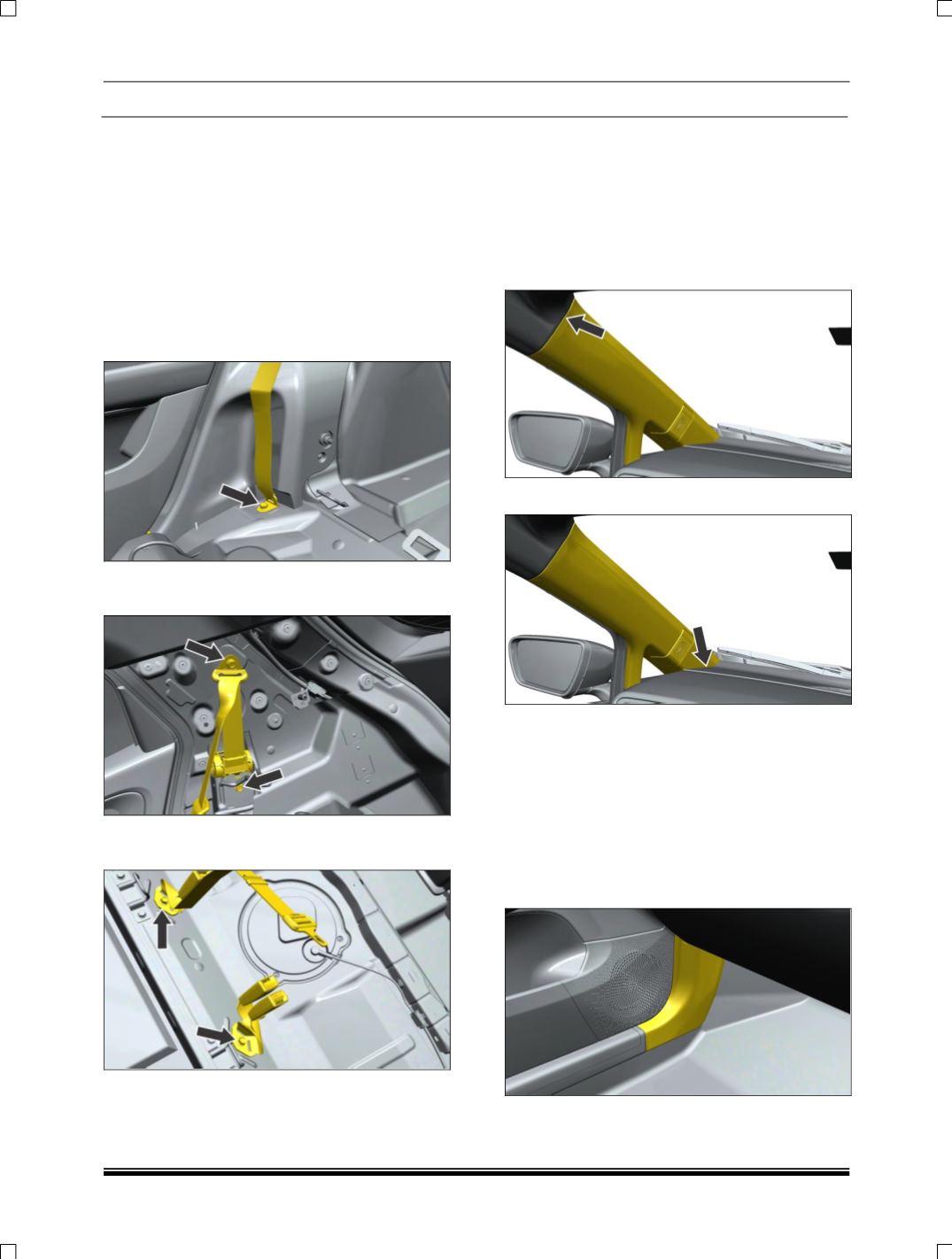

1. Remove parcel shelf.
2. Remove rear seat backrest (for removal
process refer rear seat removal process).
3. Remove the rear seat (refer seat removal
process.)
4. Remove the bottom mounting fastener &
C pillar upper and lower trim. (For
procedure refer C pillar removal process.
5. Remove mounting bolt of seat belt striker from
both side and take it out.
6. Remove centre seat belt mounting bolts
shown in figure.
7. Remove the rear seat belt assembly.
FITMENT
For fitment follow reverse procedure of removal.
2.27 “A” PILLAR TRIM:
“A” PILLAR UPPER TRIM
REMOVAL
1. Remove door beading at A Pillar trim location.
2. Pull A Pillar trim from upper locate
3. Pull A Pillar trim from upper locater.
4. Pull “A” Pillar trim bottom snaps from slots.
5. Remove A pillar trim.
FITMENT
For fitment follow reverse procedure of removal.
“A” PILLAR LOWER TRIM
REMOVAL
1. Remove door beading and Pull lower trim
gently.
2. Pull out A Pillar lower trim.
FITMENT
For fitment follow reverse procedure of removal.
