DRIVESHAFT -
DIESEL
16

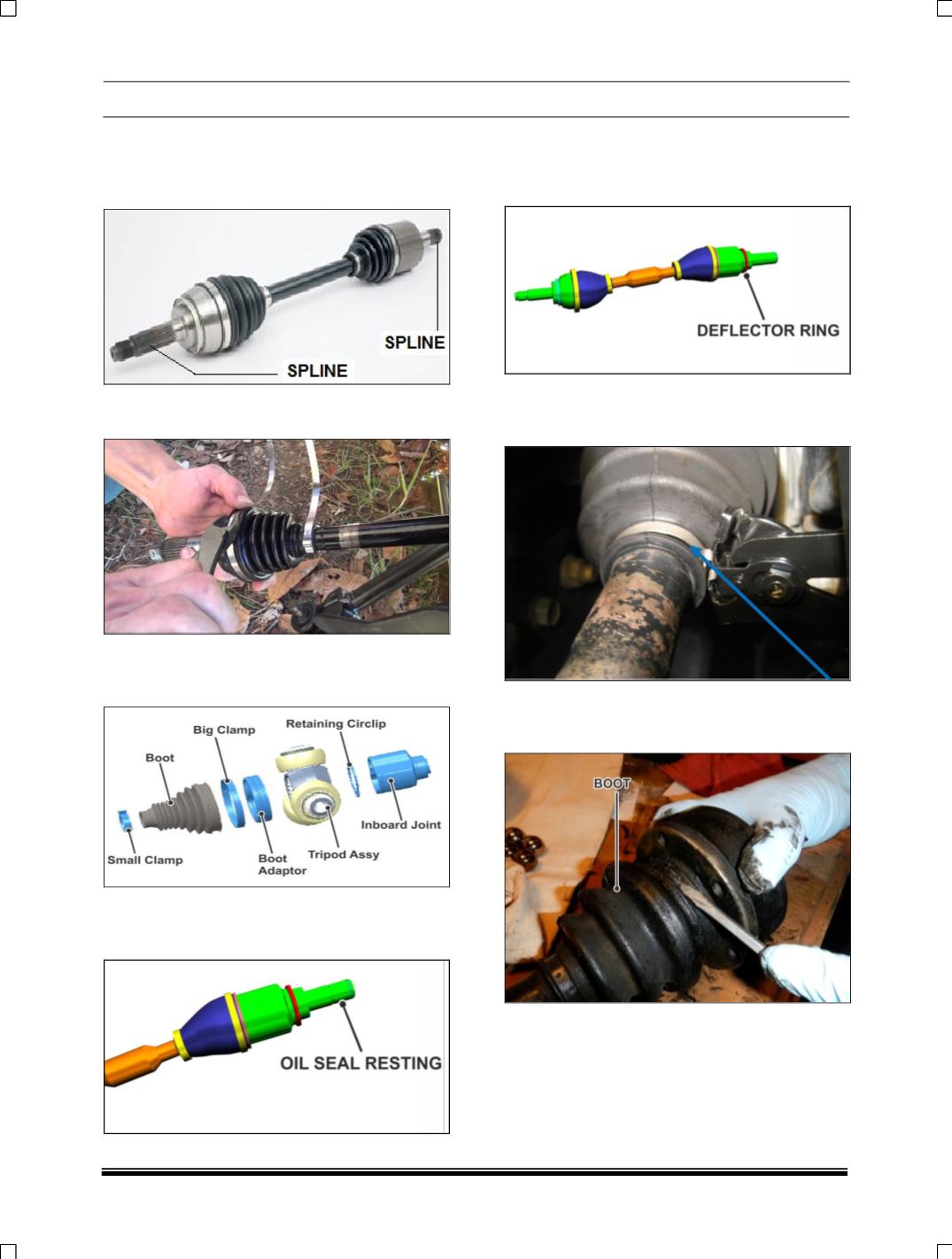

14. PRECAUTION TO AVOID THE DAMAGE TO
DRIVE SHAFT
1. Avoid damaging the surface of the threads
and splines during installation.
2. Clamps should be in position and tight. If
clamps are loose, don’t install into vehicle.
3. To prevent damage to the internal
components of the inboard joint, take all
precautions to avoid over extending the joints.
4. Protect this surface from nicks and scratches.
Damage to this surface may reduce the
performance of the mating seal.
5. Protect deflector ring from impacts, which
could cause dents. A dented/Damaged
deflector ring may result in an interference
condition and affect the seal.
6. Eared clamp must be in position and crimped.
Take precaution to avoid any contact between
the ear of the clamp and any object
7. Take precaution to avoid any contact between
the inboard seal and the tooling used to insert
the assembly into the transmission
