DRIVESHAFT - DIESEL
11

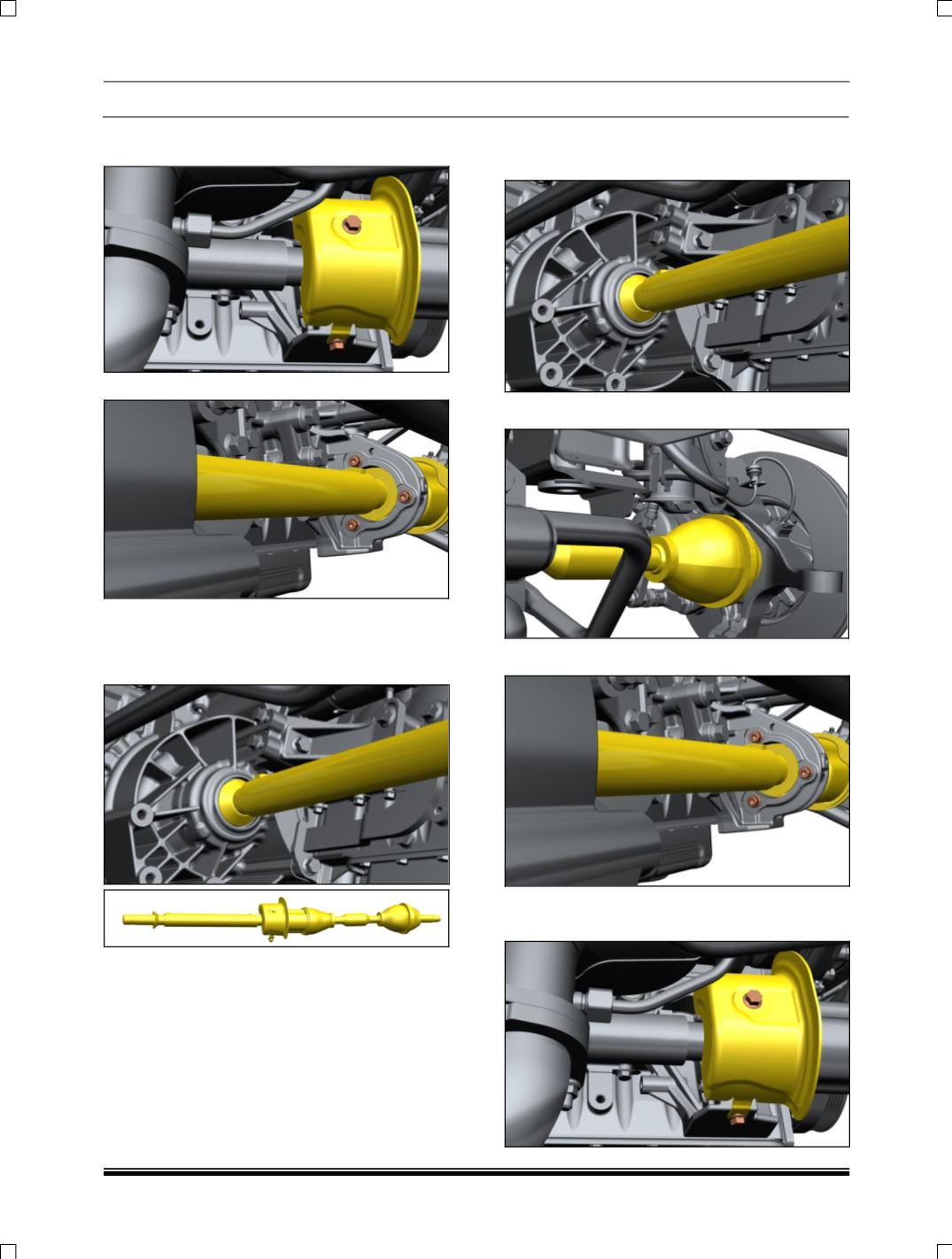

10. Remove heat shield mounted on Intermediate
bearing shaft Bracket.
11. Remove Intermediate bearing shaft Bracket.
12. Remove Intermediate drive shafts from Gear
Box and place it suitably alongside.
NOTE:
Collect Gear Box oil using a suitable
container.
CAUTIONS
While disengaging driveshaft from gearbox
take care that oil seal should not be damage.
Do not pull drive shaft excessively as the
plunge joint will come out of housing and
damage the boot Pry. Plunge joint housing for
taking out joint out of splines.
Do not place the CV drive shaft on rough /
uncleaned surfaces. This might damage the
drive shaft boot.
11. RH SIDE DRIVE SHAFT ASSEMBLY
1. Install the Drive shaft into Gear Box End.
2. Install Drive shaft into the Knuckle End.
3. Fix Intermediate bearing flange Bracket.
4. Install heat shield mounted on Intermediate
bearing shaft Bracket.
