DRIVESHAFT - DIESEL
15

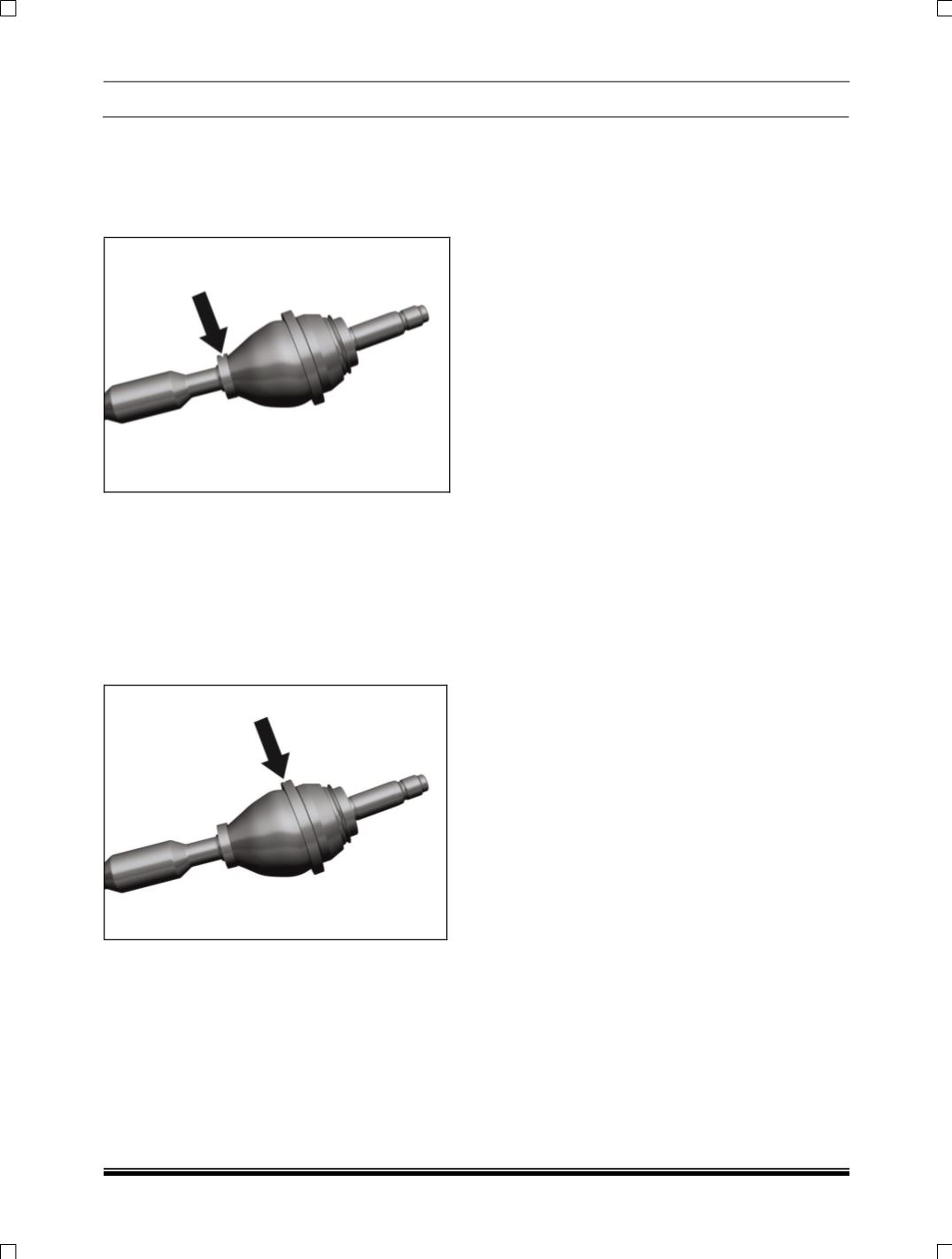

6. Slide the tripot seal smaller end to the
corresponding groove on the axle shaft and
crimp the small seal retaining clamp (new
one) using pincer crimping tool) and maintain
max 2.6 mm. ear gap (Spider Assembly at
approximately middle of the tripot bowl).
7. Slide the new large seal retaining clamp over
the housing in the free condition of the boot
and housing Insert the swage tool part no:
2779 5890 2001 over the clamp.
8. Align the seal bigger diameter on the housing
and position the big seal retaining clamp in its
place and swage the large seal-retaining
clamp using spanner Please tighten
alternatively between two bolts (i.e. don’t
tighten one bolt alone completely at a time).
