SUSPENSION
3

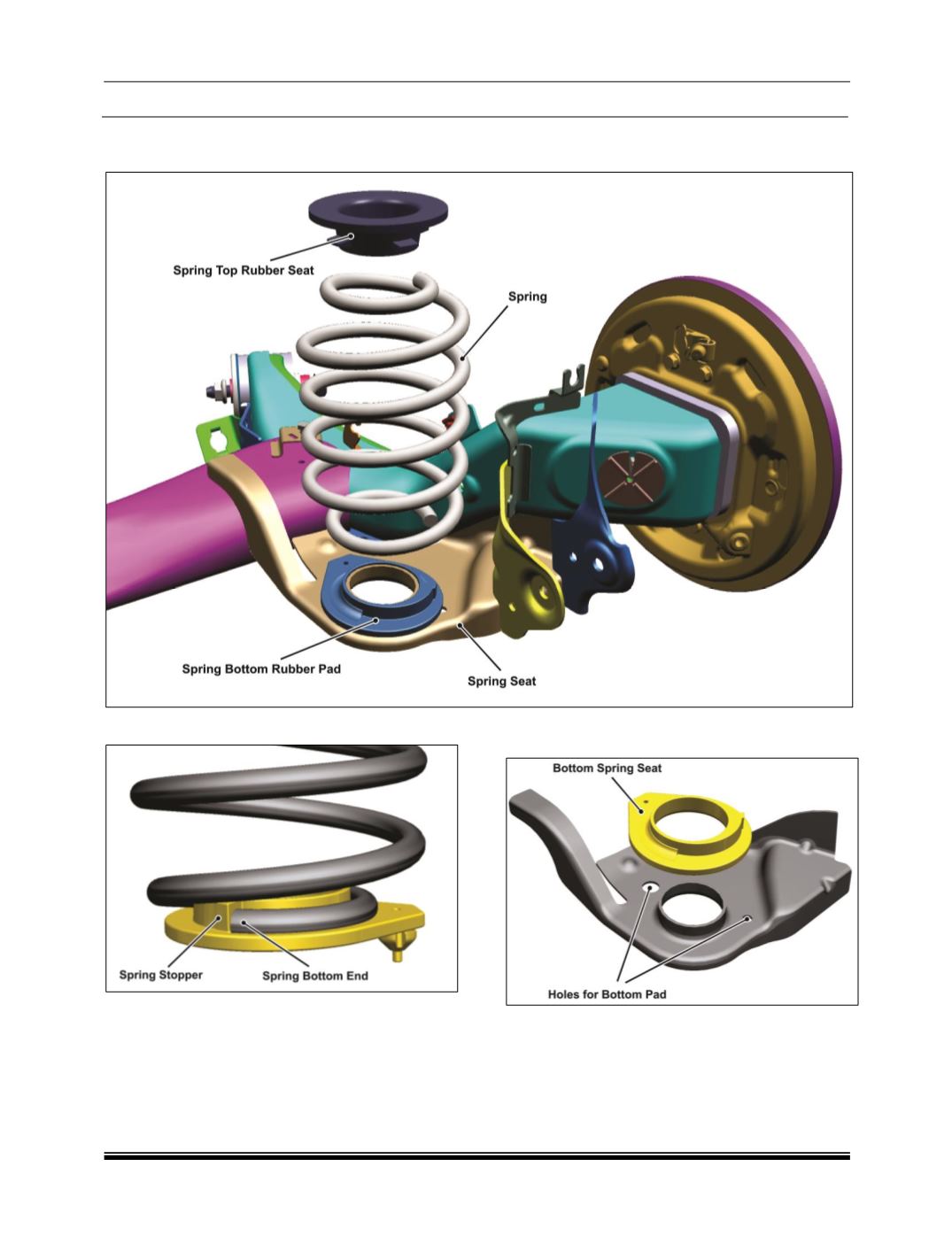

The coil springs rests on a pad/spring seat alongside the wheels. The springs and the spring seat bear paint
marking for correct positioning of the spring on the spring seat.
Assembly-bottom pad with spring
Key Instruction
:
Coil spring end should be butting stopper face on
spring bottom pad (rubber pad) while fitment of coil
spring. The spring bottom pad (rubber pad) should
be first fixed on the holes given on metal spring
seat on Rear twist beam assembly
.
S
pring color dot marking to be placed on the
bottom side.
Assembly-bottom pad with metallic seat
