603 / 1119
DRIVESHAFT -
DIESEL
8

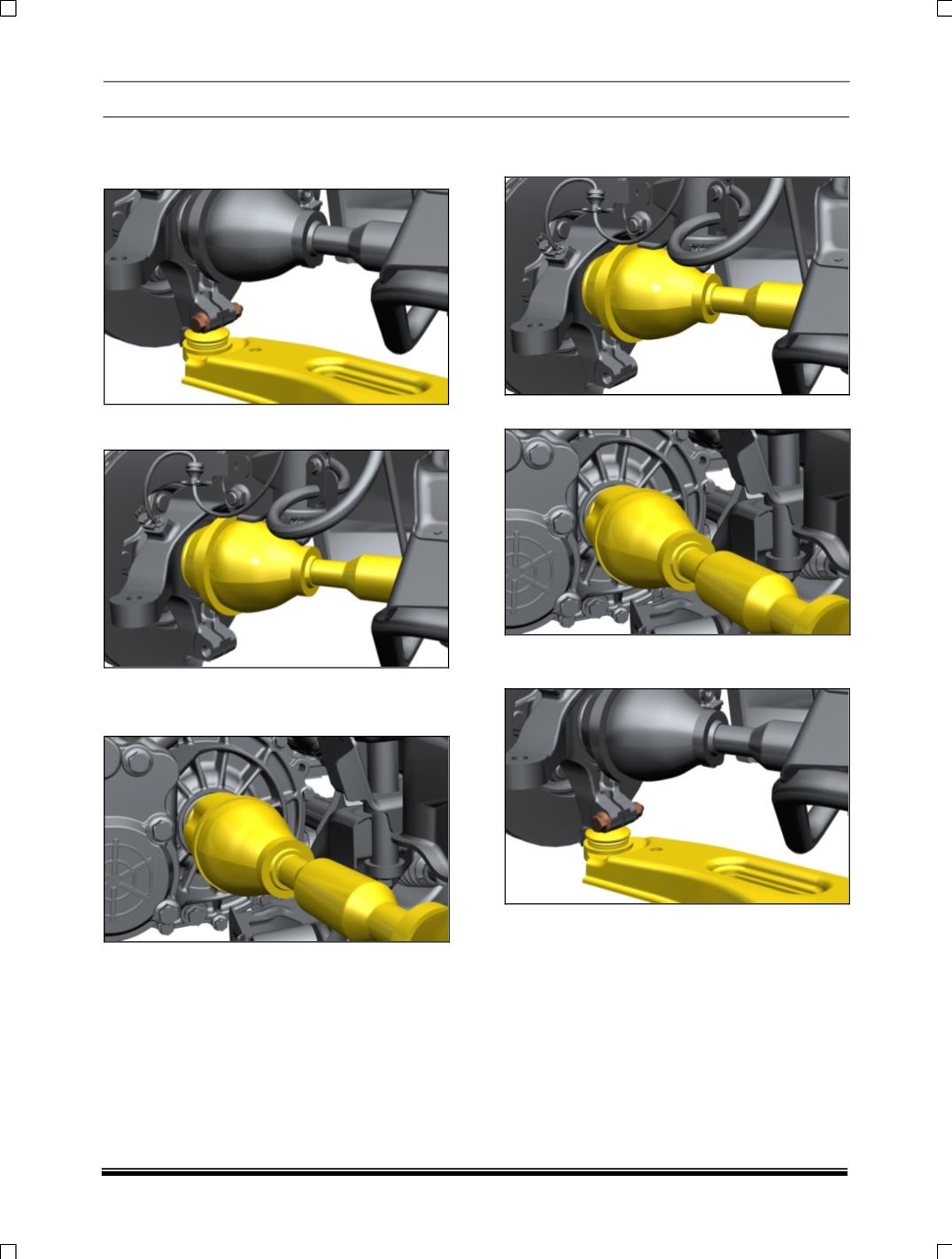

9. Remove Nyloc Nut mounting on LCA and
Disconnect LCA (Lower Control Arm) ball joint
from Knuckle.
10. Remove Drive shaft from Knuckle End and
place suitably.
11. Push out the Drive shaft from Gear Box End
by using a screw driver.
NOTE:
Collect Oil in Suitable Container.
CAUTIONS
While disengaging driveshaft from gearbox
take care that oil seal should not be damage.
Do not pull drive shaft excessively as the
plunge joint will come out of housing and
damage the boot Pry. Plunge joint housing for
taking out joint out of splines.
Do not place the CV drive shaft on rough /
uncleaned surfaces. This might damage the
drive shaft boot.
9. LH SIDE DRIVE SHAFT ASSEMBLY
1. Install the Drive shaft into Knuckle End.
2. Install the Drive shaft into Gear Box End.
3. Insert the LCA ball joint in knuckle & tighten
the mounting fastener with torque 5.5 Kg-m.
