1.5L REVOTORQ ENGINE
22

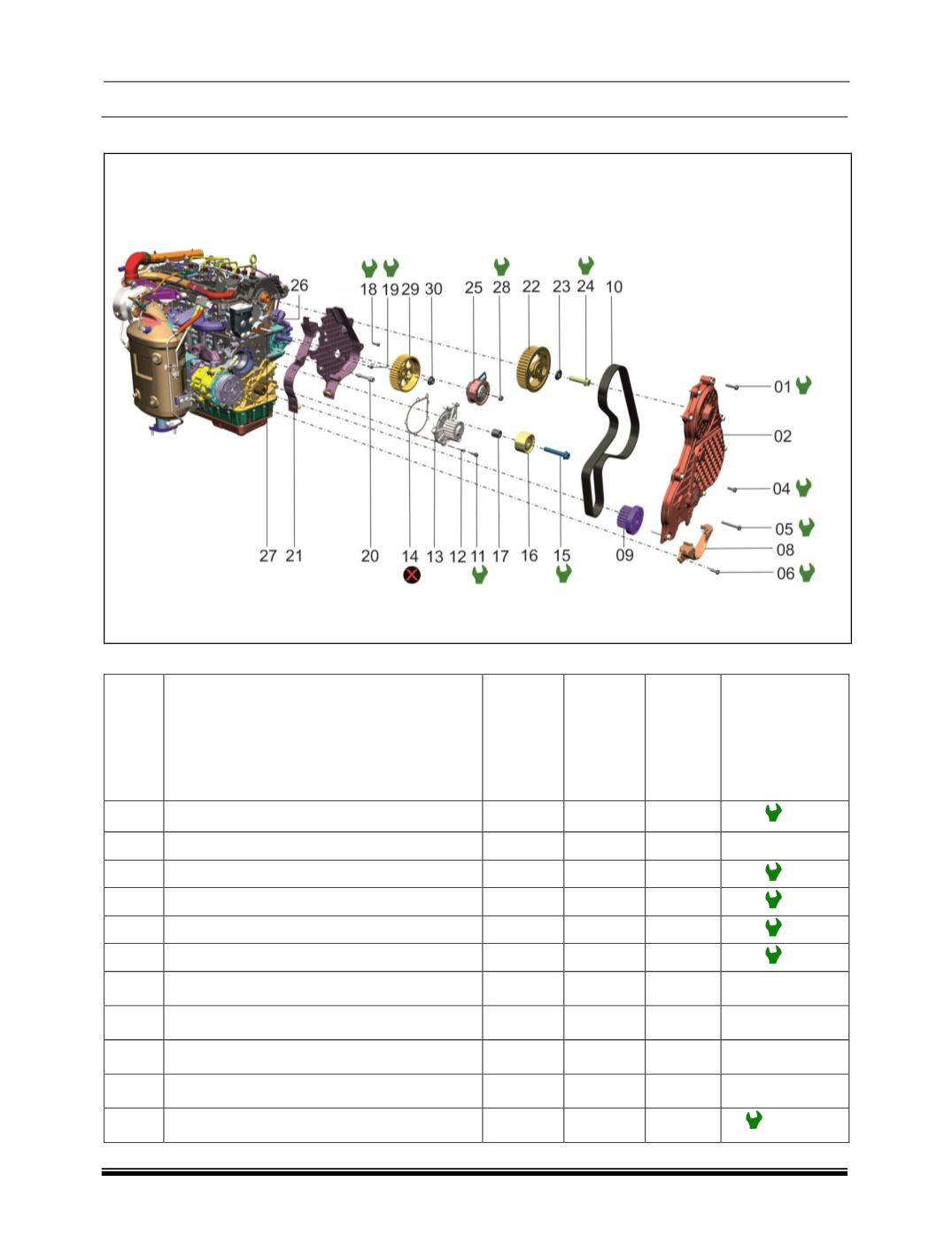

F. Timing Belt, Auto Tensioner, Water pump
Timing Belt, Timing Cover, Auto Tensioner, Water pump
ITEM
NO.
DESCRIPTION
NO REUSE
SEALANT
LUBRICATION
TIGHTENING
TORQUE
(kg-m)
01
Hex. Flange Bolt M6x25 (Qty. 3)
0.8
02
Timing Cover Assy., (Front)
03
Hex. Flange Bolt M6x25 (Qty. 4)
0.8
04
Hex. Flange Screw M6x16
0.8
05
Hex. Flange Bolt M6x45 (Qty. 2)
0.8
06
Hex. Flange Screw M6x16 (Qty. 2)
0.8
07
Hollow Dowel (Qty. 2)
08
Front Cover (Bottom)
09
Gear, Crankshaft
10
Timing Belt
11
Hex_Screw_M6x20 (Qty. 5)
1.0 + 0.2
