204 / 1119
1.5L REVOTORQ ENGINE
16

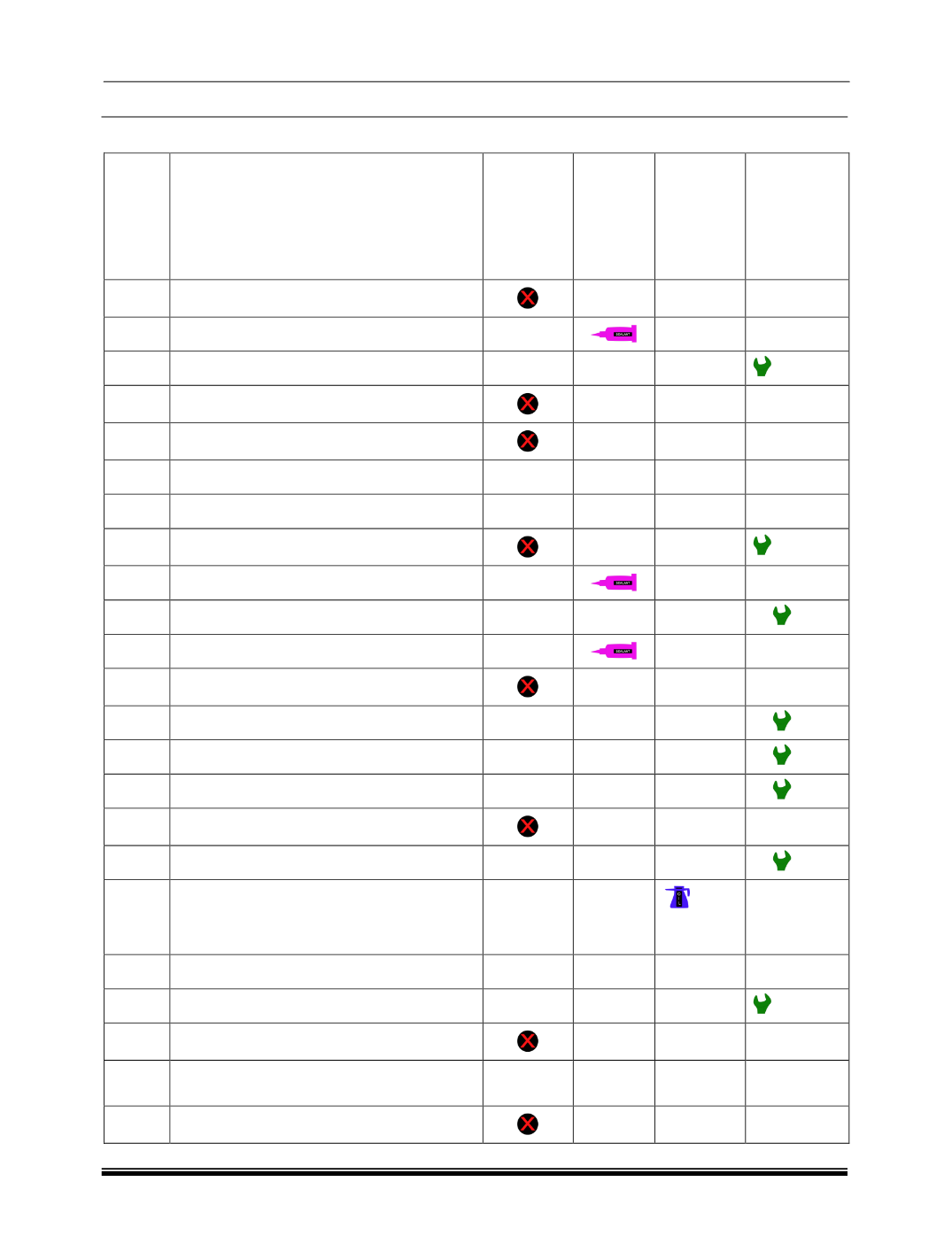

Lubrication system
ITEM
NO.
DESCRIPTION
NO REUSE
SEALANT
LUBRICATION
TIGHTENING
TORQUE
(kg-m)
01
Gasket (Oil Pump)
02
Assembly, Oil Pump
03
Hex_Screw_M6x1x25 (Qty. 9)
1.0 + 0.2
04
Crankshaft Oil Seal (Front)
05
Gasket, Oil Pump Strainer
06
Oil Pump Strainer
07
Stud_Cm6x16 (Qty. 2)
08
Clinch Nut (Qty. 2)
1.0 + 0.2
09
Oil Sump (Upper) Aluminium
10
Hex. Flange Screw M6x22 (Qty. 20)
0.8
11
Oil Sump (Lower)
12
Sealing Washer (Oil Sump Drain Plug)
13
Magnetic Drain Plug M16x1.5
3.5
14
Hex. Flange Screw M6x14 (Qty. 20)
0.8
15
Hex Flange Bolt M6x121.5 (Qty. 2)
0.8
16
Gasket (Water Inlet Elbow)
17
Adaptor (For Oil Cooler & Oil Filter)
3.0
18
Oil Filter Assembly. (TC)
Apply
on rubber
ring
19
TC Oil Return Line
20
Hex Flange Screw M6x18 (Qty. 2)
1.0 + 0.2
21
Gasket (TC Oil Return Line )
22
Oil Feeder Line Assembly. (Cyl. Head To
TC)
23
Sealing Washer10x14 (Qty. 4)
