ELECTRICAL
21

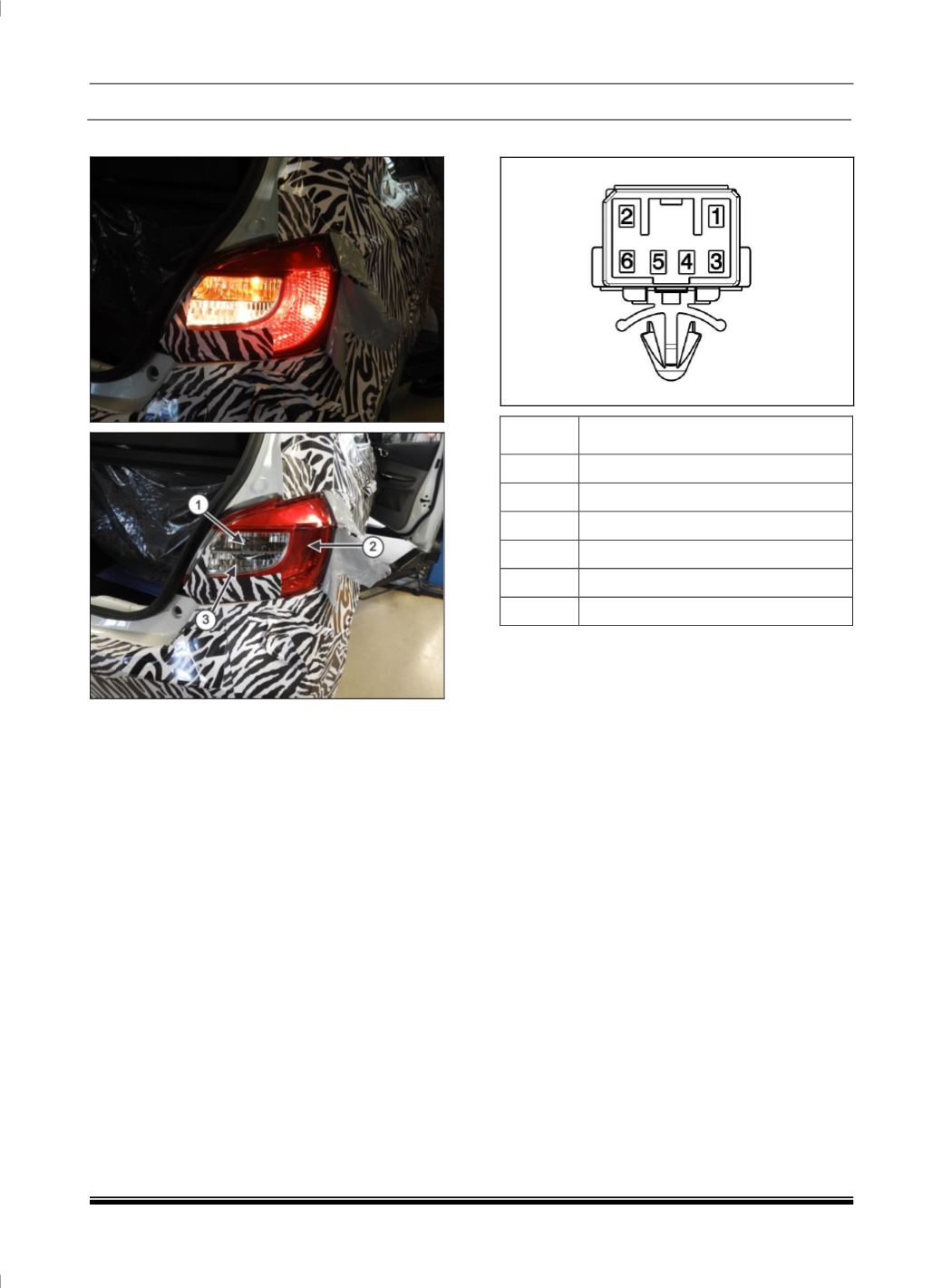

4.3 TAIL LAMP (TIAGO)
Tail lamp consists of the following bulbs:
1. Turn indicator
2. Stop light
3. Reverse Lamp
It is fitted on D pillar
PINOUT DETAILS
PIN
DESCRIPTION
1
Turn Signal
2
Stop Signal
3
Dummy
4
Ground
5
Tail/Position Signal
6
Reverse Signal
