313 / 418
ELECTRICAL
16

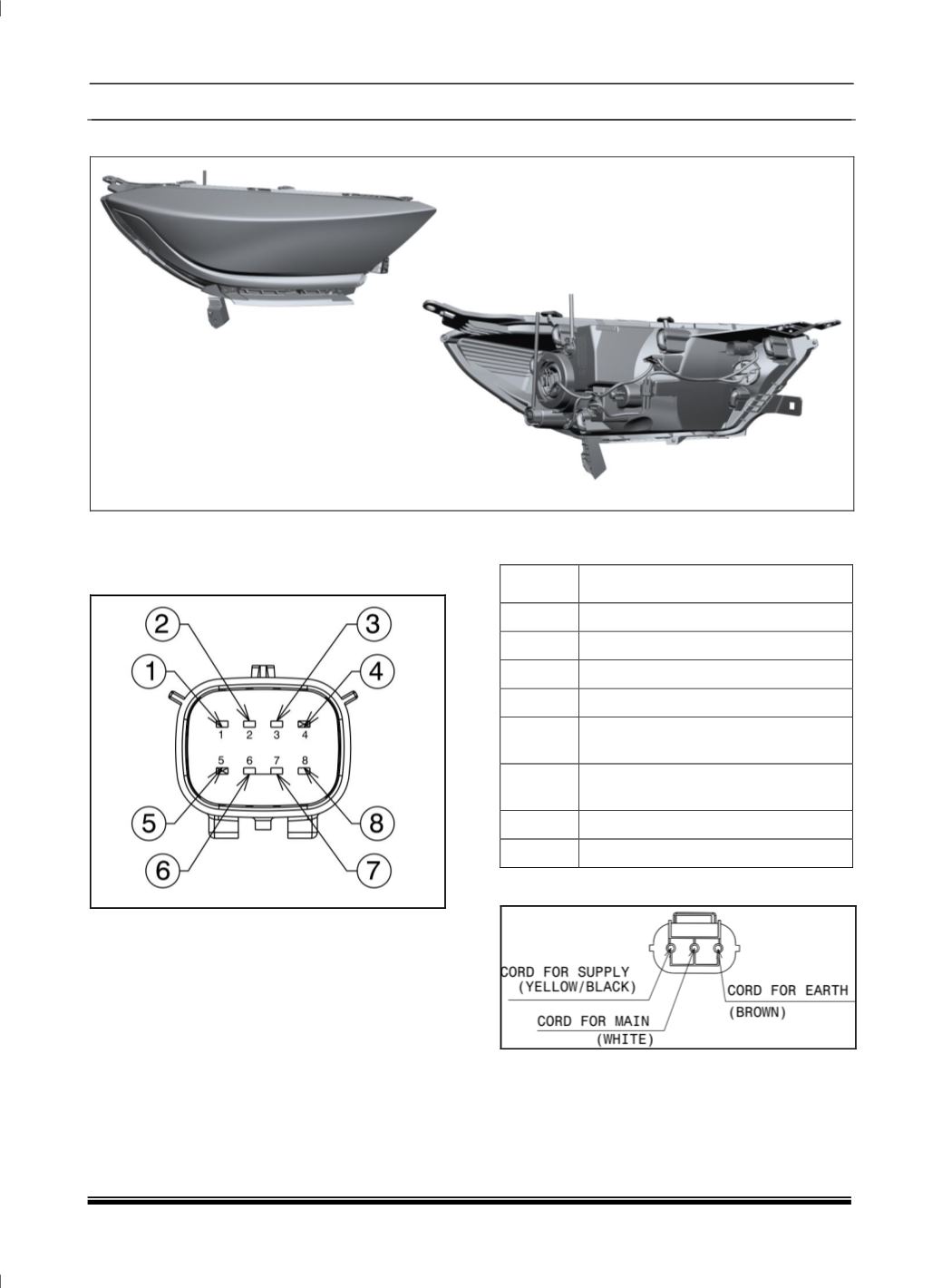

4.2 HEAD LAMP (TIAGO)
PINOUT DETAILS
a. Head lamp connector
PIN
DESCRIPTION
1
Low Beam
2
High Beam
3
Turn Indicator
4
WHITE (H/L LEV.SIGNAL)
5
YELLOW/BLACK
(H/L
LEV.SUPPLY)
6
BROWN
(EARTH)
FOR
LOW/POSITION /LEVELING
7
BLACK(EARTH) FOR HIGH/TURN
8
VOILET (POSITION)
b. Head lamp leveling mating connector.
