ELECTRICAL
26

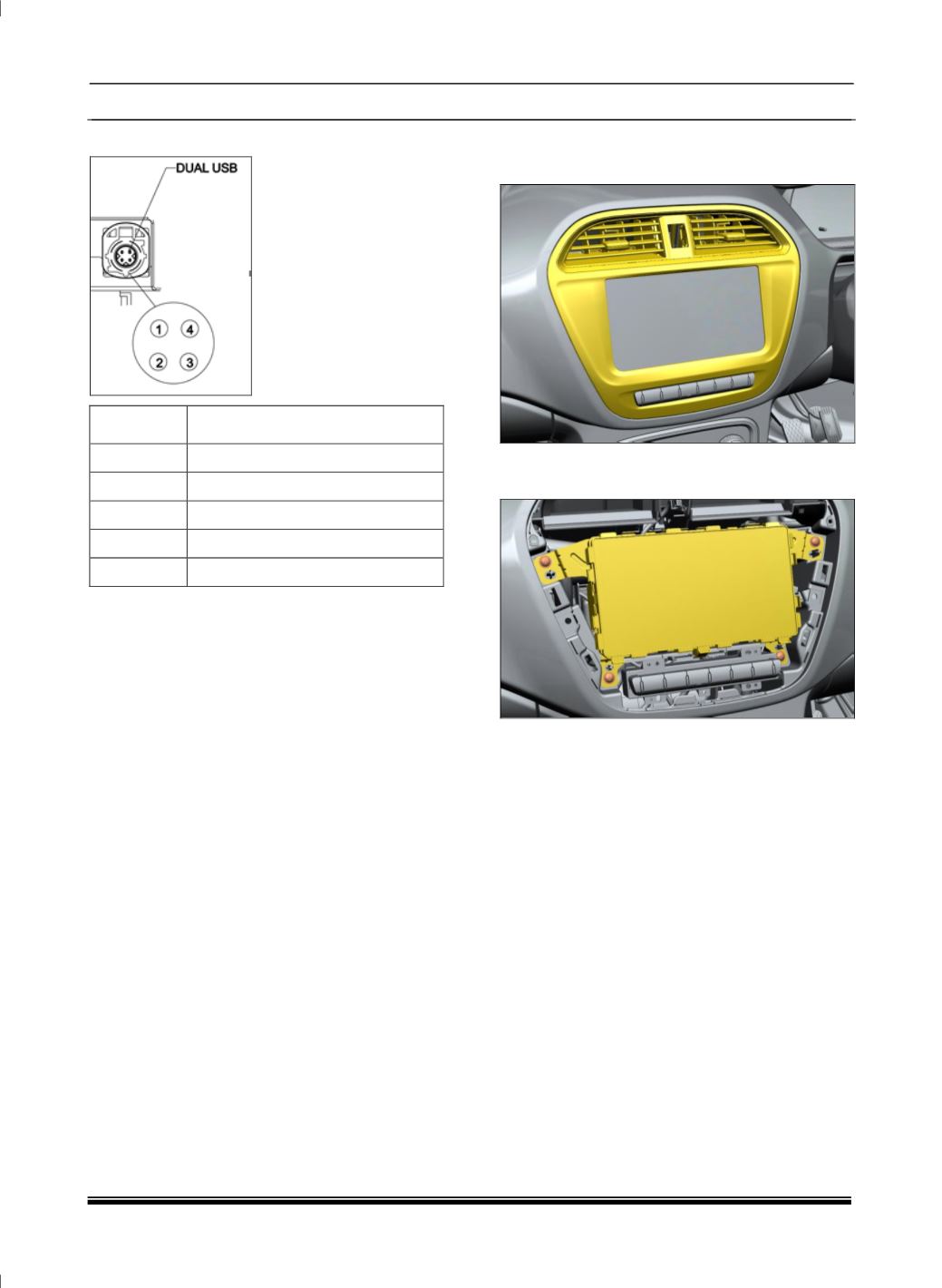

USB CONECTOR
PIN
DESCRIPTION
1
USB1Vbus
2
USB1D-
3
USB1Vbus
4
USB1D+
5
USb1Shield Gnd
SPECIFICATIONS:
Operating voltage: 9-16V
Test voltage: 13.5V
Operating current: 1.5A 4×0.5@4 ohm load
Maximum current: 15A
Operating temperature: -30ºC - 70ºC
Storage temperature: -30ºC - 85ºC
Leakage current: 0.6mA
REMOVAL
1. Carefully pry out fascia switch cover assembly.
2. Remove the 4 mounting screw and gently
pullout the unit.
3. Disconnect all the electrical connections.
REFITMENT
For refitment follow the procedure in reverse
