TIAGO TIGOR BSVI - SERVICE MANUAL

ELECTRICAL

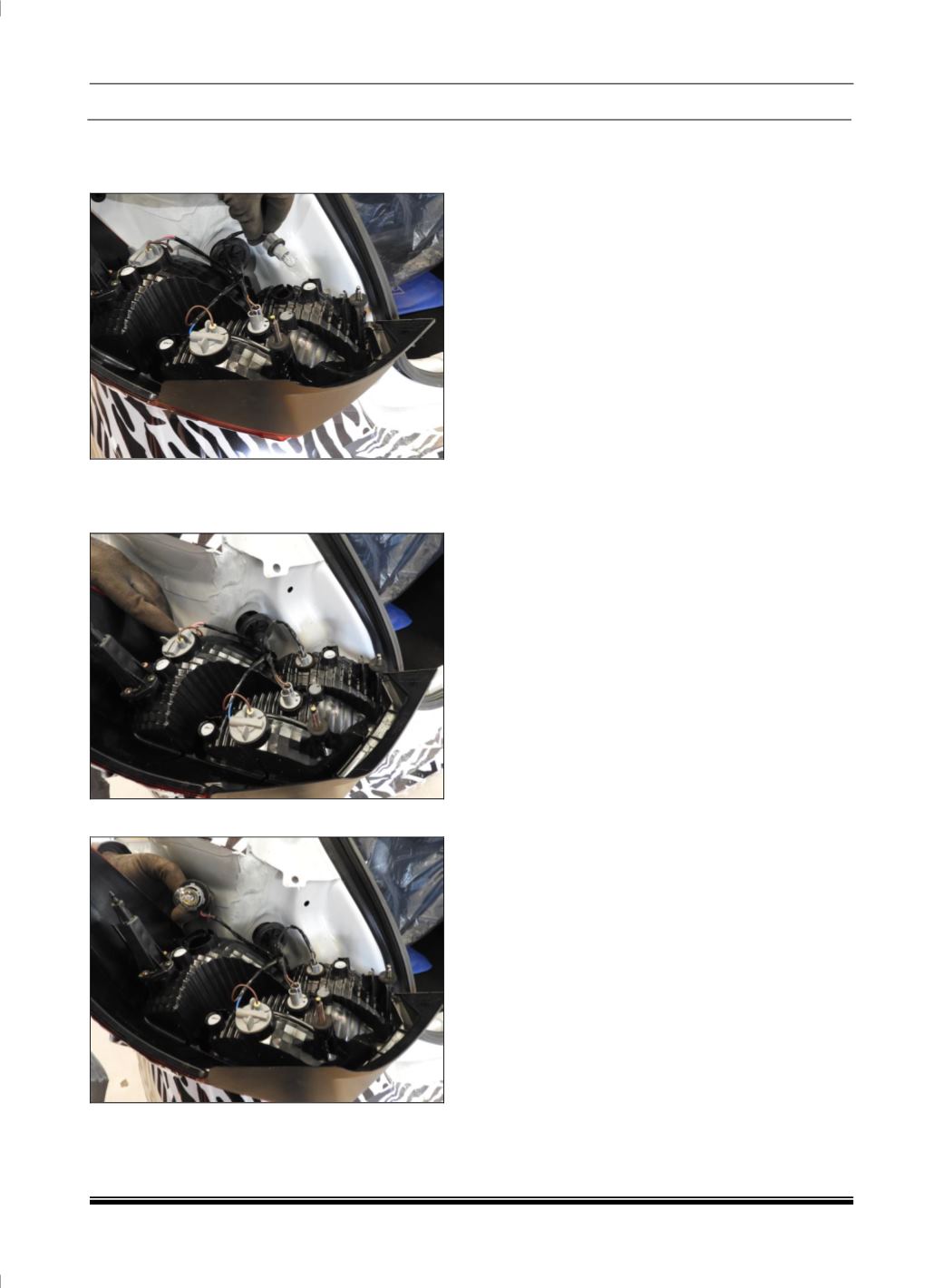

6. Rotate the tail signal bulb holder in anti-clock

wise direction to unlock the bulb holder from

lamp.

7. Rotate the tail position lamp bulb holder in anti-

clock wise direction to unlock the bulb holder

from lamp.

8. Remove the bulb holder from lamp.

REFITMENT:

1. Position Tail lamp to its proper place.

2. Push the lamp at catcher points to sliding

direction x axis to lock with Trim Clip on BSO

& simultaneously catcher on BSO.

3. Tight the both nuts

4. Connect Tail lamp connection.

the

Tailgat
