TRANSAXLE - TA5260
30

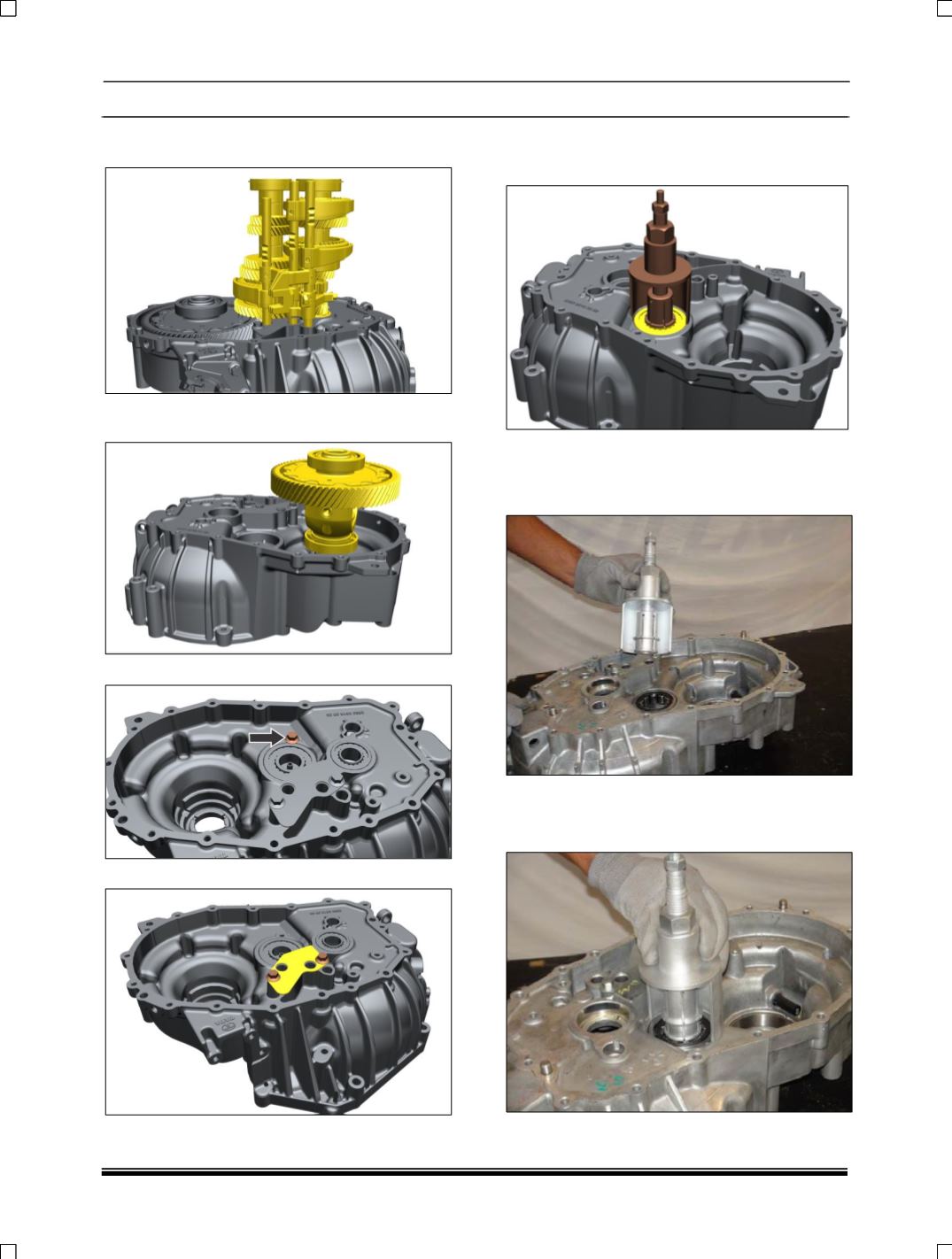

17. Take out input shaft assembly, Lay shaft
assembly & all shifter shaft assembly.
18. Remove the differential assembly along with
taper roller bearing from the housing front.
19. Remove Bearing retention Hex Flange Bolt.
20. Remove Hex Flange Bolt & Take out Plate.
21. Remove Lay or Counter shaft bearing from
Front housing using bearing race Puller
5438
5890 2617
.
PROCEDURE FOR REMOVAL OF LAY OR
COUNTER SHAFT BEARING
Position the transaxle RH side case, facing the
bearing in upward direction.
Take the bearing puller (5438 5809 2617) and
place outer hub of the puller on the machined
surface of transaxle casing, surrounding of the
countershaft bearing.
