TRANSAXLE - TA5260
28

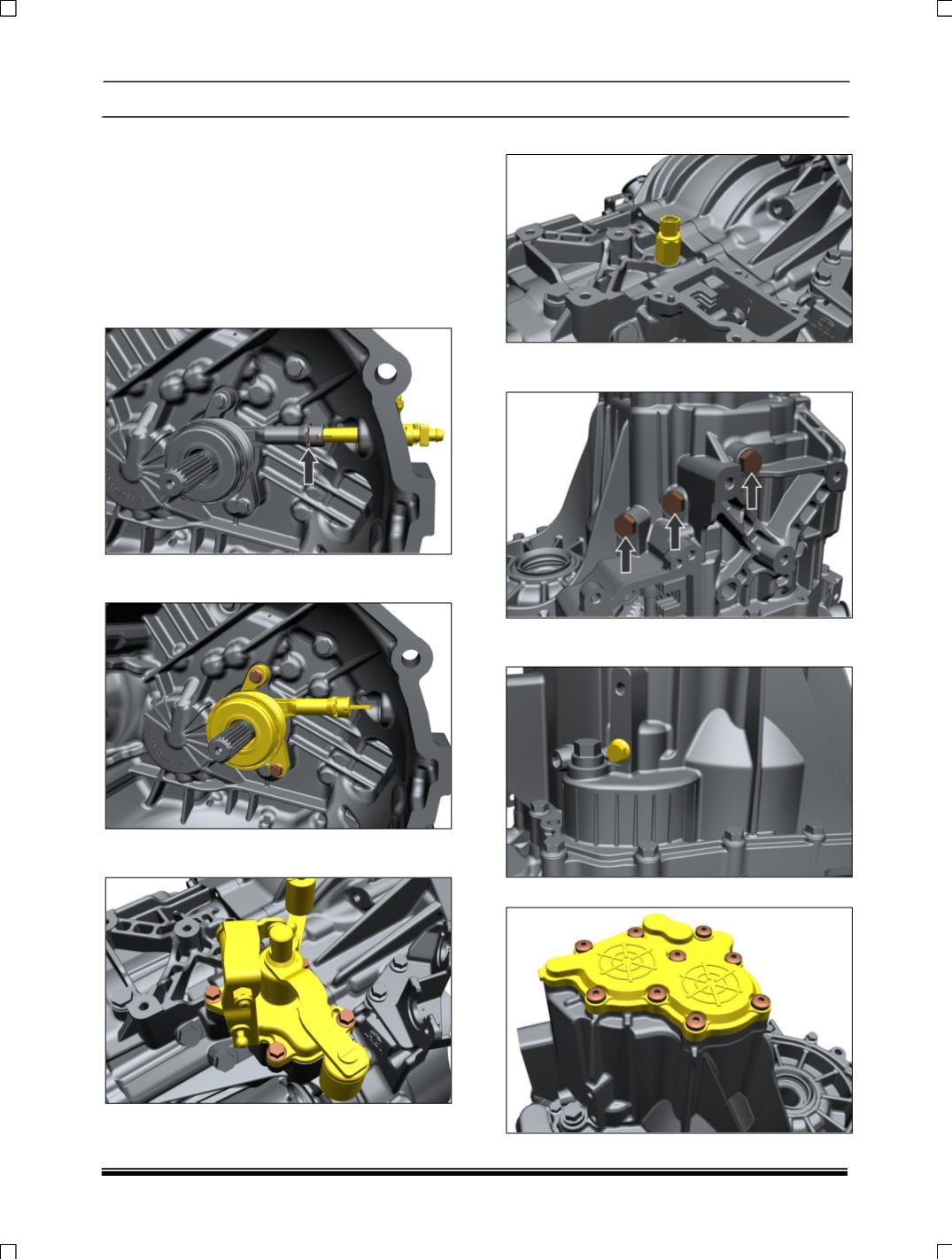

12. DISASSEMBLY OF TRANSAXLE (ON
BENCH):
1. Ensure that oil is drained completely from the
transaxle before mounting on the work stand.
2. Fix the mounting bracket 5425 5890 0604 on
work stand 5425 5890 0605 by using hex bolt
3. Mount transaxle face on mounting plate and fix
it by three hex bolts of M10 size.
4. Remove clip & take out hydraulic adaptor.
5. Remove mounting & take out concentric slave
cylinder.
6. Remove Hex FL bolt M8x25 & take out Top
Cover Assy. with cable Mounting. Bracket.
7. Remove assembly reverse light switch.
8. Remove DETENT ASSY (SHIFTER SHAFT) &
take out housing, Rear half.
9. Remove Hex FL bolt M8X25 for Reverse Idler
shaft.
10. Remove rear cover.
