TRANSAXLE - TA5260
34

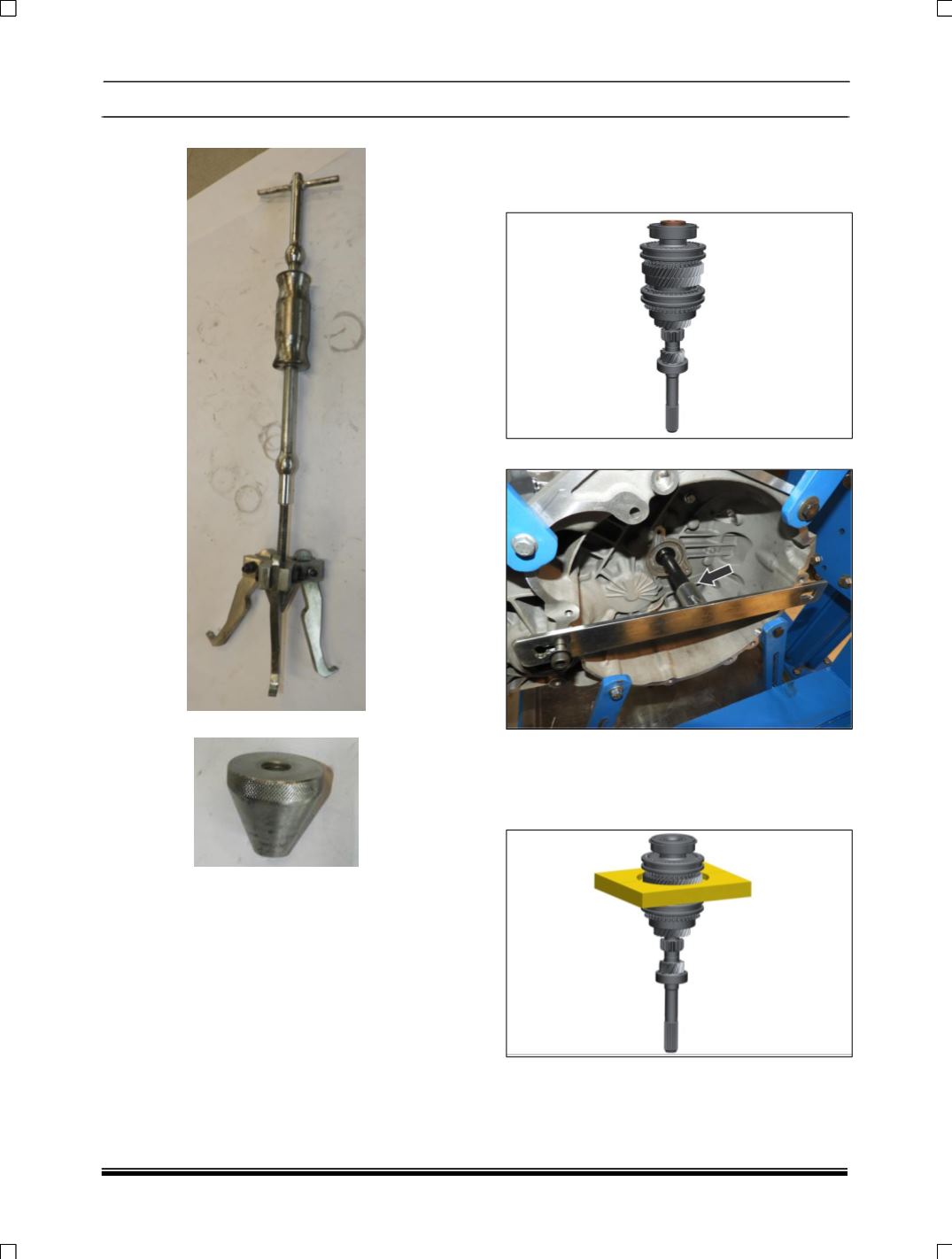

Outer Race Bearing Puller
5438 5890 2603
Conical Spacer
5438 5890 2603
NOTE: SHIMS SHOULD NOT BE REUSED.
NOTE:
1. Apply anabond 112 on threads of all fasteners
2. Apply silicon liquid gasket anabond 690 on
housing interface.
3. The chips collected by magnetic drain plug, are
to be removed at the time of every oil change.
4. Keep inner and outer races of taper roller
bearing in sets.
5. Use sealing anaerobic compound for all oil
seals outer diameter.
6. For oil seals of input drive shaft and bellows
use anabond 112.
A. DISASSEMBLY OF INPUT SHAFT
1. Remove Locking Screw M20 X 1.5 by
interlocking Input & Lay shaft Assembly in
Gear Box Housing.
Input shaft Locking Plate 5412 5890 2608
2. Remove deep groove ball bearing, Retaining
carrier plate, Engaging gear Assy.,
synchronizer with 5
th
speed gear with the help
of Drift
2834 5890 2607
& support plate
5412
5890 2606.
