344 / 924
TRANSAXLE - TA5260
26

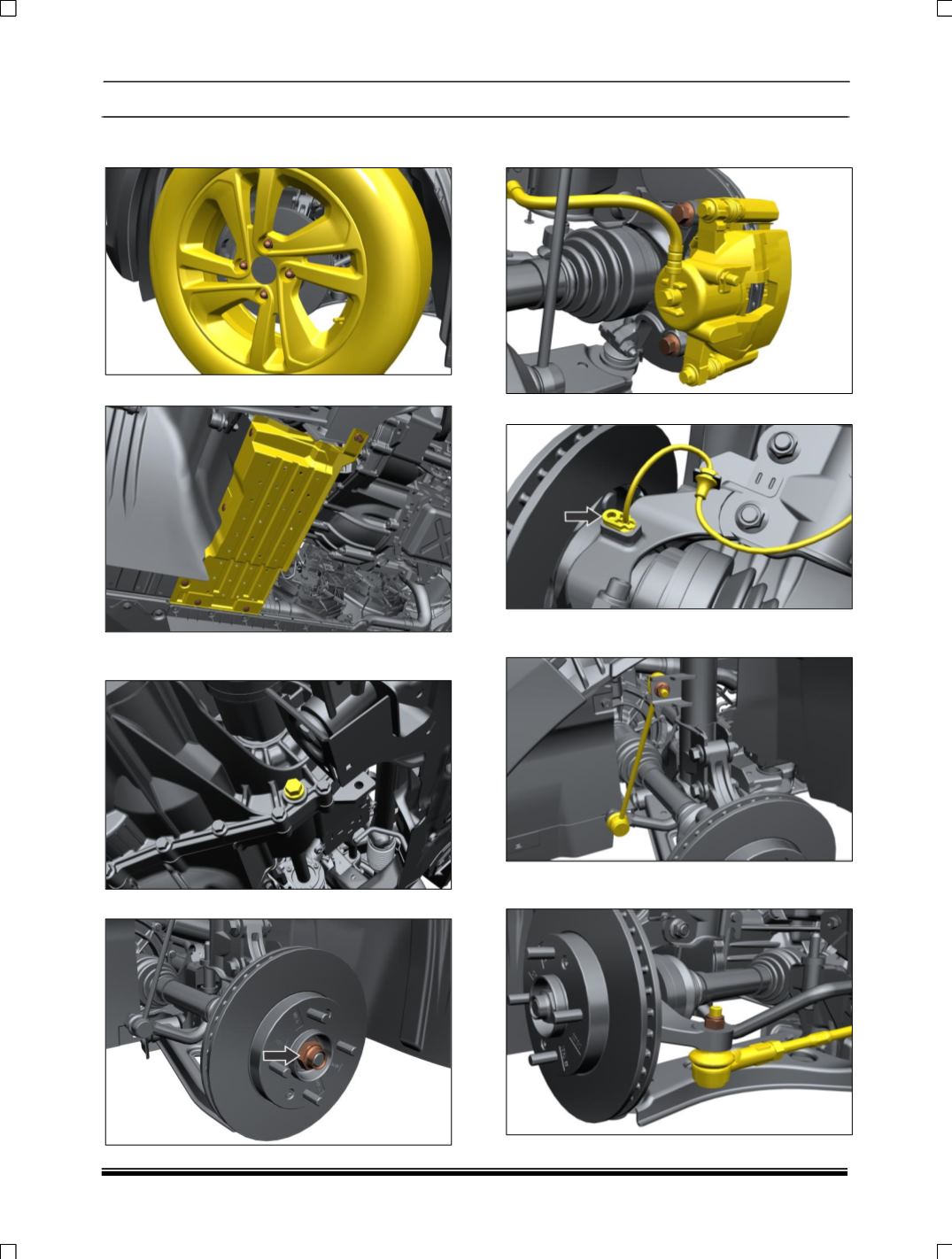

7. Lift the vehicle on using two post lift and
remove the front wheels.
8. Remove Front Mud Liner LH.
9. Remove Drain Plug & drain Transaxle oil into a
suitable container.
10. Remove Drive shaft Lock nut.
11. Remove Brake Caliper Assembly mountings
hang the same with help of S-Hook.
12. Remove Wheel speed sensor.
13. Disconnect Stabilizer Link Assembly LH from
shock absorber.
14. Remove Rack and Pinion mountings on
knuckle joint.
