KRYOTEC ENGINE
71

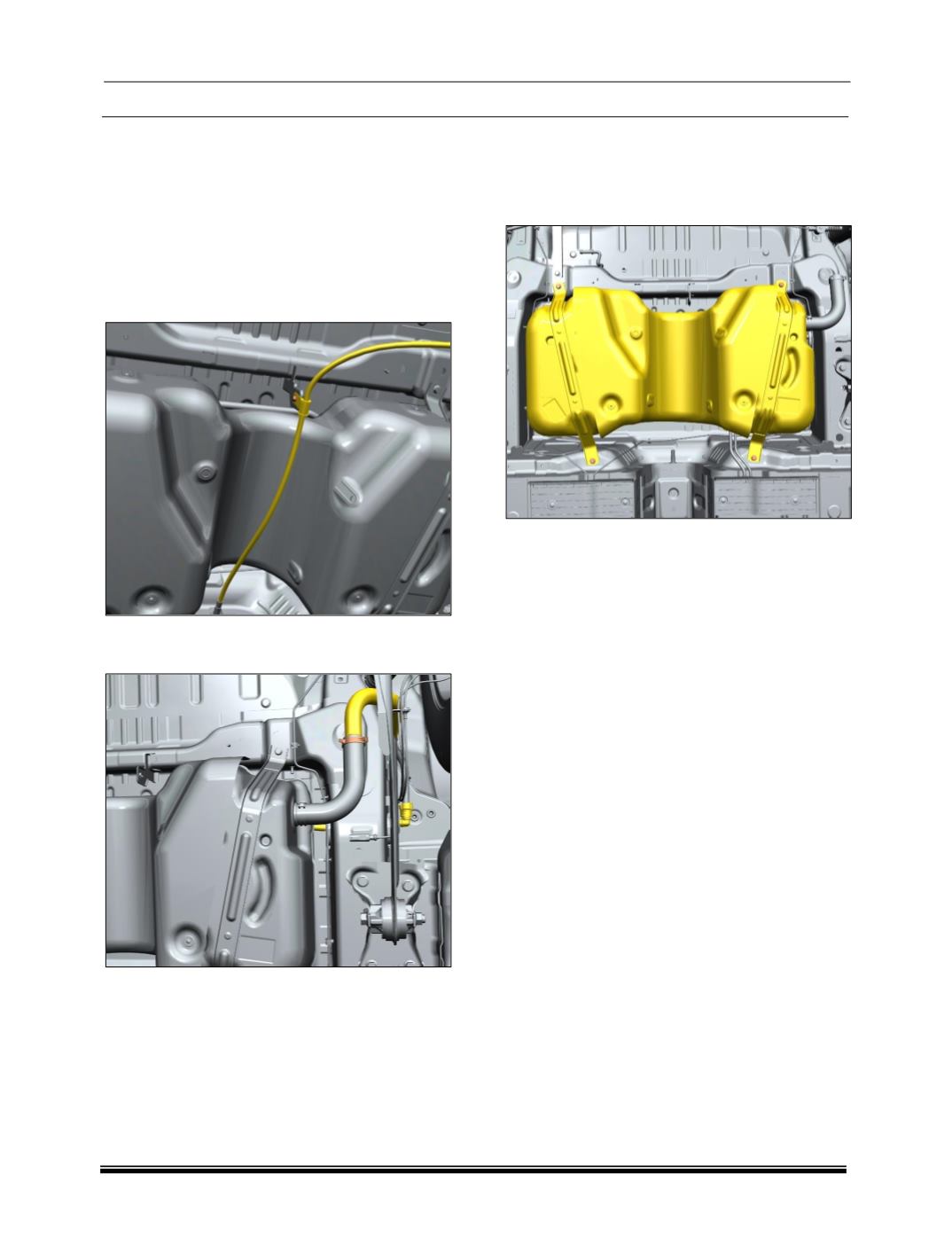

D. FUEL TANK
REMOVAL
1. Relieve fuel pressure in fuel feed line.
2. Disconnect negative cable at battery.
3. Remove Exhaust pipe with main silencer.
(For
removal refer ‘Exhaust Pipe’ removal process).
4. Remove the parking brake cable routed on the
tank’s parking brake clamp.
5. Disconnect the fuel filler hose and breather tube
Quick connector from filler pipe assembly.
6. Support the fuel tank from below.
7.
Remove the four mounting bolts from fuel tank
mounting straps and lower fuel tank gradually
until electrical connector of Fuel Delivery
Module and passive side suction unit can be
reached to disconnect.
8. Disconnect the electrical connections of the in-
tank pump and the fuel lines.
(For removal refer
‘Tank Unit’ removal process).
9. Disconnect electrical connections of the suction
unit.
10.Remove fuel tank from vehicle
NOTE
Make sure breather line quick connector is not
getting stuck up during its removal along with tank.
Seals and gasket not to be reused.
INSPECTION
Check all hoses and pipes connected to fuel
pump for leaks, loose connections,
deterioration or damage. Replace if necessary.
Check fuel pump and passive side suction unit
module gaskets for leaks, cracks etc. Replace
if necessary.
Visually inspect fuel tank for leaks and
damage. Replace if necessary.
FITMENT
For fitment follow removal procedure in reverse.
