KRYOTEC ENGINE
74

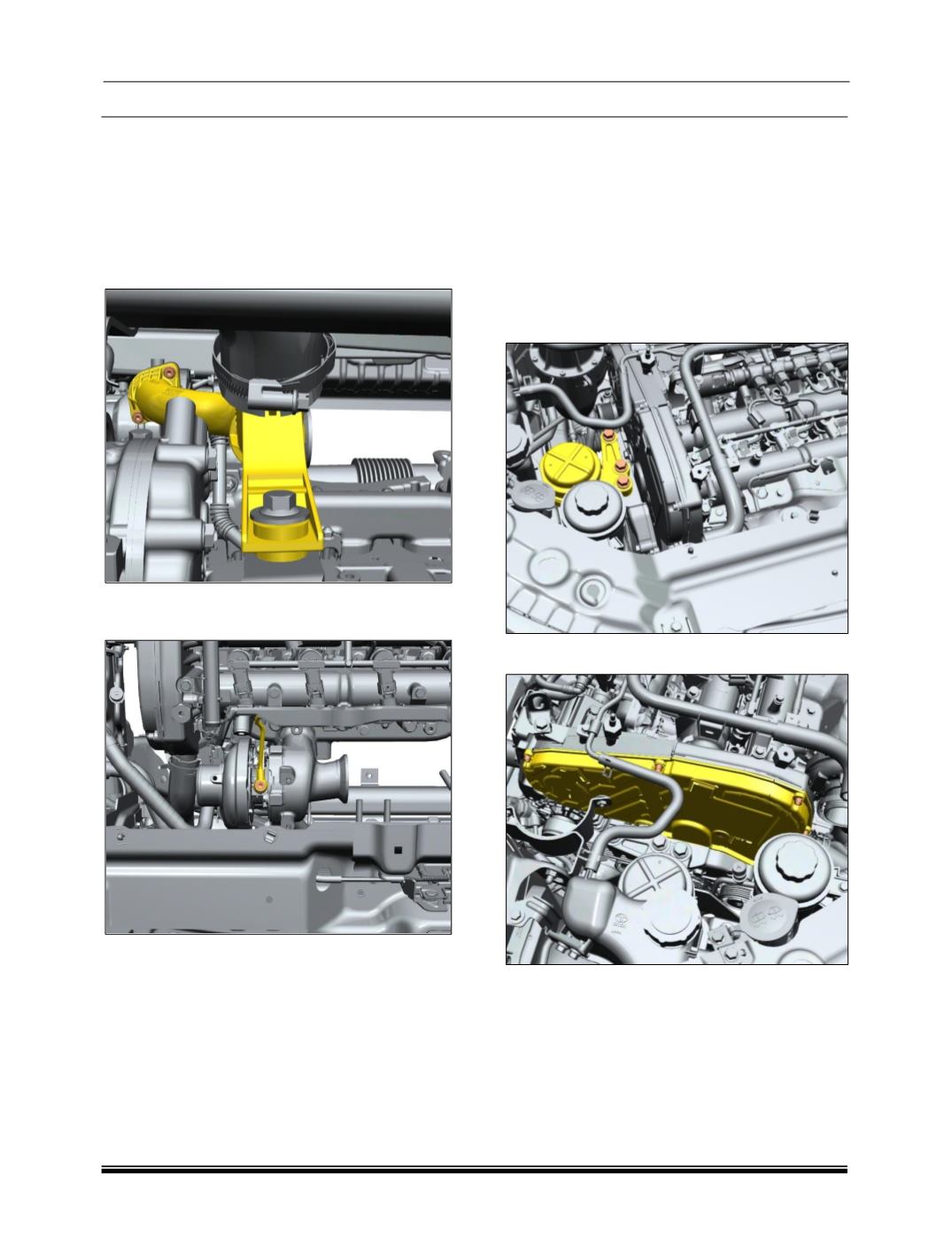

F. TURBOCHARGER
REMOVAL
AND
REFITMENT
REMOVAL
1. Remove the Diesel particulate filter. (Refer
DPF section for removal procedure).
2. Remove mounting screw of turbocharger outlet
pipe and disconnect the pipe.
3. Disconnect turbochargers inlet and outlet oil
lines.
NOTE
Gasket and sealing washers not to be reused.
4. Remove mounting fasteners on the exhaust
manifold and take out the turbocharger.
NOTE
Fasteners not to be reused.
FITMENT
For fitment follow removal procedure in reverse.
G. TIMING BELT REMOVAL AND REFITMENT
1. Remove underbody engine guard.
2. Remove the air filter resonator assembly.
3. Remove engine cover.
4. Remove the auxiliary belt.
(For removal
procedure refer ac compressor and alternator
belt replacement).
5. Support engine Remove ‘A’ mount mounting
bolts.
6. Remove top timing cover.
NOTE
Bolts not to be reused.
