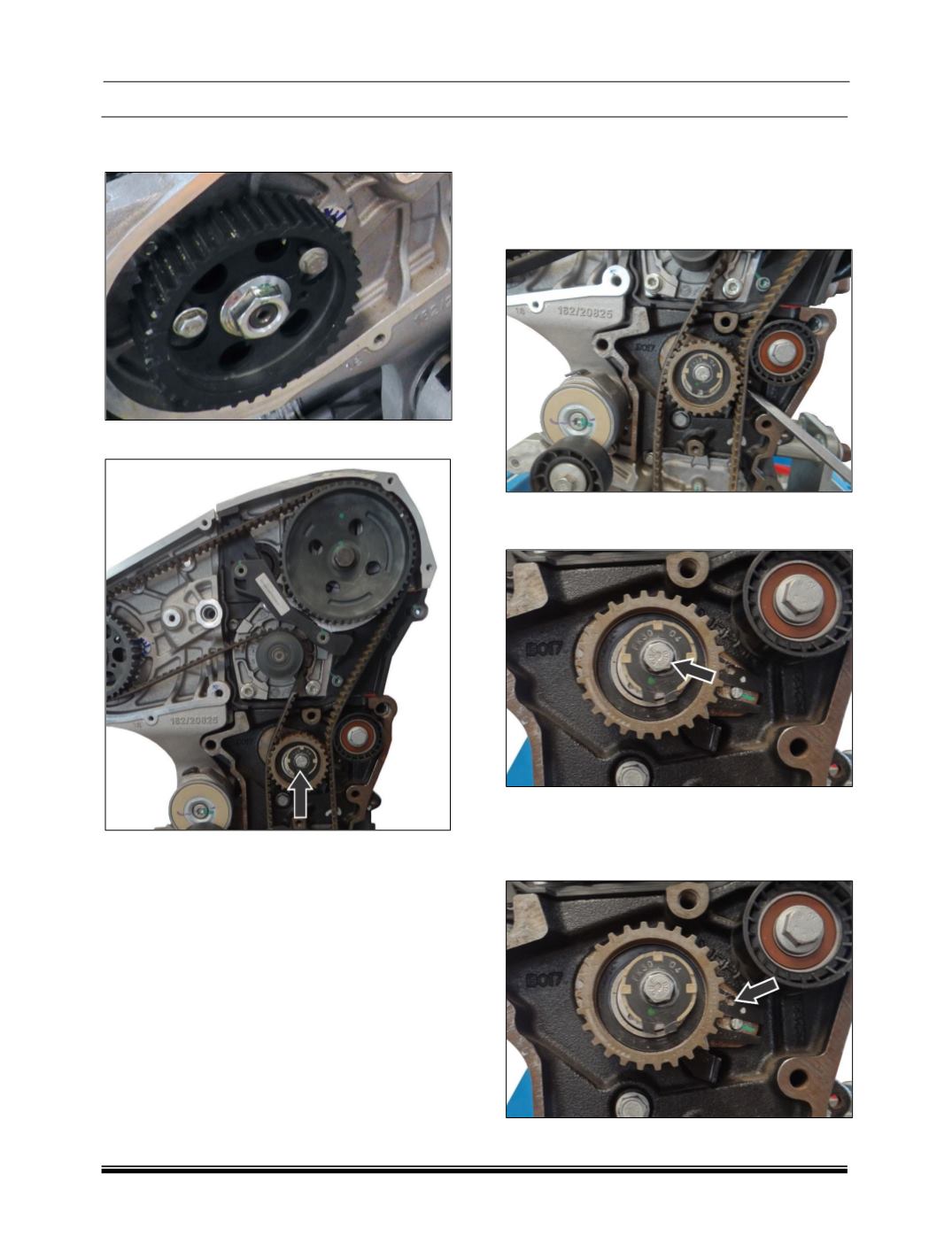

13.Lock the fuel pump gear using standard bolts to

avoid timing resetting.

14.Loosen tension on the belt tensioner.

15.Remove the timing belt.

FITMENT

For fitment follow removal procedure in reverse.

NOTE



Belt has three distinct marking, two on the

groove between teeth and one on belt teeth.



These marking have to be aligned with timing

gears to ensure proper timing.



Two markings on the groove must align with

camshaft and fuel pump gears, one marking on

teeth must align with crankshaft timing gear.



Begin fitment from crankshaft timing gear when

installing the timing belt.

TIMING BELT TENSIONER ADJUSTMENT

PROCEDURE

1. Position the index of the tensioner at the

maximum reference by pressing in upward

direction. In this position tighten the tensioner

bolt.

2. Rotate the crankshaft two complete

revolutions. Loosen the timing tensioner bolt.

3. Use a screwdriver to position the index of the

tensioner at the reference hole. In this position

tighten the tensioner bolt to the proper Torque

Specifications.

Recheck the engine timing using the timing tools.
