KRYOTEC ENGINE
66

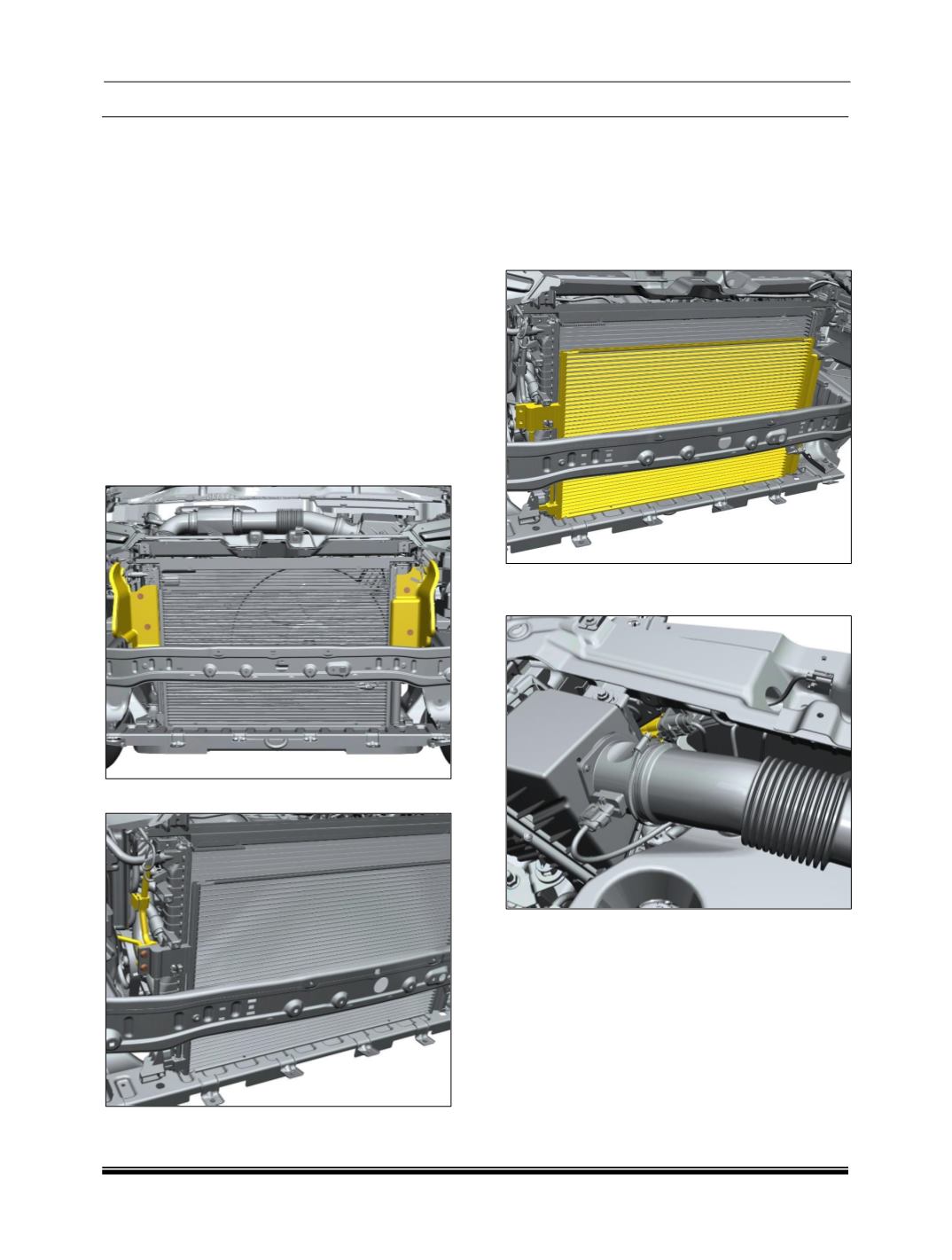

B. RADIATOR
REMOVAL
1. Drain the coolant.
(For procedure refer "Engine
Coolant Replacement" in Engine Maintenance
section).
2. Recover refrigerant from refrigerant lines.
(For
procedure refer HVAC section)
3. Remove the front bumper, front bumper carrier
and front grille.
(For procedure refer front
bumper removal procedure from Body section).
4. Remove intercooler.
(For procedure refer
‘Cooling System’ in Engine On Vehicle section).
5. Remove
Horn
. (For procedure refer Electrical
section).
6. Disconnect the electrical connections of the
cooling fan shroud.
7. Remove radiator sealing foam.
8. Disconnect refrigerant lines to condenser.
CAUTION
Never leave the condenser lines open immediately
cover them with caps, otherwise the desiccant
which is in-built in the condenser may absorb the
moisture from surrounding air and get
contaminated.
9. Remove the condenser assembly.
10.Disconnect electrical connection to the fan
shroud assembly.
