Q501 4 Cylinder MT Application
DTC Troubleshooting Data
Version: 0.1
Date: 21-Sep-2018
Prepared By: Mithi Prasad, Sarang Kulkarni, Manish Gupta
Checked By: Yogesh Jadhav
Approved By: Satish Kumar P
Page: 634 of 1052
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
Component Location & Image:-

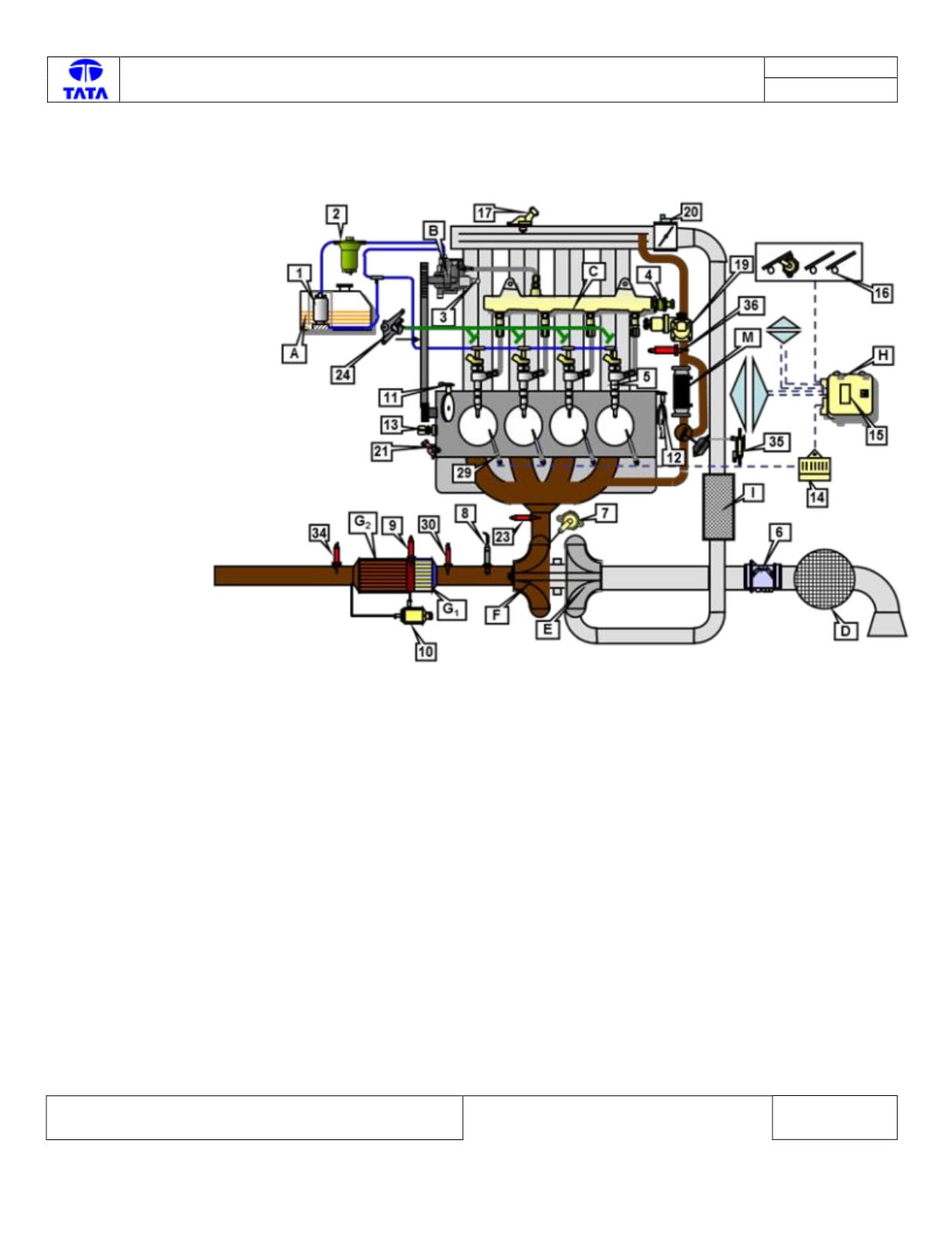

In the above top view of Engine Lay-out, Component 23 is Exhaust Manifold Temperature Sensor – T3, 9 is Inlet DPF
temperature sensor, 30 is inlet CAT temp Sensor and 34 is Outlet DPF temperature sensor.
Connector View & Information – Component Side:
Not available.
Connector View & Information – WH Side:
T6 Sensor:
