Transponder & CAN based Immobilizer (Continental)
Part Replacement handling – Service Documentation
TITLE
: Immobilizer (Conti) Service Manual-Aria Eagle
xxxx
Date
: 28-08-2015
Version
: 0.1
Page
:
6 of 25
Prepared :
Amanulla Bugga
Approved: Dinesh G Dodmane
This specification is the exclusive property of Tata Motors Limited. Without their consent it may not be
reproduced or given to third parties
.
The above specifications are subject to change and therefore
suppliers are requested to refer the latest one.
CONTROLLED COPY FOR RESTRICTED CIRCULATION

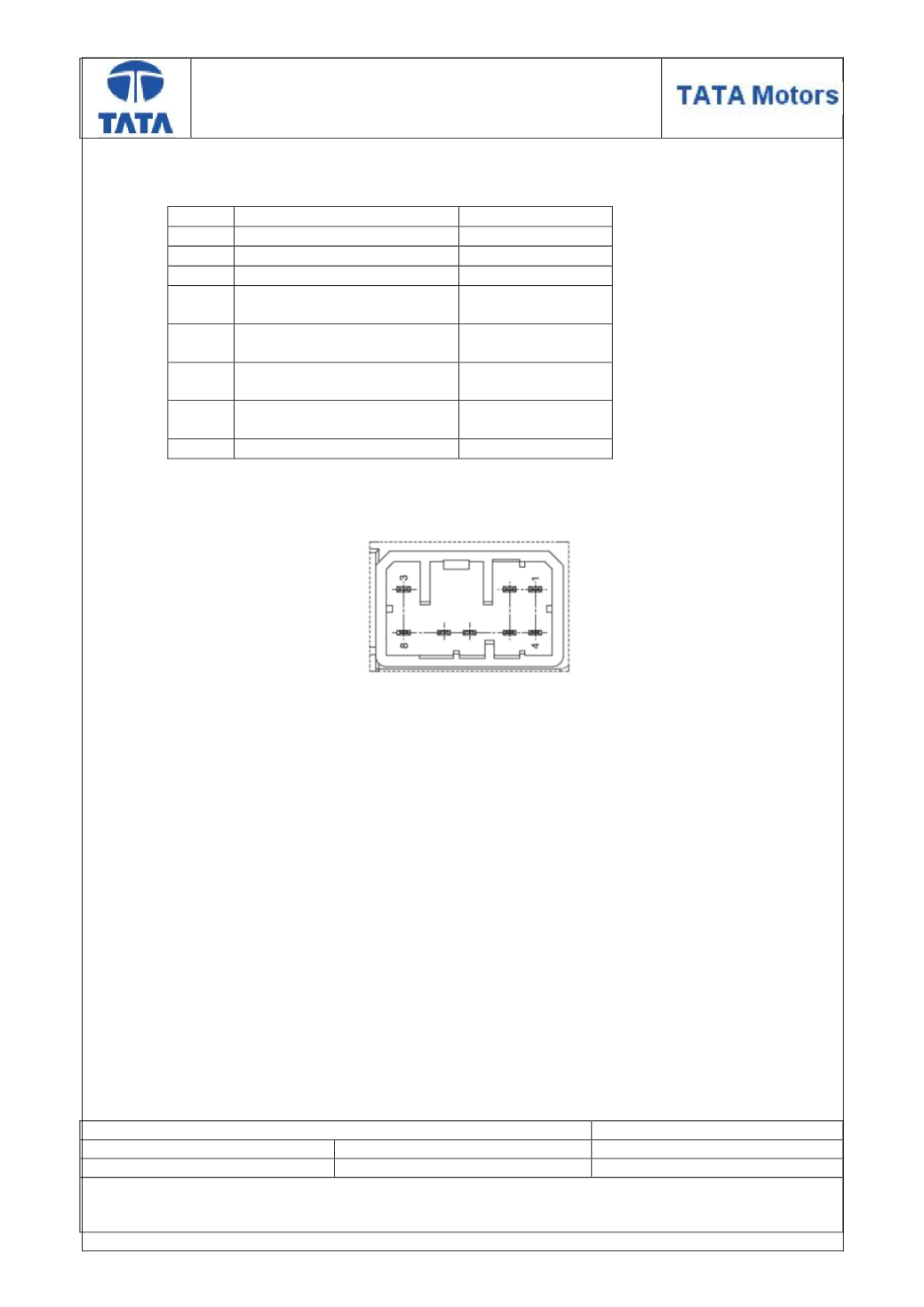

1.3.
Immobilizer Connector & Pin out details:
Pin # Signal name
I/O
1
+Vbatt
Power
2
Gnd
Power
3
CAN_H
communication
4
+Ign
Input
(Active High)
5
Status LED
Output
(Active Low)
6
Key Illumination (from BCM)
Power
(Active Low)
7
Transport Mode
Input
(Active High)
8
CAN_L
communication
