Q501 4 Cylinder MT Application
DTC Troubleshooting Data
Version: 0.1
Date: 21-Sep-2018
Prepared By: Mithi Prasad, Sarang Kulkarni, Manish Gupta
Checked By: Yogesh Jadhav
Approved By: Satish Kumar P
Page: 445 of 1052
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

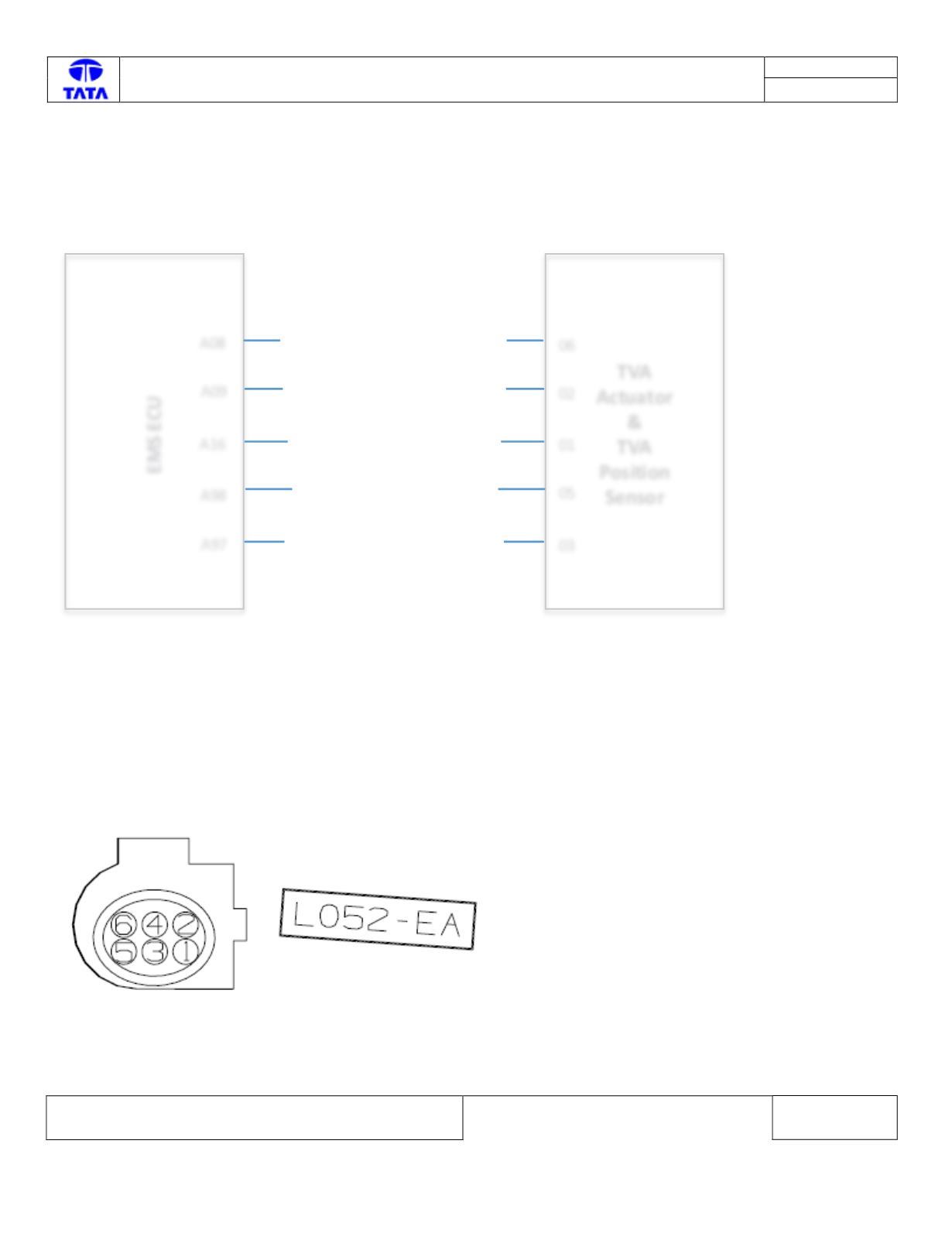

Circuit Schematic:
EMS ECU
Throttle Plate Actuator Motor (-)
A09
TVA
Actuator
&
TVA
Position
Sensor
02
Throttle Position Sensor Supply
A16
01
Throttle Plate Feedback Signal
A98
05
Throttle Position Sensor Ground
A97
03
Throttle Plate Actuator Motor (+)
A08
06
Component Location & Image:-
NA
Connector View & Information: -
