SRS / Airbag
ECU – DTC Troubleshooting Guide
Version: 14.0
Date: 14-February-2017
Prepared by:Airbag COC Review &
Approved by:Sanjeev VM
Page: 479 of 549
Connector View & Information:-

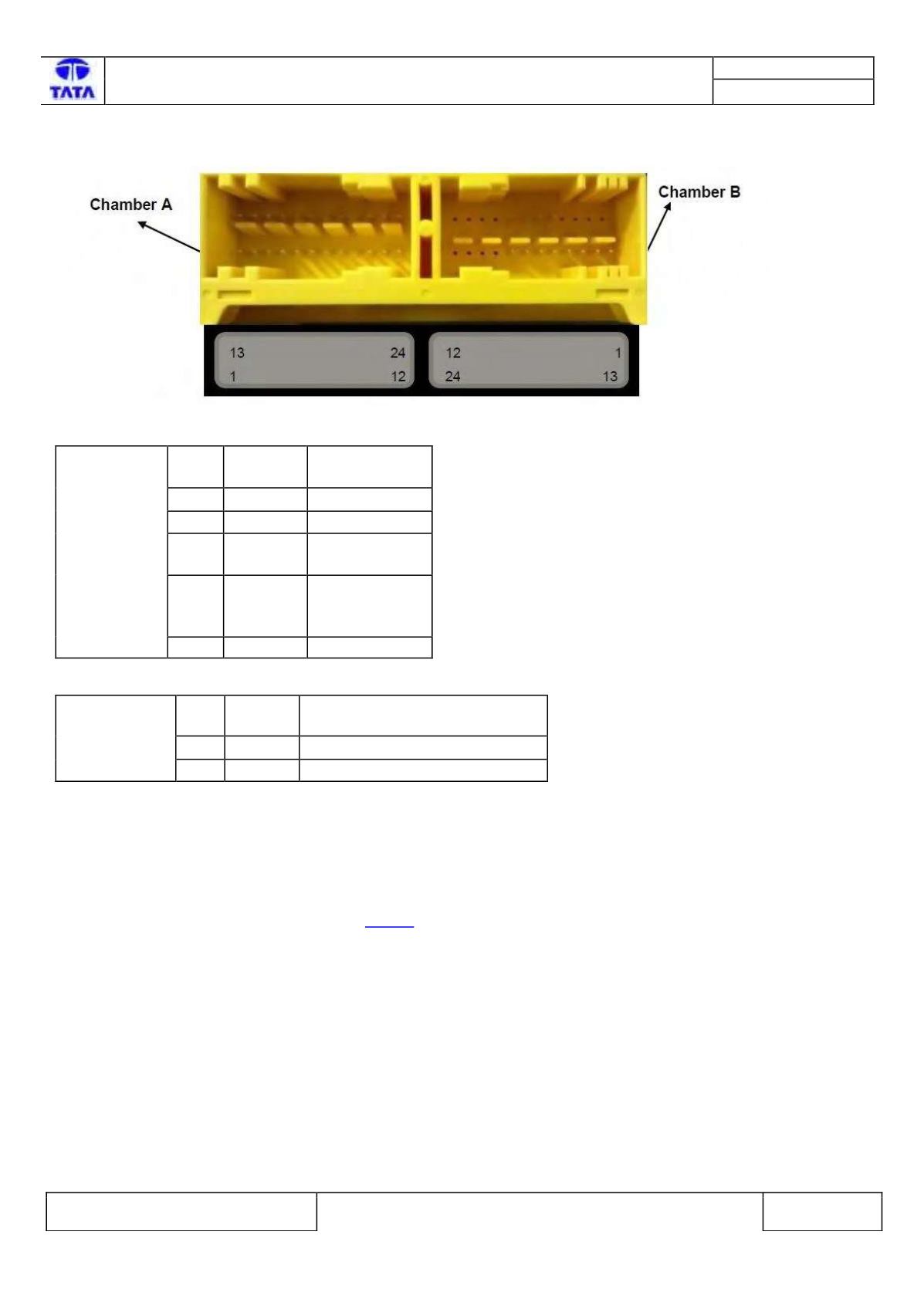

Fig439:- Airbag ECU connector interface.
CHAMBER A Pin
No.
Pin
Name
Description
1 CAN_H CAN High
2 CAN_L CAN Low
7 A_GND Common
Switch GND
12 V bat Supply
Voltage
Battery
23 GND Power GND
Please refer Airbag ECU Pin Assignment on or more details.
Inspection Method: - N.A
CHAMBER B Pin
No.
Pin
Name
Description
17 ABLC- Left Curtain Passenger, Minus
18 ABLC+ Left Curtain Passenger, Plus
