SRS / Airbag
ECU – DTC Troubleshooting Guide
Version: 14.0
Date: 14-February-2017
Prepared by:Airbag COC Review &
Approved by:Sanjeev VM
Page: 483 of 549
Connector Location:-

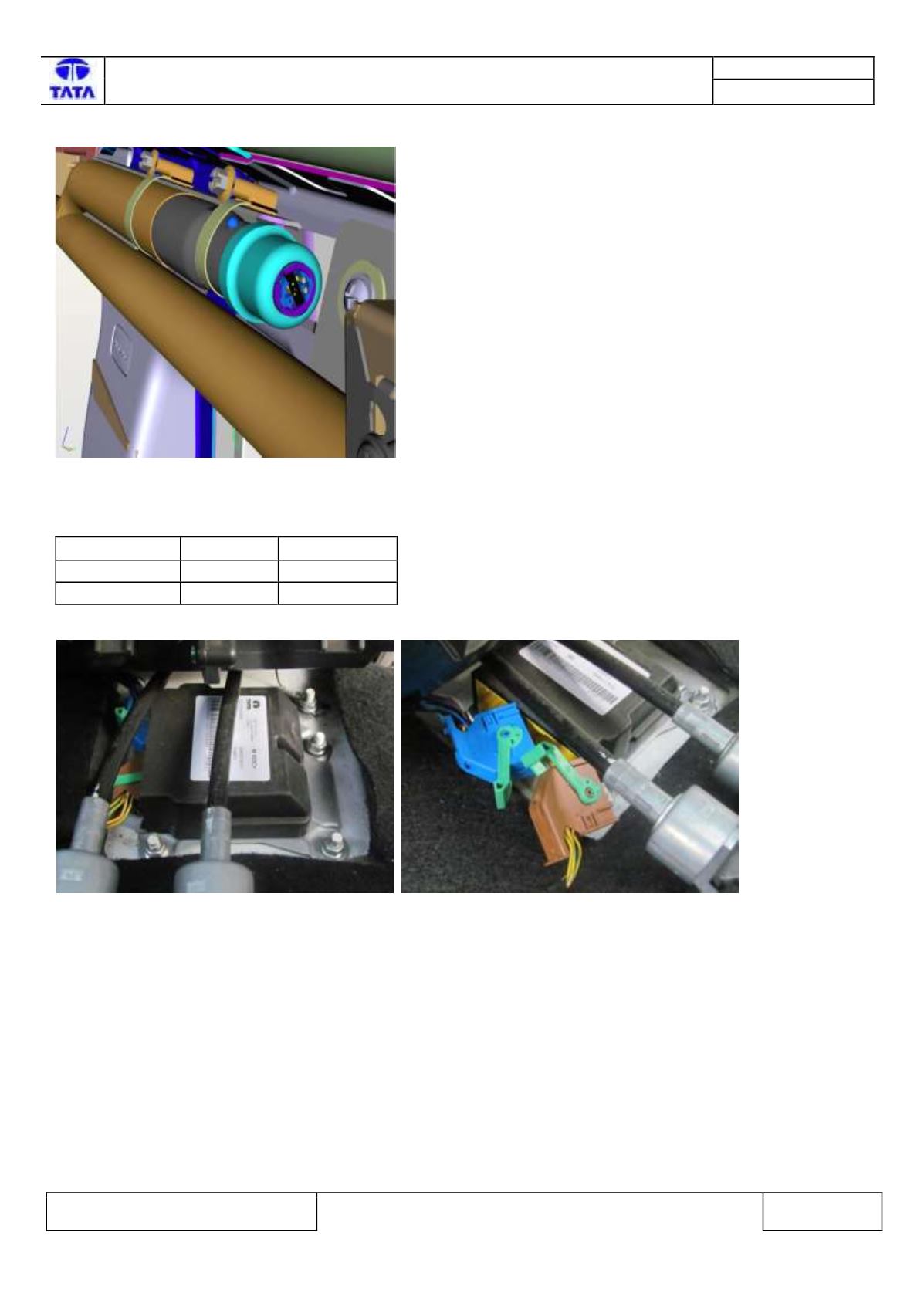

Fig 441: right curtain connector
The Chamber Coding & color are:
Chamber
Coding
Color
Chamber A
D
Blue
Chamber B
C
Brown
Connector View & Information:-
Airbag ECU is fitted in the floor of central console in the car.
.
Fig:442 Airbag ECU location Fig:443 Airbag Wiring Harness connector
