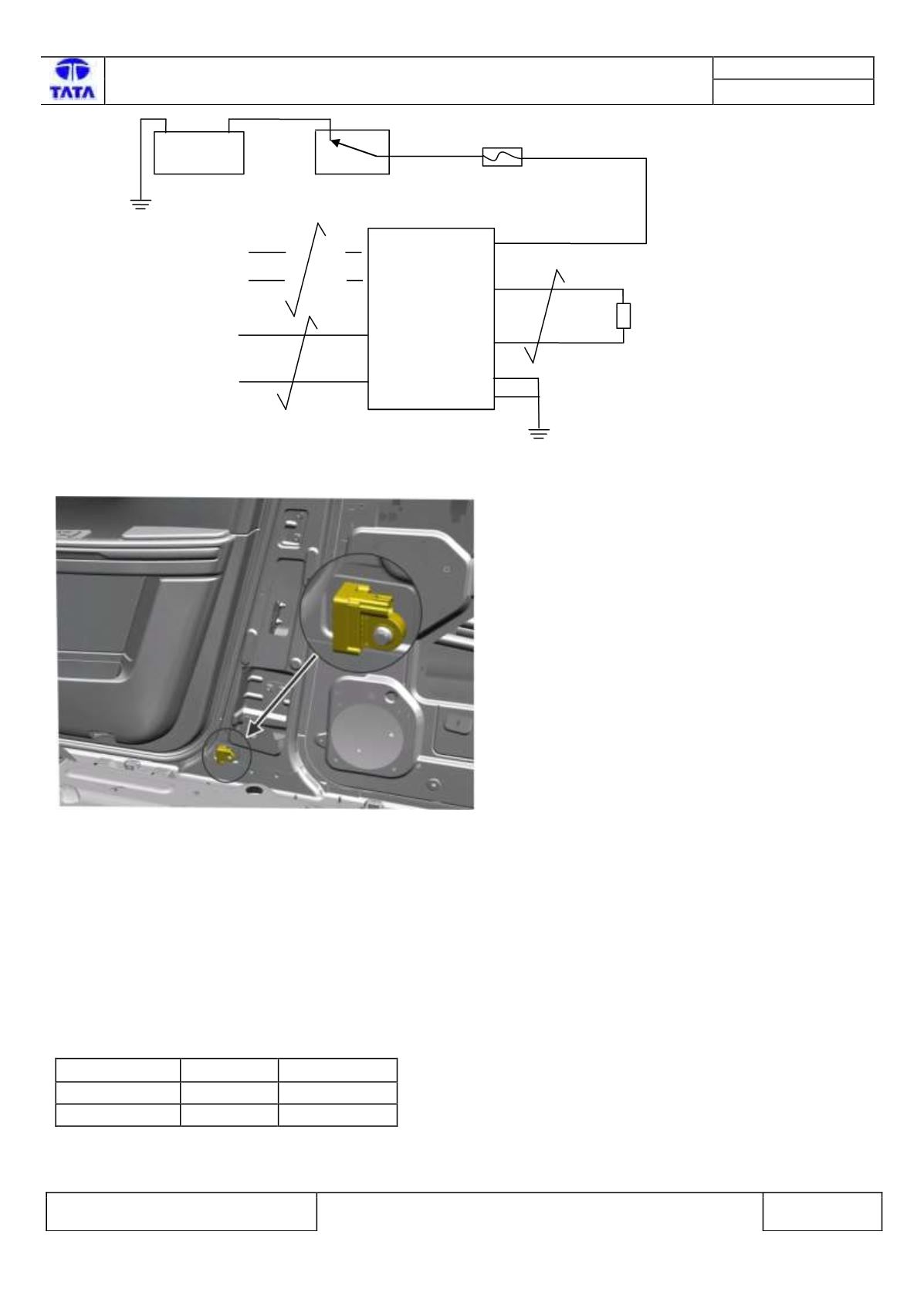

Component Location & Image:-
Fig:371: Driver side peripheral sensor
Connector Location:-
The Chamber Coding & color are:
Chamber
Coding
Color
Chamber A
D
Blue
Chamber B
C
Brown
+
V
12
Battery
A23
CAN H
Ignition Sw itch
CAN L
A12
A7
-
RESTRAINTS
CONTROL
MODULE
A1
A2
Fuse 10A
B9
DSPS+
V bat
B10
DSPS-
Driver Side
Peripheral Sensor
