Connector View & Information:-

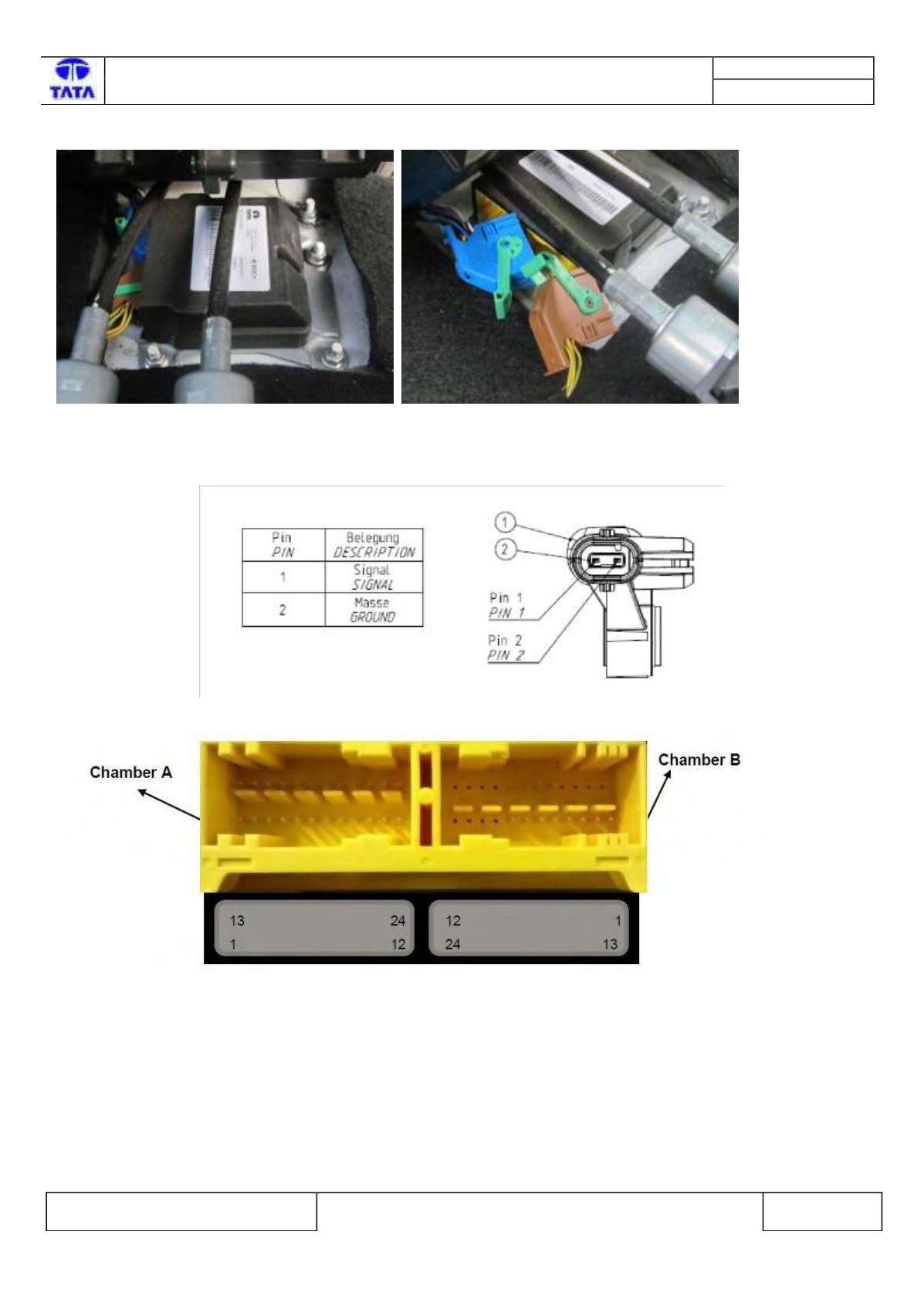

Fig379:- Airbag ECU connector interface.
Airbag ECU is fitted in the floor of central console in the car.
.
Fig:377 Airbag ECU location Fig:378 Airbag Wiring Harness connector
