SRS / Airbag
ECU – DTC Troubleshooting Guide
Version: 14.0
Date: 14-February-2017
Prepared by:Airbag COC Review &
Approved by:Sanjeev VM
Page: 398 of 549

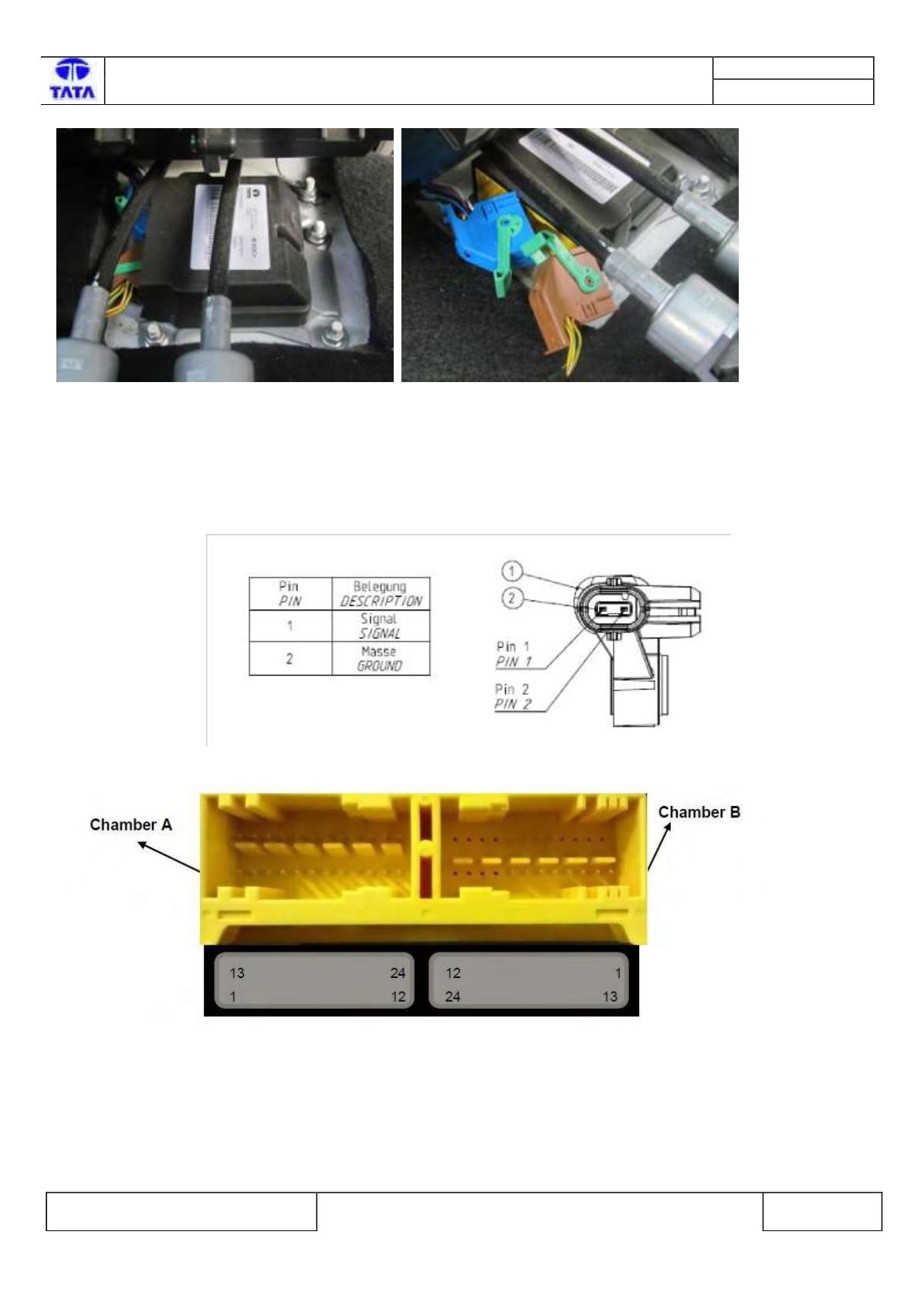

Connector View & Information:-
.
Fig359:- Driver side peripheral sensor connector view
Fig360:- Airbag ECU connector interface.
Airbag ECU is fitted in the floor of central console in the car.
.
Fig:357 Airbag ECU location Fig:358 Airbag Wiring Harness connector
