SRS / Airbag

ECU – DTC Troubleshooting Guide

Version: 14.0

Date: 14-February-2017

Prepared by:Airbag COC Review &

Approved by:Sanjeev VM

Page: 374 of 549

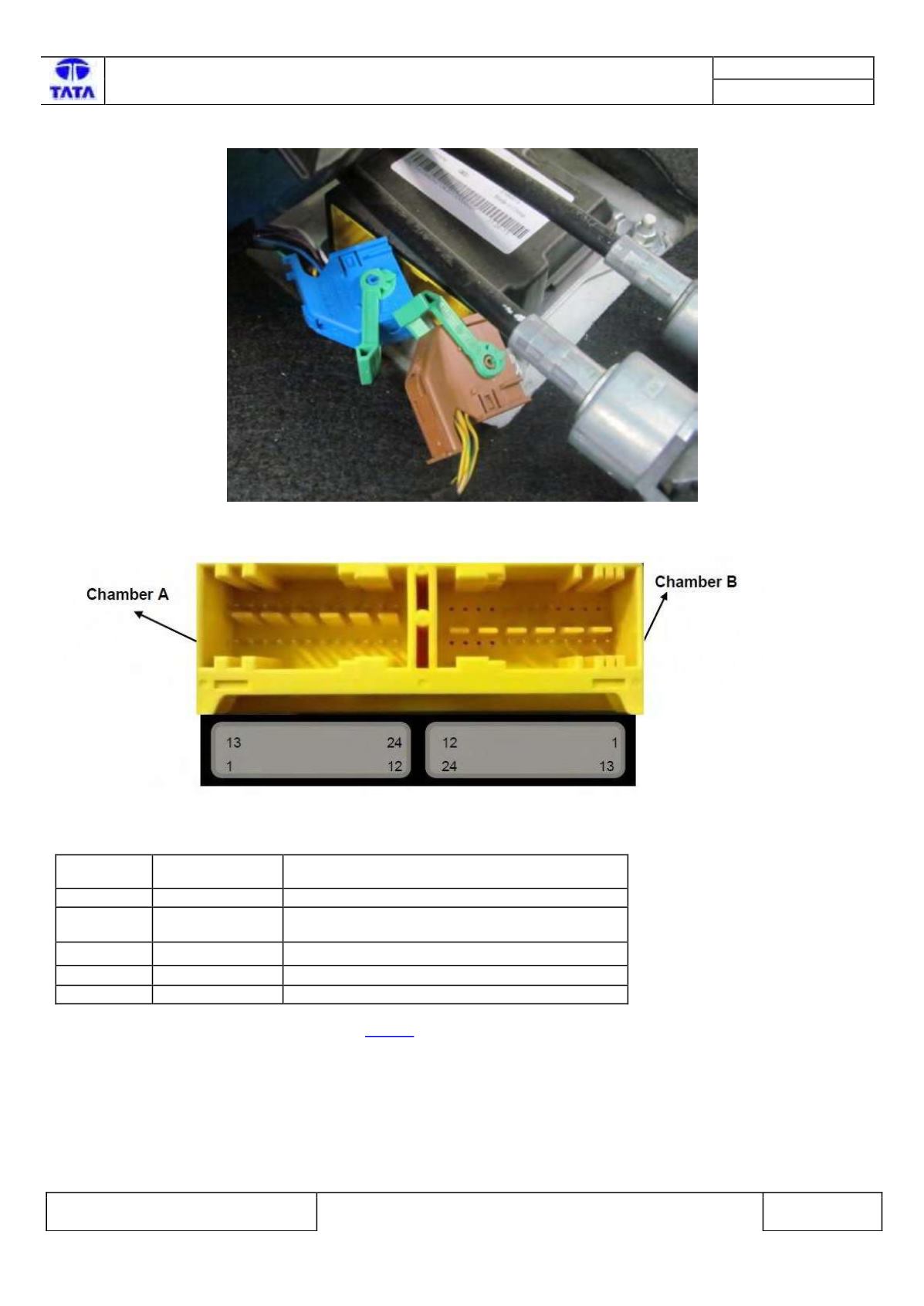

SRS ECU Connector View & Information:-

Fig334:- Airbag Wiring Harness connector view.

Fig335:- Airbag ECU connector interface.

Pin No.

Pin Name

Description

CAN_H

CAN High

CAN_L

CAN Low

Ign

Ignition

12.31

Vbat

Supply Voltage Battery

9, 28

GND

Battery GND

Please refer Airbag ECU Pin Assignment on

or more details.

Inspection Method: -

N.A.
