SRS / Airbag
ECU – DTC Troubleshooting Guide
Version: 14.0
Date: 14-February-2017
Prepared by:Airbag COC Review &
Approved by:Sanjeev VM
Page: 255 of 549
Ignition ON
d) Ensure the Airbag Warning Lamp Indication goes OFF after
4 seconds
from Ignition ON.

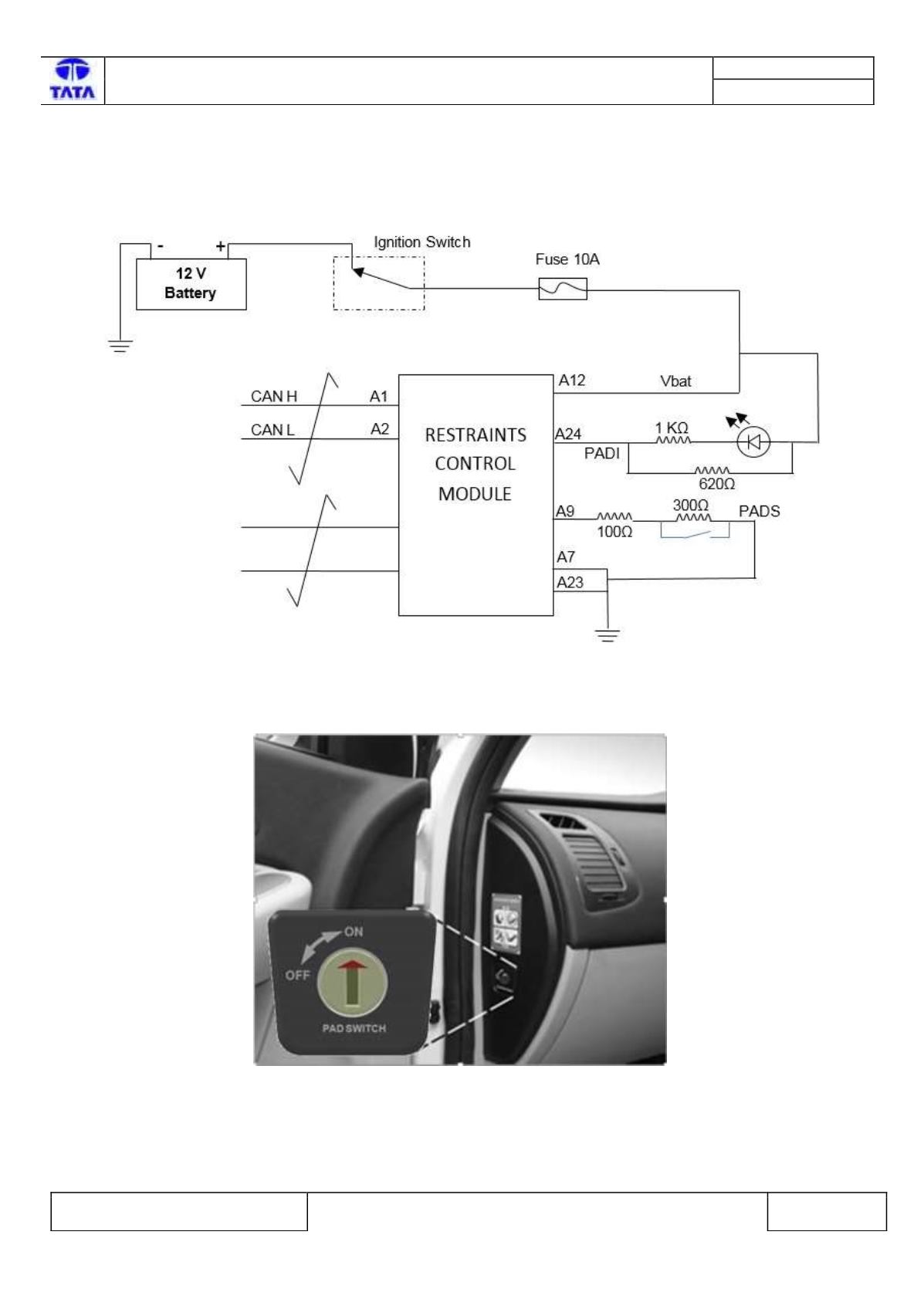

Circuit Schematic Diagram:-
Schematic shown below for illustration
Battery>>>>>Fuse>>>>Relay>>>>>>>Sensor/Actuator>>>>>ECU
Component Location & Image:-
Passenger Airbag Deactivation switch (PADS) is provided on the left side of the dash board.
Fig234:- Passenger Airbag Deactivation switch (PADS)
Connector Location:-
The Chamber Coding & color are:
