SRS / Airbag
ECU – DTC Troubleshooting Guide
Version: 14.0
Date: 14-February-2017
Prepared by:Airbag COC Review &
Approved by:Sanjeev VM
Page: 124 of 549

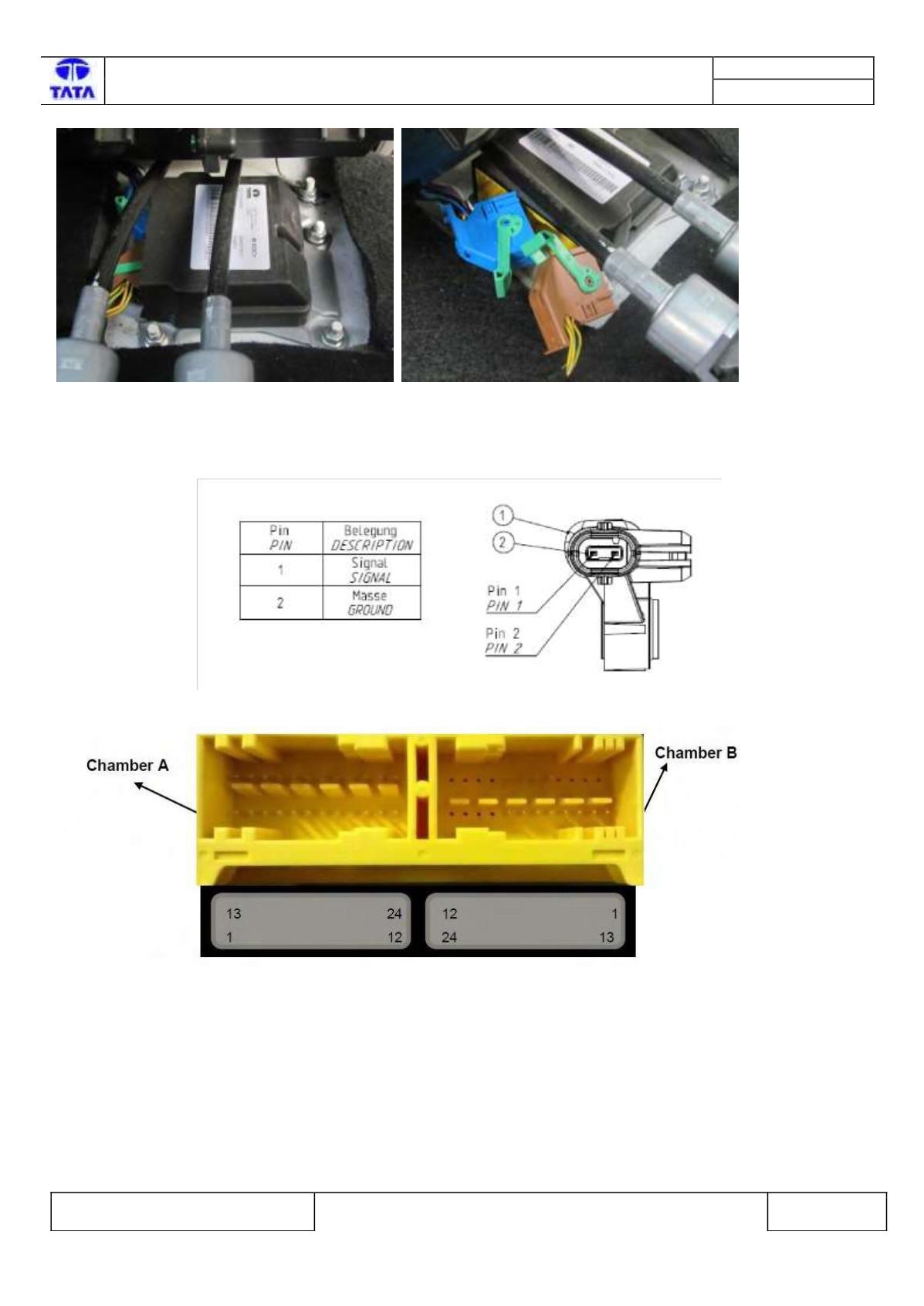

Connector View & Information:-
Fig121:- Frontal Impact Driver Sensor connector view.
Fig122:- Airbag ECU connector interface.
Airbag ECU is fitted in the floor of central console in the car.
.
Fig:119 Airbag ECU location Fig:120 Airbag Wiring Harness connector
